Spacio Innovations WEXSTAR EWT-009 User Manual

Programmable Thermostat Wi-Fi
User Manual
Ⅰ. Technical Data
1. Power Supply: AC100~120V 50/60Hz
2. Maximum load: USA 1440W/12A
3. Wireless standard: IEEE802.11b/g/n
4. Frequency range: 2.412~2.484GHz
5.Security mechanism: WEP/ WPA-PSK/ WPA2-PSK
6. Encryption type: WEP/TKIP/AES
7. Standby power consumption: <0.8W
8. Working environment: temperature -5~50° C;
humidity 10% -95%
9. Size: L110mm*W56mm*H78mm
10. Unit net weight: 130g
Ⅱ. Product Description

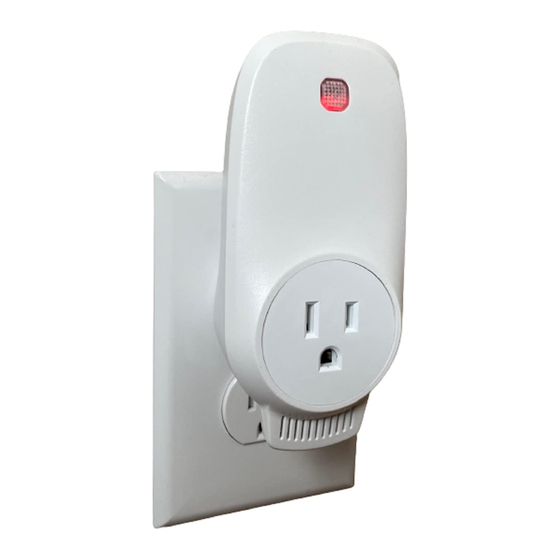

This Programmable Thermostat Wi-Fi can be used with
Wexstar heaters, to be controlled by mobile phone,
function includes:
● WIFI remote control
● Adjust temperature
● Weekly programmable
● Count down
● Group control
● Share to other users
Ⅲ. WIFI Pair Instructions
1. Connect your phone to WIFI（2.4GHz network ).
2. Scan and install below Smart Life APP, and Register
an account.
Smart Life App Icon
3. Plug the Programmable Thermostat Wi-Fi into a
socket and hold the button 5-10 seconds UNTIL the
indicator is blinking.
NOTE: same operation needed when WiFi hotspot changed,
WiFi password changed, or cell phone changed.
4. Click Smart Life App to enter main interface, select
room name and click "Add Device" or the upper
○ +
right corner " " icon.
A pop-up window
appears as below picture.
Click "Go to add". In next page click "
5.
Bluetooth device, and a Enter Wi-Fi Password
dialog will pop-up as following.
6. Enter Wi-Fi password, click"Confirm"，It will
automatically enter the next step for Wi-Fi
connection. The device will be added successfully
after waiting for 20-30 seconds. And meantime the
red indicator on the thermostat lights up. You can
name this device, e.g. "Infrared panel heater".
Note: If the connection is timed out in Step 6, please
unplug the Thermostat Wi-Fi from power socket for
10 seconds, and then Repeat Step 3-6.
○ +
" to add a
Back to main
interface
Device Status
Power On/Off
Weekly programming
Device Name
Edit device
Temperature
Setting
°C/°F Converter
Countdown
