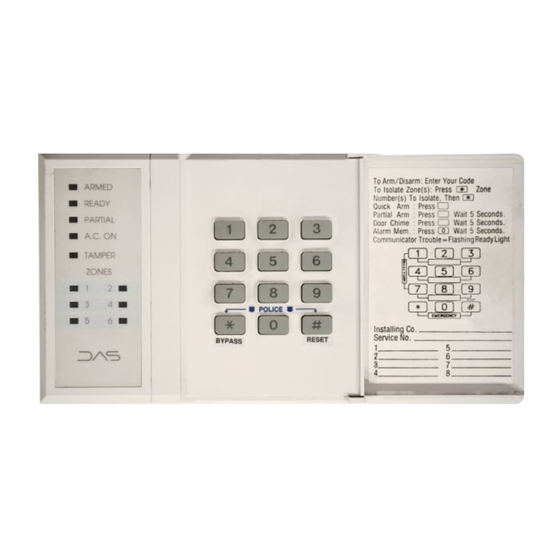

DL150
DOWNLOADABLE CONTROL COMMUNICATOR
INSTALLATION MANUAL

TABLE OF CONTENTS

1. GENERAL DESCRIPTION ............................................................................................ 2
2. STANDARD AND OPTIONAL PARTS LIST ................................................................ 2
3. FEATURE DEFINITIONS .............................................................................................. 3
4. TERMINAL DRAWING AND SPECIAL NOTES ........................................................... 4
5. TERMINAL DESCRIPTION ........................................................................................... 5
6. FUSE DESCRIPTION .................................................................................................... 6
7. PROGRAMMING PROCEDURES & EXAMPLES ...................................................6 - 7
8. USERS 1-15 ARM / DISARM CODE ENABLING.......................................................... 8
9. COMMUNICATOR CODES...................................................................................13 - 17
10. TIMING OPTIONS ...............................................................................................17 - 18
11. AVAILABLE ZONE TYPES......................................................................................... 20
12. AVAILABLE ZONE CHARACTERISTICS...........................................................20 - 21
13. PROGRAMMING THE AUXILIARY OUTPUTS..................................................24 - 26
14. CALENDER / CLOCK PROGRAMMING ............................................................28 - 29
15. PROGRAMMING WORKSHEETS......................................................................30 - 35
16. APPENDIX 1& 2...................................................................................................36 - 37
17. SPECIFICATIONS & WARRANTY ........................................................................... 38
DIRECT ALARM SUPPLIES CONDELL PARK NSW
SERVICE / TECHNICAL (02) 97092811 OR 1 800 252213

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL150 and is the answer not in the manual?

Questions and answers

Summary of Contents for DIRECT ALARM SUPPLIES DL150

  • Page 1: Table Of Contents

    14. CALENDER / CLOCK PROGRAMMING ............28 - 29 15. PROGRAMMING WORKSHEETS..............30 - 35 16. APPENDIX 1& 2....................36 - 37 17. SPECIFICATIONS & WARRANTY ................38 DIRECT ALARM SUPPLIES CONDELL PARK NSW SERVICE / TECHNICAL (02) 97092811 OR 1 800 252213...

  • Page 2: General Description

    Read the USER’S MANUAL before you begin the installation for the best overall description of how the DL150 functions. After installation of the security system, complete the information on page 1 of the users manual and explain the system operation to all security system owners/operators.

  • Page 3: Feature Definitions

    The DL150 has the ability to defeat an answering machine to receive a call for up/downloading. Auto Arming If programmed, the DL150 will automatically arm the system at a specific time, if it has not already been armed by a system user.

  • Page 4: Terminal Drawing And Special Notes

    TERMINAL DRAWING & SPECIAL NOTES...

  • Page 5: Terminal Description

    TERMINAL DESCRIPTION TERMINAL NO. DESCRIPTION AUX OUTPUTS Programmable Auxiliary Output Terminal. Current limited to 250 mA positive and 200 mA negative. This Auxiliary output is normally used to connect the negative lead of the strobe. The positive lead of the strobe can be connected to any of the positive terminals. 2 - 4 This Auxiliary output is normally used to connect the negative lead of the siren or screamer.

  • Page 6: Fuse Description

    FS4623 LED Code Pad is used for programming, enter the factory default four digit "Go To Program" access code of [9] [7] [1] [3]. NOTE: The DL150 must be disarmed to gain access to programming with this code. After entry of this code, the DL150 will be in the "Program"...

  • Page 8: Users 1-15 Arm / Disarm Code Enabling

    Locations 060-063 contain the "Go To Program" access code. Location 060 contains the first digit of the code and location 063 contains the fourth digit of the code. THE CODE MUST CONTAIN FOUR (4) DIGITS. With the DL150 disarmed, the "Go To Program"...
  • Page 9 Consult the instructions for your central station receiver to determine which format is compatible. Select a format from the 14 listed above. If this location contains a "0", the built-in communicator will be disabled, and the DL150 will function as a local only control.
  • Page 10 LOCATIONS 085-100: SECONDARY PHONE NUMBER Phone # 2 is programmed in successive locations beginning with location 085. Delays of four seconds can be programmed at any point in the phone number by programming a "13" in the appropriate location. If tone dialling is desired, program a "15"...
  • Page 11 Location 130 contains the number of calls the DL150 must detect before accepting the Number of Rings programmed in location 129). A call is satisfied by the DL150 detecting one (1) or more rings per call and then a 8 second period with no ring.
  • Page 12 LOCATION 136: RING DETECT ADJUST Programming a "6" thru "12" in location 136 may assist, if difficulties are experienced with the DL150 answering an incoming call. This will make the ring detect window wider so that a greater number of exchange types and ring frequencies can be catered for.
  • Page 13 LOCATION 139: FAILED DIAL ATTEMPT COUNTER The number programmed in location 139 (1 to 15) will represent the number of failed dial attempts made by the DL150 before the action programmed in location 137 is activated. Factory default is "0" and this feature is not enabled. This feature can be used with a normally silent alarm activation that may require an audible action after a number of failed dial attempts.
  • Page 14 LOCATION 168-169: PROGRAMMING FOR CODE PAD PANIC, [¬ ¬ ] & [#] DOUBLE KEYPRESS The DL150 has the ability to report a Code Pad Panic code and activate the Burg siren each time the [¬] and [#] keys are pressed simultaneously on the code pad. The desired Code Pad Panic code is programmed in locations 168-169. Location 168 contains the event code, and location 169 contains the point number.
  • Page 15 LOCATIONS 176-177: FAIL TO COMMUNICATE COMMUNICATOR CODES The DL150 has the ability to report a Fail To Communicate code to the base station if a report fails to get through to the base in its pre-determined number of dial attempts. After a report has failed to communicate to the base station the DL150 will store a Fail To Communicate code.
  • Page 16 LOCATIONS 184-185: AC POWER FAIL COMMUNICATOR CODES The DL150 has the ability to report an AC Power Loss code to the base station after the power has been off for a selected number of minutes from 0 to 15 (see location 241). The desired communicator code must be programmed into these locations.

  • Page 17: Timing Options

    LOCATION 194: PROGRAMMING TO REPORT CLOSING The DL150 has the ability to report a Closing code each time the control is armed. Program a "1" in this location to enable this report. When using a one button "Quick Arm" code, user number 14 is reported. When reporting "Auto Arm", user number 13 is reported.
  • Page 18 134, the communicator will only report once per zone during each arming cycle. VALUE DESCRIPTION UNLIMITED SIRENS LIMITED SIREN TO ONCE PER ZONE 2-15 THE NUMBER OF SIREN ATTEMPTS THE DL150 CAN MAKE AFTER A ZONE HAS MADE ITS OWN SIREN ATTEMPT...

  • Page 19: Communicator Codes

    12 volt siren outputs will pulse for a single 50 mS burst, when the DL150 is disarmed. The speaker output will also pulse two 50 mS bursts when the DL150 is armed. If a "2" is programmed in this location, the strobe output will flash for a single 2-second burst when the DL150 is disarmed, and pulse two 2-second bursts when the DL150 is armed.

  • Page 20: Available Zone Types

    INSTANT - Produces an instant alarm if tripped when armed. Ignored when disarmed. "7" 24 HOUR SILENT - A trip on a 24 hour silent zone will communicate to the central station when the DL150 is armed or disarmed, but not activate sirens.
  • Page 21 If a single trip on a Twin Trip zone was initiated, an alarm would only occur if any other zone has been in alarm, is still in alarm, or any other zone is tripped within the delay time set in location 200. The DL150 may have a combination of an audible alarm or code pad sounder after the first trip, but before the second trip.
  • Page 22 Full Mode, will check for a break of an entry/exit zone during the exit period. If a break occurs, the DL150 will arm in the Full Arm Mode. If no break is detected, the DL150 will arm in the Partial Mode. A "0" in this location will disable this feature.
  • Page 23 240 If a "4" is programmed in this location, the DL150 will inhibit arming with a low or lost battery. Factory default is "0" and Dynamic Battery Test will be performed at disarming for the period programmed in location 240.

  • Page 24: Programming The Auxiliary Outputs

    LOCATIONS 244-255: PROGRAMMING THE AUXILIARY OUTPUT OPTIONS Locations 244-255 control the output options for the four auxiliary outputs. Each of the four outputs have three individual programming locations that will be referred to in this section as DATA 1, DATA 2, and DATA 3. There are 60 events or conditions that can be programmed to activate these four auxiliary outputs.
  • Page 25 DATA 2 DATA 3 DESCRIPTION OF EVENT CATEGORY EVENT "1" "0" Activation of "PRIORITY (FIRE) SIREN" "1" Activation of "BURGLARY SIREN" "2" "ANY SIREN" "3" "ARMED WITH ISOLATED ZONE(S)" (NO LATCHING OPTION) "4" "ALARM MEMORY" "5" "LOW BATTERY" "6" "ENTRY DELAY TIME" "7"...
  • Page 26 LOCATION 264: AUXILIARY OUTPUT INVERSION The auxiliary outputs of the DL150 are normally POSITIVE (+) going NEGATIVE (-). They can be changed to a normally NEGATIVE (-) going POSITIVE (+) by programming the appropriate number in this location. Auxiliary Output 1 has a value of "1", Auxiliary Output 2 has a value of "2", Auxiliary Output 3 has a value of "4", and Auxiliary Output 4 has a value of "8".
  • Page 27 If the sounder is still on at the end of the 50 seconds, the control will arm. Any zones not secure will be isolated when Automatic Arming is used. If open/close reports are enabled, the DL150 will report user code "13" closing when it Auto Arms.

  • Page 28: Calender / Clock Programming

    LOCATION 276: WEEKLY OR DAILY AUTO TEST ENABLE Location 276 is used to select the day of the week in which an Autotest report will occur or a daily Autotest. Program a number from 1 (Sunday) to 7 (Saturday) or 8 (daily) for the day of the week or for a daily Autotest. The test will be performed at the hour specified in locations 272-275.
  • Page 29 LOCATIONS 000-015: CONTROL PANEL ACCESS CODE Locations 000-015 contain the eight-digit access code the DL150 must receive from the downloading software before the panel will permit downloading to occur. The factory default code is listed in the instructions provided with the LOAD downloading software package.

  • Page 30: Programming Worksheets

    DL150 WORKSHEETS ARM/DISARM CODES 1 - 15 LOCATION PAGE DESCRIPTION DATA 1 DATA 2 DATA 3 DATA 4 "DEFAULT" 000-003 USER #1 ARM/DISARM CODE "1-2-3-4" 004-007 USER #2 ARM/DISARM CODE "15" DISABLED 008-011 USER #3 ARM/DISARM CODE "15" DISABLED 012-015 USER #4 ARM/DISARM CODE "15"...
  • Page 31 SECOND PHONE NUMBER LOCATION PAGE DESCRIPTION PHONE NUMBER "DEFAULT" 085-092 SECONDARY PHONE NUMBER, DIGITS 1 - 8 "14" DISABLED 093-100 SECONDARY PHONE NUMBER, DIGITS 9 - 16 "14" DISABLED “0" = 0, “10" = 0, “11" = *, “12" = #, “13"...
  • Page 32 COMMUNICATOR CODES LOCATION PAGE DESCRIPTION EVENT CODE POINT NO. "DEFAULT" 148-149 ZONE #1 COMMUNICATOR CODE "3" - "1" 150 - 151 ZONE #2 COMMUNICATOR CODE "3" - "2" 152-153 ZONE #3 COMMUNICATOR CODE "3" - "3" 154-155 ZONE #4 COMMUNICATOR CODE "3"...
  • Page 33 PROGRAMMING AUDIBLE OPTIONS LOCATION PAGE DESCRIPTION DATA "DEFAULT" TWIN TRIP SOUNDER CONTROL “0" SILENT TWIN TRIP TIME PERIOD “5" 5 MINUTES PRIMARY ENTRY DELAY OPT=("0" THUR "15") 5 SEC INC "6" 30 SEC PRIMARY EXIT DELAY OPT=("0" THUR "15") 10 SEC INC "6"...
  • Page 34 PROGRAMMING OPTIONS LOCATION PAGE DESCRIPTION DATA "DEFAULT" AUTO ISOLATION “1" = ENABLED “ 2" = ENTRY/EXIT ZONES ONLY "0" DISABLED DUAL EOL ENABLE “1" = ENABLED "0" DISABLED QUICK ARM DIGIT - DIGIT 3 ONLY “1" = ENABLED "0" DISABLED PARTIAL ARM SECURITY / UNI ARM FEATURE “0"=DISABLED “2"= UNI ENABLED "1"...
  • Page 35 PROGRAMMING TIMER OPTIONS LOCATION PAGE DESCRIPTION DATA "DEFAULT " DAY OF THE WEEK (SUNDAY = "1" SATURDAY= "7") "UNDEFINED" MONTH OF THE YEAR (JANUARY = "1" DECEMBER = "12") "UNDEFINED" DAY OF THE MONTH - TENS DIGIT (25TH = "2") "UNDEFINED"...
  • Page 36 APPENDIX 1 This document lists the event reporting codes for Contact ID reporting in the DL150. The event codes are programmed by placing a number from 0-15 in the Event code for the event being reported. The point number programmed is sent as the zone identifier.
  • Page 37 APPENDIX 2 This document describes the DL150 reporting event codes when using the SIA format (format 14). The event codes are programmed by placing a number from 0-15 in the Event code for the event being reported. The point number programmed is sent as the zone identifier.
  • Page 38 RESPONSIBILITY FOR REPAIRING DAMAGE TO THE PRODUCT CAUSED BY MISUSE, CARELESS HANDLING, OR WHERE REPAIRS HAVE BEEN MADE BY OTHERS. NO OTHER GUARANTEE, WRITTEN OR VERBAL, IS AUTHORIZED BY OR ON BEHALF OF DIRECT ALARM SUPPLIES 9 NOWILL STREET CONDELL PARK NSW. DIRECT ALARM SUPPLIES...
