MEET Technology MS-ITC2U Quick Start Manual

Special
Auto Capture
effect
Data logger
display
Smartphone / Tablet Thermal Imager
Auto trace High / Low object temperature
Connecting through Smartphone / Tablet with Android APP
through type 'C' USB or type 'C' micro USB adaptor

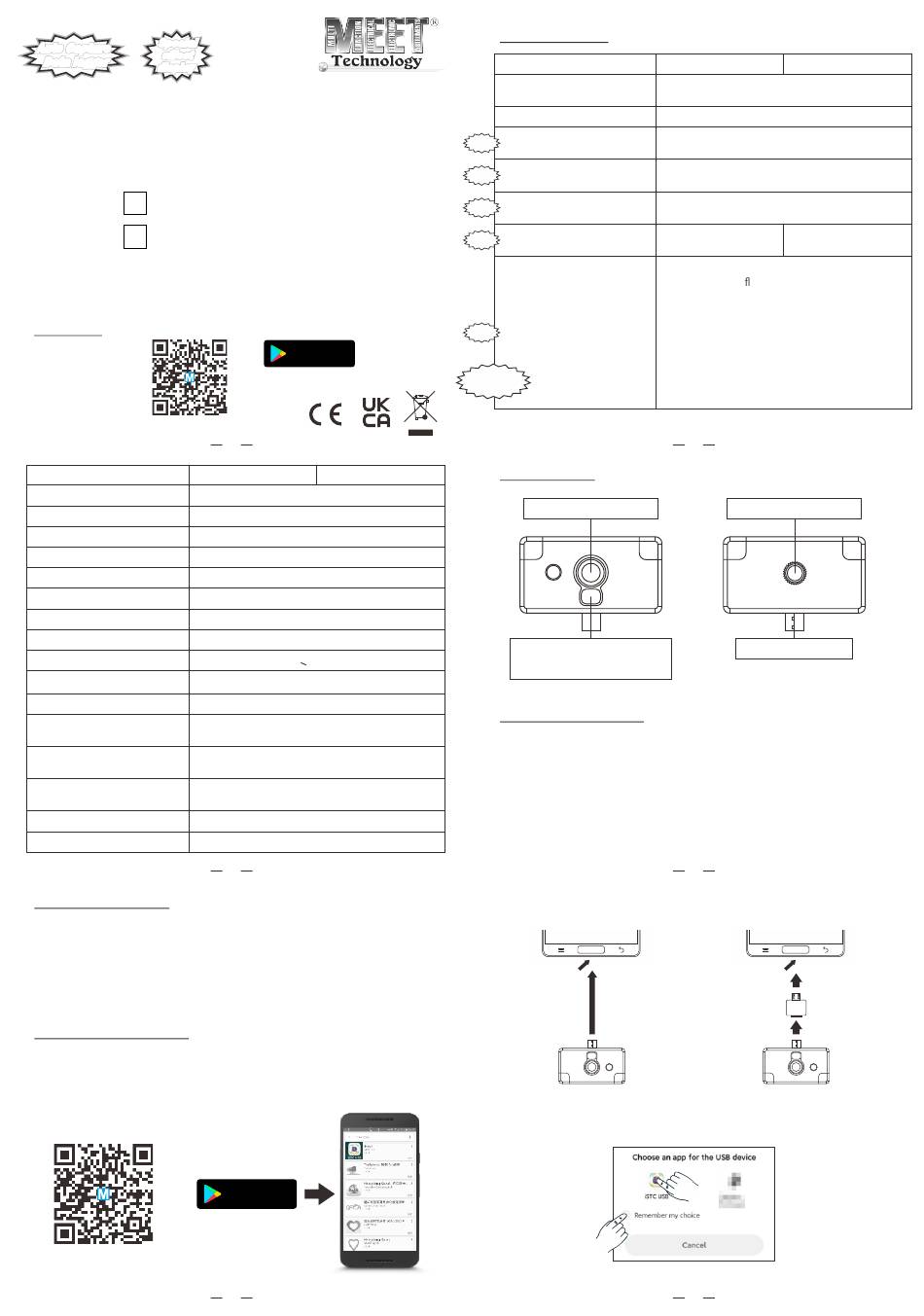

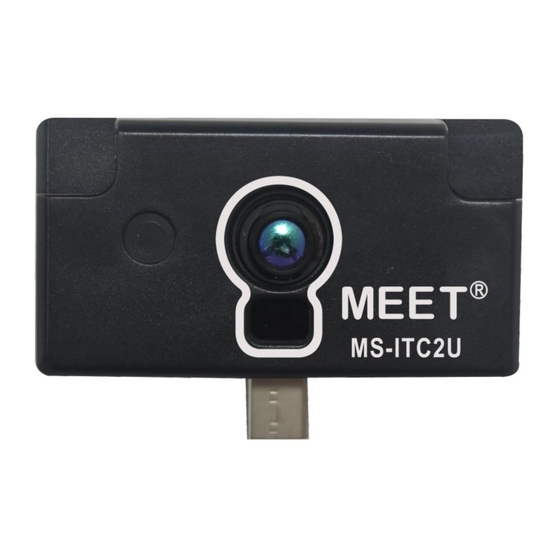

MS-ITC2U
Model No. :
MS-ITC2UT
Thank you for purchasing MEET
1. Contents
Download iSTC USB APP :
-
Thermal imager
detector
- Storage case
- Operating manual
- Type 'C' to micro
USB adaptor
Model No.
Thermal image detector
Thermal image resolution
Spectral response
Measure temperature range
Resolution (Min.)
Adjustable emissivity
Fixed focus distance
10 color palettes selectable
Image frequency
1/4" screw
Image storage / File format
Operating and storage condition
(temperature; humidity)
Type 'C' USB input or through
Type 'C' / micro USB adaptor
Dimensions (LxWxD) mm
(approximate)
Powered by / Operating duration
Weight (approximate) grams

5. Care and handing

- Keep the Imager dry, if it gets wet, dry it immediately.
- Use and store the Imager in normal temperature.
- Handle the Imager gently and carefully.
- Keep the Imager clean. Wipe the case occasionally with a cloth. Do not
use chemicals, cleaning solvents, or detergents.

6. Download free APPS

A. Scan below QR code or download free 'iSTC USB' Android APPs from
Google Play Store.
*NOTE: SHOULD BE ANDROID 8.0 OR ABOVE SUPPORT OTG DEVICE.
OR
( With distance to object
measurement display)
Smartphone / Tablet Thermal Imager !
GET IT ON
Google Play
OR
' iSTC USB '
1
MS-ITC2U MS-ITC2UT
Low power CMOS, shutterless
80 (H) x 62 (V), 4960 pixels
8 ~ 14µm (Thermal LWIR)
-20°C ~ 1000°C ( - 4°F ~ 1832°F )
0.1 °C ( 0.1 °F )
1 ~ 99
0.5 m
*
<
9 Hz
For tripod
JPEG into Smartphone / Tablet memory and display
0°C ~ 40°C ( 32°F ~ 104°F ) ; 10% ~ 80%RH
*
61 x 41 x 25
Smartphone / Tablet depends on device itself
22
3
GET IT ON
Google Play
'iSTC USB'
5
2. Specifications
Model No.
- Display
- Date / Time
Menu setting and display
Real time isotherm graphic
NEW
display
Data logging
NEW
Self Temperature compensation
NEW
adjust (by manually input)
Distance to object
NEW
measurement display
8 types of measurement
mode include 2 types of
NEW
'Auto Capture' Data
Logging mode
Auto Capture
Data logger

3. Descriptions

Thermal image sensor
Infrared distance measuring
sensor ( *MS-ITC2UT only )

4. Safety instructions

The Imager has been designed for safe use, but must read, understand and follow
operating instructions and Safety Rules in this manual before using this product.
- Do not use this Imager if it operates abnormally.
- Do not submerge it in water.
- Do not leave or operate near objects of high temperature.
- Do not operate the Imager around explosive gas, vapor or dust.
B. Insert the Imager direct to type 'C' input of Smartphone or use micro
USB to type 'C' adaptor to Smartphone with micro USB.
Type 'C'
Direct
Plug in
C. Please tap 'iSTC USB' and or default setting to enter APPS.
Select 'iSTC USB' to drive OTG device
MS-ITC2U MS-ITC2UT
Display through Smartphone/ Tablet ( with Android
8.0 version or above and support OTG output)
Through Smartphone / Tablet
*
Auto trace and capture high/ low temp.
every 60 seconds and stored in memory
*
(1 ~ 320cm)
1) Thermal 'lmage'
2) 'Target' temp. ( exible setting)
3) 'High' temp. (Auto trace)
4) 'Low' temp. (Auto trace)
5) 'High/ Low / Target' temp. (Auto trace)
6) 'Skin temp.' (Auto trace)
7) 'Alm Vs Target', Auto capture and record 'pre-set'
High / Low differential temp. vs 'Target'
8) 'Alm Vs Object', Auto capture and record pre-set
High / Low differential temp. of the object
2
1/4" screw for tripod
Type 'C' connector
4
micro USB
micro USB
to Type 'C'
OR
adaptor
6
