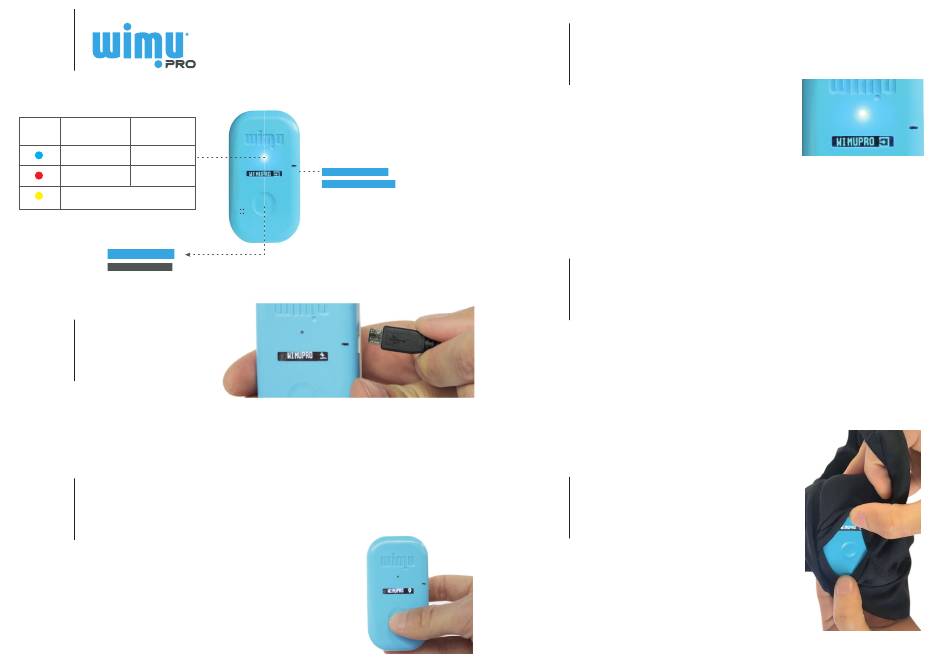

LED COLOR CHART
BLINKING FLASHING
STATE
-Slow- -Fast-
Booting Wimu Ready
Logger
GPS fix / ANT+ Connect
ON / OFF BUTTON ON / OFF BUTTON ON / OFF BUTTON
Switch ON / OFF Switch ON / OFF
2
BATTERY
WIMU PRO has to be fully charged before starting any activity. Be sure the red LED from the lateral is turn off
(it will indicate the battery is fully charge). If we start a session without the enough battery charge, we risk not
recording the full session.
3
SWITCH ON/OFF THE DEVICE
1. ON Press the button until a blue light flashes.
It's recommended to place the device horizontally
(in the floor, i.e.) and away from vibrations during the first 30 sec. it's on. WIMU
PRO uses this period of time to take references.
2. OFF Press the button 3 in quick sucession (less than 1 second)
MICRO-USB MICRO-USB MICRO-USB
CONNECTOR CONNECTOR CONNECTOR
To charge the battery of the
device from AC adapter and
to load data
4
STARTING PROCEDURE
In 30 seconds, aprox. you will see a BLUE LED
flashing, then a blue LED will flash quicker.
That means that WIMU PRO is ready to be used.
5
LOGGING
To start collecting data, we have to press and hold the button for 1 second.
Then a flashing is displayed followed for a red led blinking. Remember, the red led
indicates the session is being recorded into the device
6
PLACE OF WIMU PRO
Place the device into the sport vest as
seeing in the picture
