Summary of Contents for IC 3050621

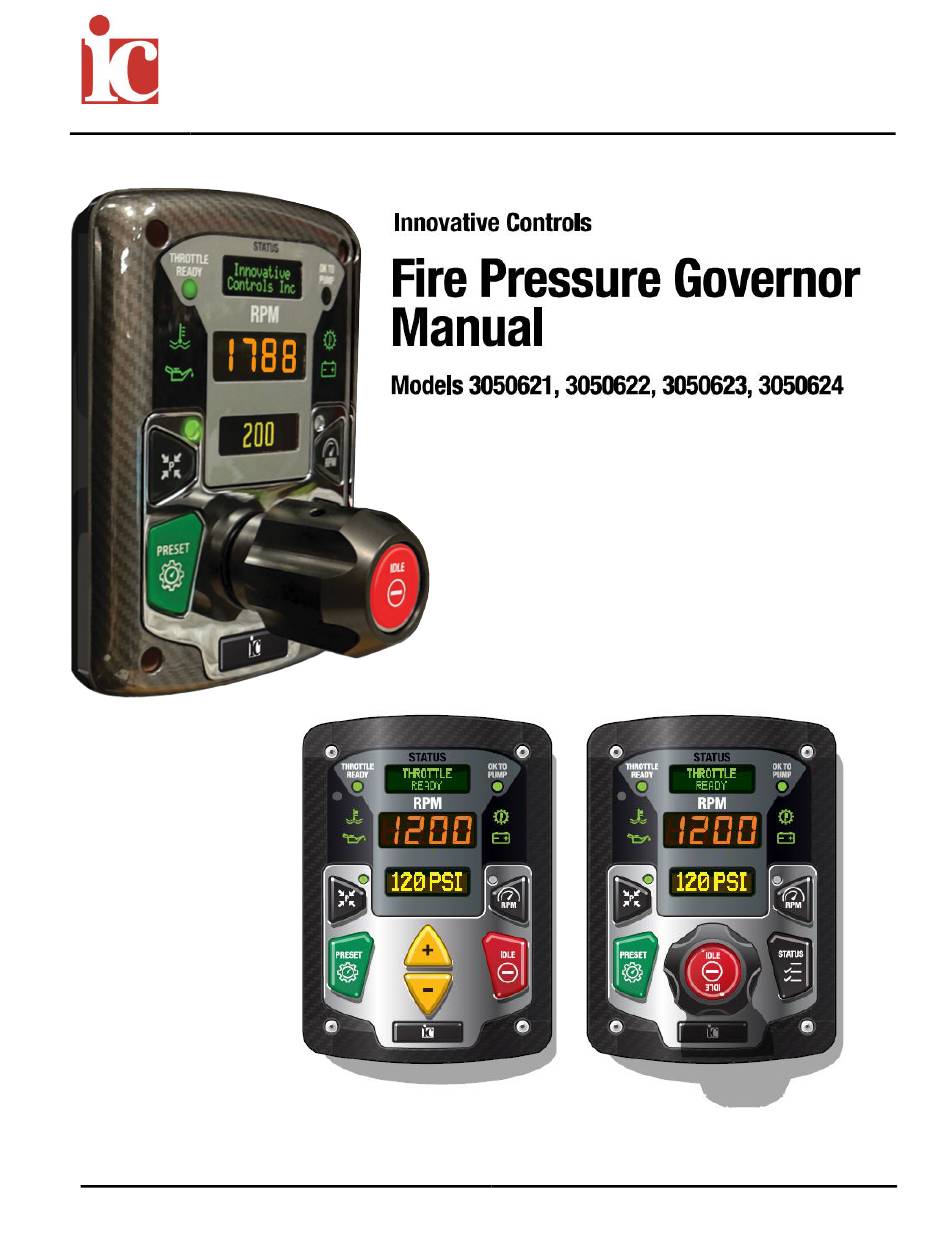

- Page 1 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Innovative Controls, Inc. August 13, 2021 560 Braddock Avenue Rev 1.10 East Pittsburgh, PA 15112...
- Page 2 Fixed range description for config. param. #3. 4/7/2021 Fixed typo in description of params # 81, 83, & 84. 1.10 8/13/2021 Updated table 7 to reference correct IC part numbers. Innovative Controls, Inc. Page 2 of 32 560 Braddock Avenue Rev 1.10...
- Page 3 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Explanation of Symbols The exclamation mark within an equilateral triangle is intended to alert personnel applying this device to important operating instructions that could result in injury or equipment damage if not followed accurately or disregarded.
-
Page 4: Table Of Contents
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Table of Contents Fire Pressure Governor Description ...................... 6 Features............................6 Part Numbers ..........................6 Front Panel ............................. 7 1.3.1 Status Display .......................... 7 1.3.2 Engine Speed Display ......................8 1.3.3... - Page 5 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 List of Figures Figure 1 FPG Front Panels ........................... 7 Figure 2 FPG Mounting Dimensions ......................15 Figure 3 FPG Connectors ........................... 16 Figure 4 FPG Wiring ........................... 19 Figure 5 Pressure Sensor Dimensions .......................
-
Page 6: Fire Pressure Governor Description
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Fire Pressure Governor Description 1.1 Features The Innovative Controls Inc. Fire Pressure Governors (FPGs) are used to regulate pump discharge pressure or engine speed in a closed-loop process control that delivers maximum accuracy and safety. -
Page 7: Front Panel
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Table 1 FPG Part Numbers Description IC Part Number Governor with Push Button +/- 3050621 Governor with Push Button +/- and Intake Sensor 3050622 Governor with Knob +/- Controller... -
Page 8: Engine Speed Display
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 1.3.2 Engine Speed Display The Engine Speed Display shows the engine speed in revolutions per minute (RPM). 1.3.3 Pump Discharge Pressure Display The Pump Discharge Pressure Display shows the pump pressure in PSI, kPa, MPa, or bar as measured by the discharge sensor. -
Page 9: Transmission Temperature Indicator
The RPM button places the FPG in speed control mode. The LED indicator is green when the FPG is in speed control mode. On the 3050621 and 3050622 models of the FPG, holding the RPM mode button while RPM mode is engaged will display status messages on the status display (see 1.4.6 for a detailed list of messages). -
Page 10: Idle Button
The pump pressure or engine speed setpoint is controlled by the + and – buttons on the 3050621 and 3050622 models of the FPG. The + and – buttons are also used to adjust configuration settings when the FPG is in the configuration menu mode. -
Page 11: Interlocks
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 1.4.1 Interlocks The FPG interlock inputs are used to enable operation of the FPG engine control functions when the vehicle chassis is in an appropriate state. The FPG vehicle interlock logic design and implementation have critical safety implications if not done correctly. -
Page 12: Pressure Mode
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 In speed mode the FPG operates as a remote engine throttle with no regard to pump discharge pressure. Operators must follow their organization’s standard operating procedures. Speed mode should not be used when discharges will be opened and closed as it could result in undesired pressure changes. -
Page 13: Status Display Messages
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 1.4.6 Status Display Messages The FPG Status Display shows the interlock conditions, governor mode of operation, operator information, engine and transmission conditions, and system alarm information. The Status Display messages are detailed in Table 3 below. -
Page 14: Alarm Output
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Message Description INTAKE Intake sensor signal voltage is more than 4.9VDC. SENSOR HIGH PRESSURE In speed control mode, the pump pressure increased greater than PRESS LIMIT configuration LIMITED parameter from initial pressure when mode was started. -
Page 15: Installation
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 The alert double beep output can be enabled or disabled using the configuration menu. The alarm output cannot be disabled using the configuration. The alarm output can be silenced for 1 minute by pressing the Status button on the knob version of the FPG, or by pressing the active mode button on the pushbutton version of the FPG. -
Page 16: Connectors
The 6 Pin connector is a Deutsch DT15-6P that is used on FPG models that do not have a pump intake pressure sensor or IC J1939 Bus. It mates with a Deutsch DT06-6S plug. This connector interfaces with the vehicle power, SAE J1939 CAN bus, and warning alarm. -
Page 17: Table 4 12 Pin Key A Connector
3050621, 3050622, 3050623, 3050624 The 12 Pin Key B connector is a Deutsch DT15-12PB that mates with a Deutsch DT-06-12SB plug. This connector interfaces with the vehicle power, SAE J1939 CAN bus, IC J1939 CAN bus, warning alarm, and intake sensor. -
Page 18: Interface Wiring
Cable Assembly, FPG Power and CAN Interface Cable with Intake Sensor 4000675-04 Cable Assembly, FPG Power and CAN Interface Cable with IC J1939 4000675-05 Cable Assembly, FPG Power and CAN Interface Cable with IC J1939 and Intake 4000675-06 Sensor Innovative Controls, Inc. -
Page 19: Pressure Sensors
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Figure 4 FPG Wiring 2.4 Pressure Sensors Use the Innovative Controls Inc. pressure sensor part numbers 3050471 or 3050472 for 0PSI to 300 or 600 PSI full scale discharge pressure. Use the 3050473 or 3050474 pressure sensors for -30PSI to 300 or 600 PSI intake pressure. -
Page 20: Pressure Sensor Calibration
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Table 8 Pressure Sensor Part Numbers Description IC Part Number 0 To 300 psi, Sealed Gauge or Absolute, Male 1/4" NPT, 0.5V to 4.5V Output, 5V 3050471 Supply, +/- 0.5% Accuracy, Metri-pack 150 Connector 0 To 600 psi, Sealed Gauge or Absolute, Male 1/4"... -
Page 21: Configuration
(3050623 and 3050624), press and hold the Preset and Status buttons for five seconds. For models with +/- buttons (3050621 and 3050622), press and hold the Preset and Idle buttons for five seconds. Please refer to section 3.1 for more details. - Page 22 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level HIGH IDLE Engine speed in RPM when in high idle mode. 1100 User Range is 900 to 1400 PRM, adjustable in 25 RPM steps.
- Page 23 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level DIS. 0 CAL Calibrates the discharge sensor 0 PSI value. Service Press the PRESET button with discharge at 0 PSI to run calibration routine.
- Page 24 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level BAUD RATE Adjusts the CAN bus engine control speed. 500K Service Range is 250K, 500K or AUTOMATIC. DEFAULTS Returns all configuration parameters to their Service factory defaults.
- Page 25 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level WARN. PSI Adjusts the engine warning oil pressure value where the yellow indicator turns on. Range is 5 to 100PSI, adjustable in 10 PSI steps.
- Page 26 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level DIR PRESET Enables or disables the automatic mode selection when the preset button is pressed. Range is NO, PSI, or RPM.
- Page 27 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level RPM MAX Sets the maximum speed of the engine in RPM. 3000 Range is 1500 to 3500 RPM, adjustable in 25- RPM steps.
- Page 28 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level COMPANY Configures company name displayed at startup. Innovative OBDJ1939 Configures the OBD to J1939 gateway protocol NONE (typically used only in Ford chasses). Options...
- Page 29 Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Parameter Parameter Description Default Menu Number Name Level PRES HIGH Configures the minimum discharge pressure 50 PSI required before a “PRESSURE DROPPED” alarm message is possible. Range is 50 to 250 PSI, adjustable in 5 PSI steps.
-
Page 30: Specifications
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Specifications 4.1 FPG Electrical Specifications The Innovative Controls Inc. FPG electrical specifications are in the following table: Table 10 FPG Electrical Specifications Parameter Specification Operating Voltage +9VDC to 32VDC Current consumption at 13.8 VDC... -
Page 31: Environmental Specifications
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Table 11 Pressure Sensor Specifications Parameter Part Number Specification Operating Pressure 3050471 0 to 300 PSI 3050472 0 to 600 PSI 3050473 -30 to 300 PSI 3050474 -30 to 600 PSI Output Type Analog Voltage 0.5 V to 4.5 V... -
Page 32: Table 13 Fpg Mechanical Specifications
Innovative Controls, Inc Fire Pressure Governor User Manual 3050621, 3050622, 3050623, 3050624 Table 13 FPG Mechanical Specifications Parameter Specification Resonance dwell SAE J1455 (sec 4.9.4.1) Mechanical Performance Random vibration SAE J1455 (sec 4.9.4.2) Mechanical shock SAE J1455 (sec 4.10.3.4) (designed to meet) Dimensions Button Version 4.75”...
