Summary of Contents for COREONE WELDING CORWX1000L

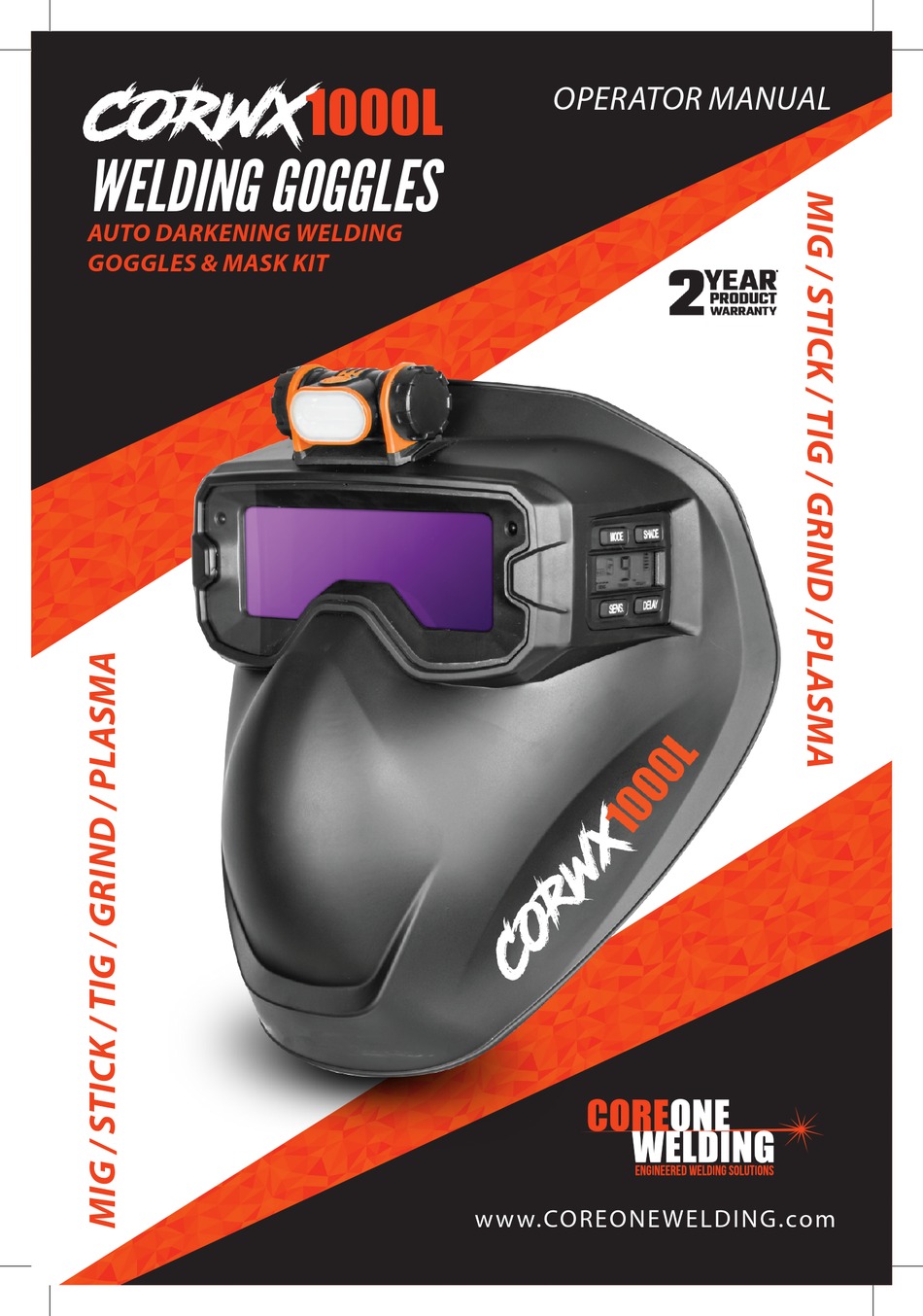

- Page 1 CORWX 1000L OPERATOR MANUAL WELDING GOGGLES AUTO DARKENING WELDING GOGGLES & MASK KIT w w w.COREONEWELDING.com...
-
Page 2: Table Of Contents
CORWX 1000L CONTENTS - TABLE OF CONTENTS - PAGES DESCRIPTION SAFETY FEATURES PARTS BREAKDOWN OPERATING INSTRUCTIONS MAINTENANCE & TROUBLESHOOTING RECOMMENDED SHADE SETTINGS C O R E O N E W E L D I N G G O G G L E S... -
Page 3: Safety
• The CORWX1000L Welding Goggles are not suitable for “overhead” welding application, laser welding, or laser cutting applications. • The CORWX1000L Welding Goggles is designed to protect the eyes and face from sparks, spat- ter, and harmful radiation under normal welding conditions. -
Page 4: Features
The CORWX1000L Welding Goggles have been designed to be versatile in their usage. There is room under the mask to fit a Standard Half-Mask Respirator. The mask itself can also be re- moved, so that only the goggles can be used. -
Page 5: Parts Breakdown
CORWX 1000L PARTS BREAKDOWN DESCRIPTION RV210011 Auto Darkening Goggles Shell RV210012 Auto Darkening Goggles Outer Lens RV21001 Auto Darkening Goggles RV210014 Auto Darkening Goggles Inner Lens RV210015 Auto Darkening Goggles Silicone Padding RV210016 Auto Darkening Goggles Plastic headband RV210017 Auto Darkening Goggles Elastic Headband RV210019 Auto Darkening Goggles Bag HOOD... -
Page 6: Operating Instructions
CORWX 1000L OPERATING INSTRUCTIONS BEFORE USING • Check the inside & outside protection lens are clean and that no dirt is covering the sensors on the front of the goggles. • Make sure the protection films on both inside & outside protection lens are removed. •... - Page 7 CORWX 1000L OPERATING INSTRUCTIONS DISPLAY ICONS MODES • The goggles have 4 function modes: » WELD MODE (Shade range 5-9). » WELD MODE (Shade range 9-13). » GRIND MODE. » CUT MODE. • In WELD MODE, 3 functions can be adjusted; Sensitivity, Shade and Delay. •...
- Page 8 CORWX 1000L OPERATING INSTRUCTIONS SENSITIVITY CONTROL • The responsiveness to different light levels in various welding processes can be adjusted in the range 1-5 (from low to high). Sensitivity only can adjusted be in welding modes. • To change the sensitivity in WELD MODE, press the SENS. button once and Icon 5 will start flashing.
- Page 9 CORWX 1000L OPERATING INSTRUCTIONS POWER SUPPLY AND CHANGING THE BATTERY • The power of the goggles is provided by a replaceable battery, CR2450. • Icon 1 will flash when the battery is low and a replacement is needed. • Loosen the screw on battery cover with a screwdriver to remove the battery cover. Take the battery out and replace with a new battery;...
- Page 10 CORWX 1000L OPERATING INSTRUCTIONS REPLACING THE INNER LENS • The Inner lens is a protective lens and must be replaced if broken, damaged or covered with welding spatter to the extent that vision is impaired. • Remove inner lens from the goggles. •...
- Page 11 CORWX 1000L OPERATING INSTRUCTIONS REPLACING THE INNER LENS • The Goggle itself can be easily removed from the face Shield by following these simple instructions. • Press the Tag outwards as shown in Position 1 , at the same time press the outside Top corner of the goggle inwards, (position 2) The goggle will break away from the face mask at this side.
-
Page 12: Maintenance & Troubleshooting
90°. WARRANTY COREONE Welding is pleased to offer a 2 year warranty on the CORWX100L Welding Goggles. COREONE Welding’s focus is to ensure that the buyer is getting reliability, performance and peace of mind when using one of our quality products. We can be contacted by email info@coreonewelding.com or via our Website www.coreonewelding.com. -
Page 13: Recommended Shade Settings
CORWX 1000L RECOMMENDED SHADE SETTINGS w w w . C O R E O N E W E L D I N G . c o m... - Page 14 CORWX 1000L OPERATOR MANUAL WELDING GOGGLES AUTO DARKENING WELDING GOGGLES & MASK KIT w w w.COREONEWELDING.com...
