Blind Spot ZR79-01R Quick Start Manual

Monitoring and Warning System for Right Blind Area in Commercial Vehicle
I. Production Introduction

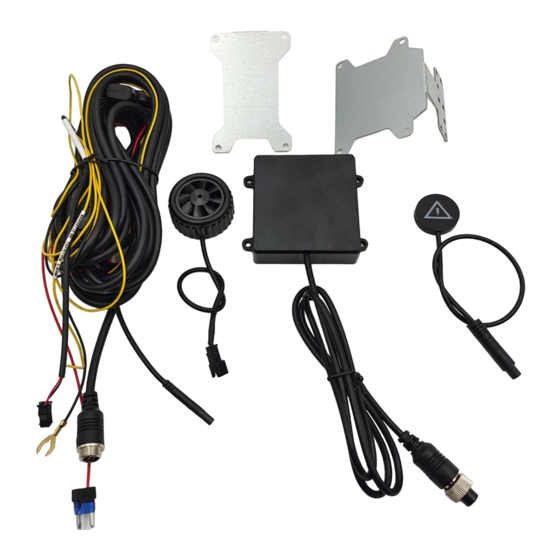

Thank you for choosing the monitoring and warning system for right blind area in commercial vehicle produced by
our company. The product consists of a 79Ghz millimeter wave radar, an indicator light, a buzzer and the connecting
harness.
This system product provides early warning of dangerous targets in the adjacent lane on the right. The unique
ability of 79Ghz millimeter wave radar to penetrate smoke, fog, and dust can realize all-weather and all-day service, real-
time detection of objects in the signal area, and output alarm signals corresponding to the warning strategy.
In terms of the large vehicles such as vans, there is a large blind areas on the right side, which may cause endless
traffic accidents. ZR79-01R radar is used for 79GHz FMCW radar for side safety protection of large cars and trucks. The
radar can detect and warn obstacles on the side of the vehicle, and effectively remove fixed obstacles such as fences
and green belts, which can greatly improve the driving safety of heavy vehicles such as large trucks.
I I . P r o d u c t L i s t
I I I . T e c h n i c a l P a r a m e t e r
S/N
Operating Voltage
01
Operating Frequency
02
Operating Temperature
03
04 Power Consumption
05 Waterproof Level
06 Distance Resolution
07 Measuring Accuracy
08 Detection Range
IV. Product Function and Alarm Mode
The radar is on after powering, and the self-inspection light turns on for 1 second and then goes out.
As shown in the figure, when a target vehicle enters the side radar detection area, the vehicle's radar can detect
the target and warns it with LED lights. In this state, the driver should stop dangerous driving behaviors such as turning
right and changing lanes.
79Ghz Millimeter Wave Radar
Name
79Ghz millimeter wave radar
Warning lights in the car
Buzzer and wire
Manual
Bracket and accessories package
Item
Quantity
One piece
One piece
One set
One piece
One set
Specification
12—24 V
76-81 G h z
- 40℃ ～ + 85℃
< 5W
Ip 67
0 . 5 m
0.1 m
High-speed mode: 0.2 ~ 3.5 meters in
horizontal direction, -7 ~ 7 meters in vertical
direction;
Low speed mode: 0.2 ~ 1.5 meters in
horizontal direction, -7 ~ 7 meters in vertical
direction;
