TOOLS REQUIRED
Safety goggles
Phillips screwdriver
Installation
1
PREPARING FOR INSTALLATION
Pick a cold water supply pipe located as close as possible to the appliance.
Close the main water shutoff valve. Open a faucet located near the
installation to relieve pressure in the line.
3
POLYETHYLENE TUBE OR FLARE CONNECTION
Use 1/4 in. coupling union (C) (provided) to connect the water inlet valve
tube to the Polyethylene tubing (A). Check to ensure that the tube is
completely inserted into the union.
Coil at least 8 ft. of tubing behind the refrigerator to allow the
refrigerator to be moved away from the wall for cleaning and servicing.
Run tubing to the cold water line.

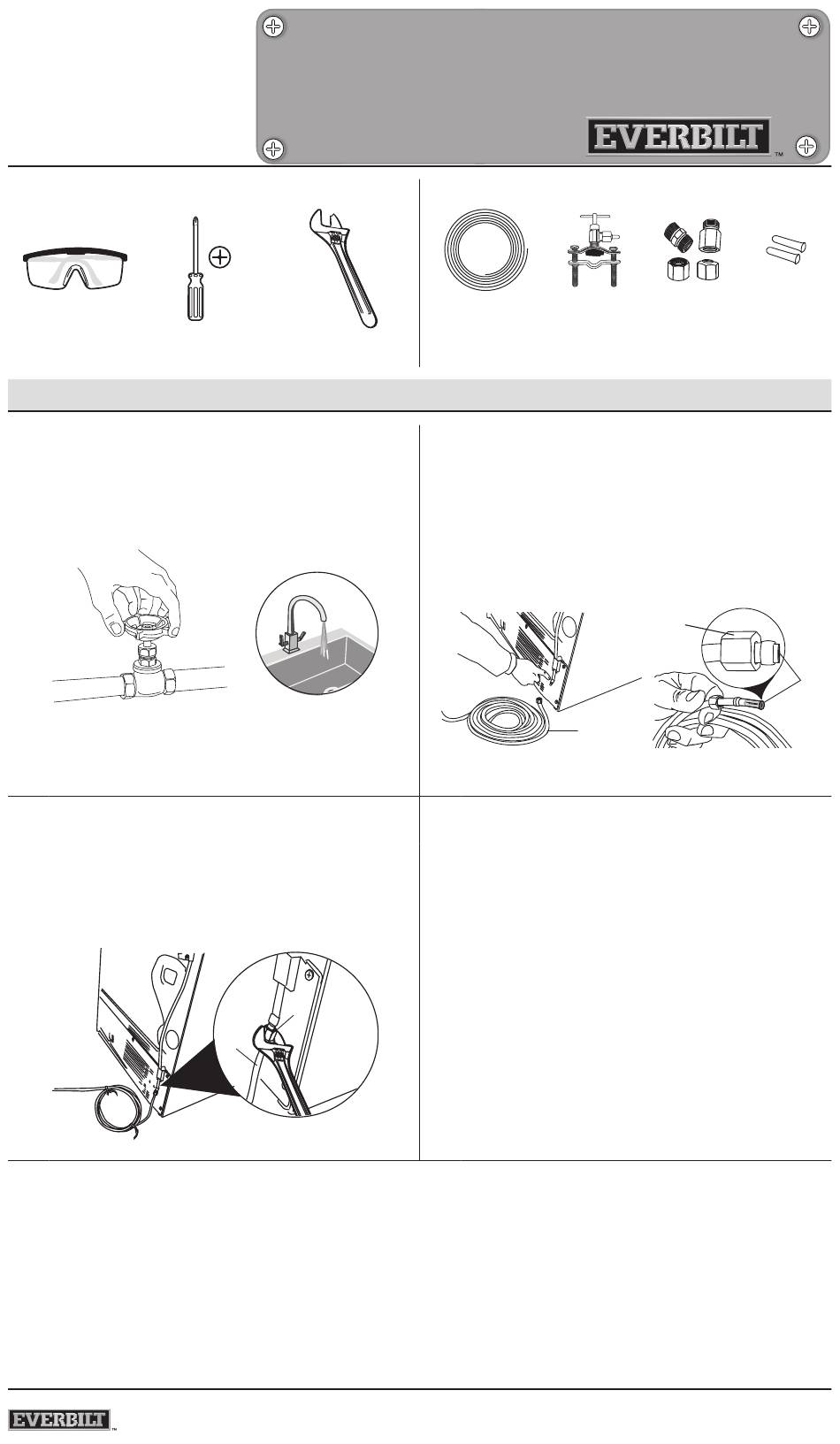

Installation Guide
Polyethylene Ice Maker
Supply Line Kit
Adjustable wrench
C
A
PACKAGE CONTENTS:
B - Saddle
A - 1/4 in. OD x 25 ft.
Polyethylene tube
valve (1)
2
CONNECTING TO A WATER INLET
Connect one end of the Polyethylene tube (A) to water inlet valve located
on the back of the refrigerator. A brass stiffener (D) (provided) must be
placed inside the end of the tube so it can be attached via compression
fitting (C) without being crushed and creating a leak. Insert one of
the small brass tube stiffeners (D) (provided) into the end of the line,
pressing it until the flare on the stiffener touches the end of the plastic
tubing.
A
NOTE: The water valve connection will differ by type of refrigerator.
4
THREADED ELBOW CONNECTION
Slide a compression nut (C) (provided) onto Polyethylene tubing (A). Next
slip the compression sleeve (C) (provided) on tubing. Check to see that
tubing is bottomed in the inlet valve. Tighten the nut on the valve. DO NOT
OVERTIGHTEN.
Coil at least 8 ft. of tubing behind the refrigerator to allow the
refrigerator to be moved away from the wall for cleaning and servicing.
Run tubing to the cold water line.
Item #1001 274 435
Model #7252-25-14-KIT-EB
C - Compression
fittings (4)
C
Please contact 1-800-305-1726 for further assistance.
D - Brass
stiffener (2)
D
HOMEDEPOT.com
10-07-15
Advertisement
Related Manuals for Everbilt 7252-25-14-KIT-EB
Summary of Contents for Everbilt 7252-25-14-KIT-EB
- Page 1 Installation Guide Item #1001 274 435 Polyethylene Ice Maker Model #7252-25-14-KIT-EB Supply Line Kit TOOLS REQUIRED PACKAGE CONTENTS: B - Saddle C - Compression D - Brass A - 1/4 in. OD x 25 ft. Polyethylene tube valve (1) fittings (4)
- Page 2 Installation (continued) CONNECTING THE SADDLE VALVE CONNECTING THE SADDLE VALVE (CONTINUED) The top section of the clamp should be attached to the valve. Place the Attach one side of the bottom clamp to the saddle valve top clamp rubber gasket around the saddle valve piercing pin. The gasket should fit with a bolt.
