Quickstart Guide MFD15 Gen2
Thank you for purchasing a MFD15 Gen2.
This data display fits into any 52mm slot, supports Can Bus communication and six
analogue inputs.
Connection
You have several options for connecting your data display:
• Use of our VAG/BMW OBD cable (CC27022)
• Use of our terminal 15 OBD cable (CC27032)
• Direct connection to 12V (B5), ground (B6) and Can high (C7) and low (C8).
The pinout can be found on the back of this quickstart guide.
Handling
The MFD15 Gen2 has two buttons on the front:
The left button (A)
changes the
page/selection to the
left or upwards when
pressed briefly.

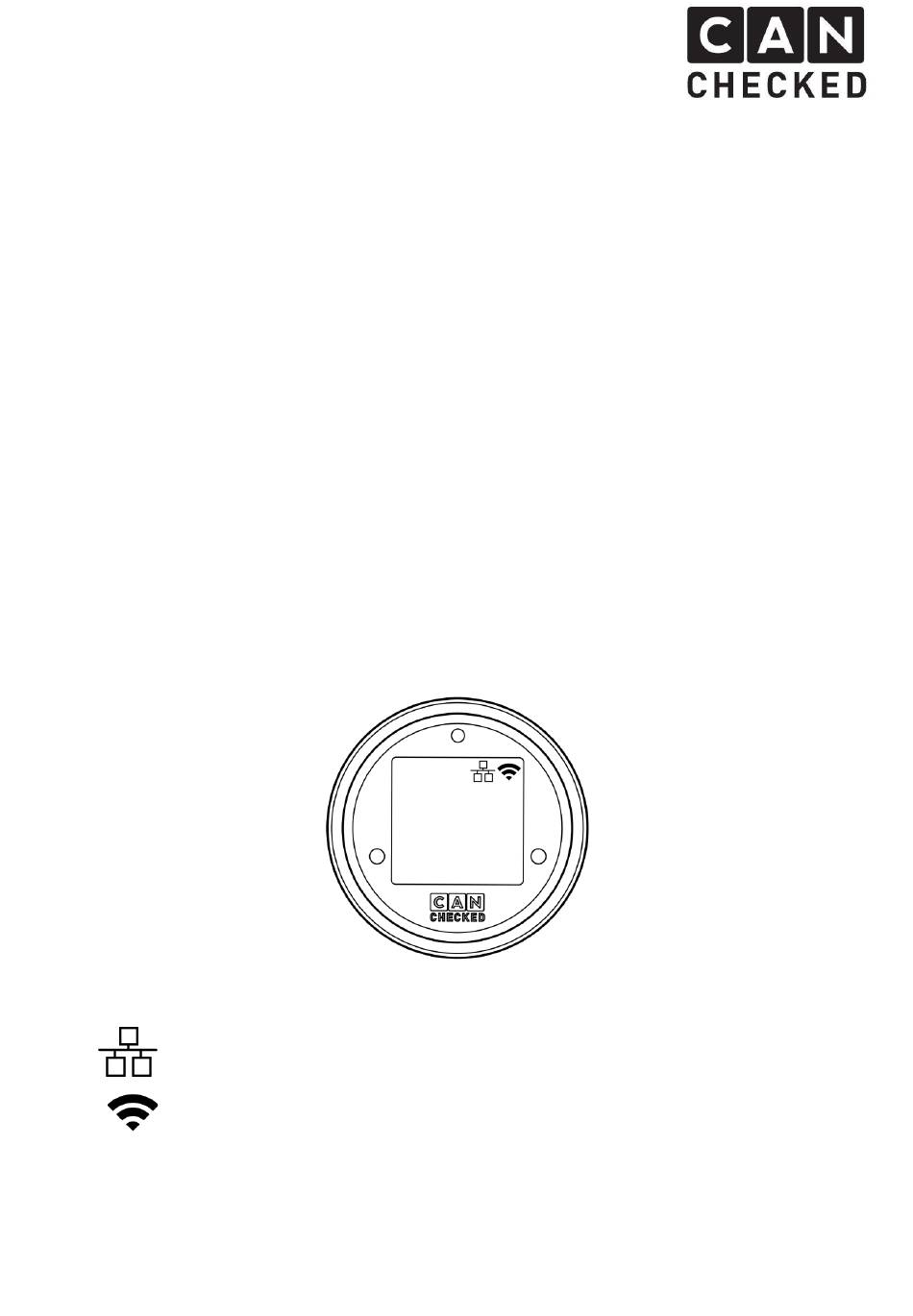

This symbol indicates the Can Bus connection. If it is faulty, the
symbol is red if it is successful, it is green.
This symbol indicates the Wi-Fi status. Red is disabled, green is
available hot spot
v0.1
www.canchecked.de
The right button (B)
changes the
page/selection to the
right or down when
pressed briefly.
info@canchecked.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CAN CHECKED MFD15
Summary of Contents for CAN CHECKED MFD15
- Page 1 • Direct connection to 12V (B5), ground (B6) and Can high (C7) and low (C8). The pinout can be found on the back of this quickstart guide. Handling The MFD15 Gen2 has two buttons on the front: The left button (A) The right button (B)
- Page 2 Settings The data display can be set up via Wi-Fi using your PC or smartphone. To activate the Wi-Fi on the MFD15, press and hold both buttons (A+B) at the same time until you see a large green popup. Your data display is shown as "MFD15" under available hotspots on your smartphone or computer.
- Page 3 Quickstart Guide MFD15 Gen2 Vielen Dank, dass du dich für den Kauf eines MFD15 Gen2 entschieden hast. Dieses Datendisplay passt in jeden 52mm Ausschnitt, unterstützt Can- Kommunikation sowie sechs analoge Eingänge. Anschluss Zum Anschluss deines Datendisplays hast du verschiedene Möglichkeiten: •...
- Page 4 v0.1 www.canchecked.de info@canchecked.de...
- Page 5 Einstellungen Per WLAN kann das Datendisplay über deinen PC oder Smartphone eingerichtet werden. Zum Aktivieren des WLANs am MFD15 musst du beide Knöpfe (A+B) gleichzeitig lang drücken. Dein Datendisplay wird als „MFD15“ unter verfügbaren Hotspot angezeigt. Bitte verbinde dich nun mit dem Datendisplay. Das Passwort zur Verbindung lautet „12345678“.
- Page 6 v0.1 www.canchecked.de info@canchecked.de...
- Page 7 v0.1 www.canchecked.de info@canchecked.de...
