HDWAVE K1401 Manual

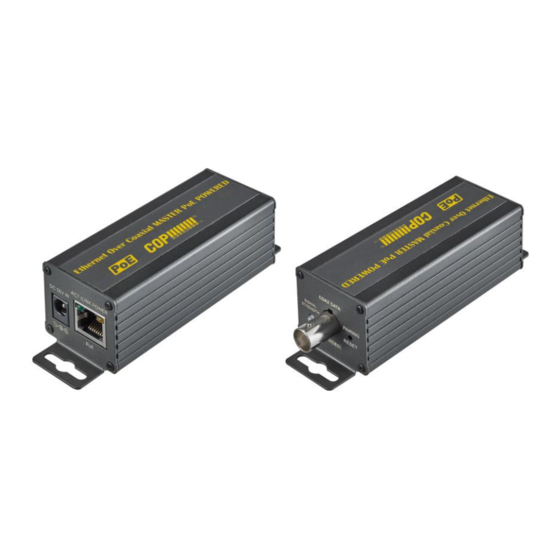

K1401 Ethernet Over Coaxial Master/Receiver Power by PoE Switch

FEATURES

:

No PC required, plug & play and reducing the cables and power distribution cost

Transmit IP camera or other 10/100 Base-T full duplex IP devices over coaxial or UTP cable

PoE powered or Inject DC56V power over an existing coaxial or UTP cable to PoE IP camera.

Up to 600 meter

Built-in 6KV surge protection at BNC and 4KV at RJ45 ports

SPECIFICATIONS

MODEL
Extender Interface
Connector Type
Cable Type
Max. Transmission Distance
Ethernet Interface
Connector Type
Cable Type
Rate
Input Voltage
Control & Indicators
over RG-6, 400 meter over Cat5E
:
transmission distance
75-ohm RG59, RG6 cable
600m (2000ft.) RG6 DC56V
400m (1300ft.) RG6 PoE+
1x RJ-45 with LEDs on Connector
Straight through or cross-over Cat5 Cable, Auto
IEEE 802.3x, Auto-Detection for 10/100Base-T
and full/half duplex
IEEE 802.3at (PoE+) PD@ RJ45 Port
ETHERNET SERIES
K1401
1x BNC
MDI/MDIX
1
