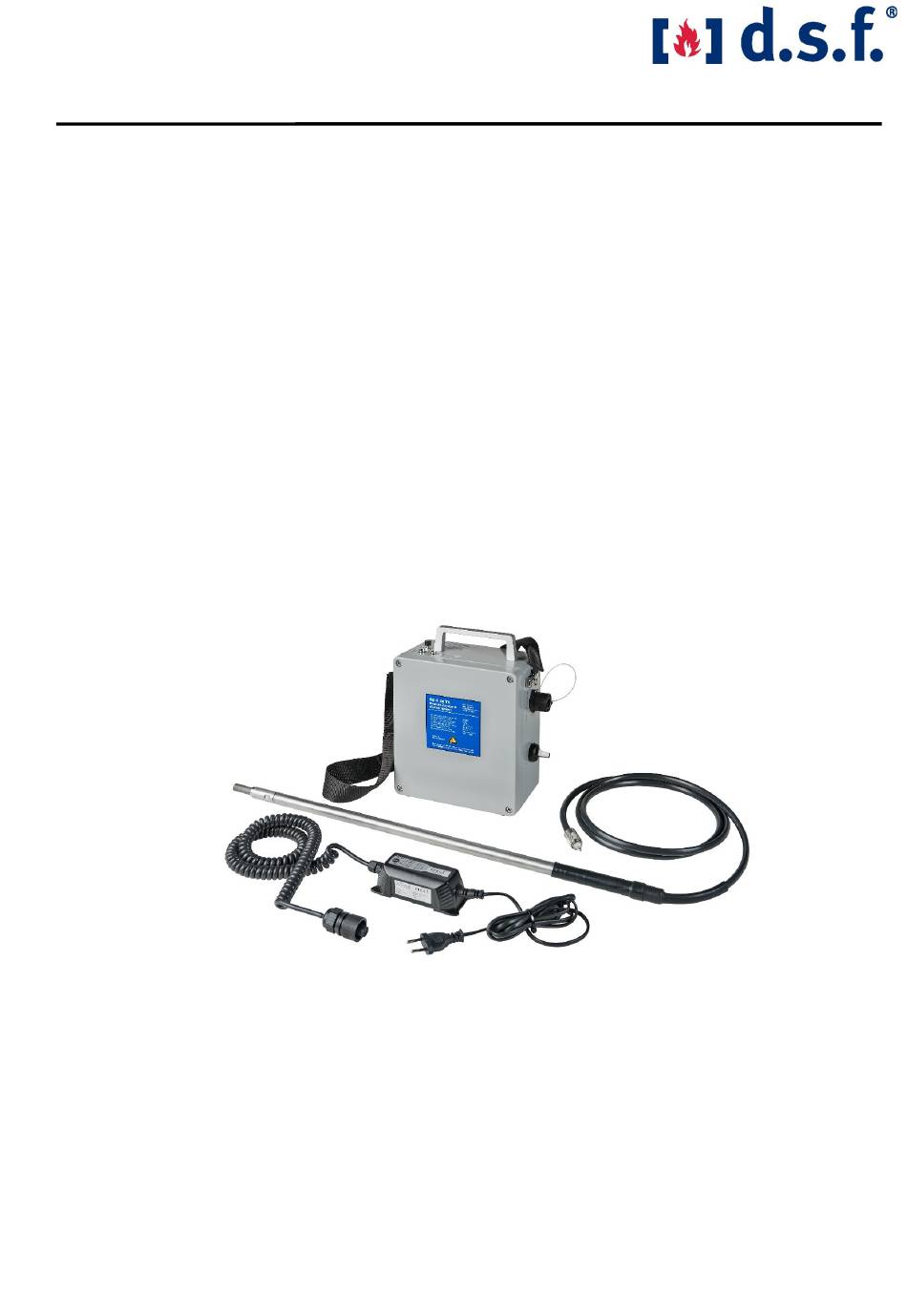

- Page 1 Internationales Know-How in der Flammenüberwachung International Know-How in Flame Detection Operating Instructions Portable Burner Igniter BZ – V 24 TK...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Description of the igniter 1.1. Technical data of the igniter 1.2. Casing configuration 1.3. Connection of the battery charger at the appliance inlet Operating principle Start-up Battery charger Technical data of the battery charger Faults &... -
Page 3: Description Of The Igniter
Description of the igniter The portable burner igniter type BZ –V 24 TK has been designed for the safe ignition of gas and oil burners, as requested by practical considerations. It consists of an aluminum die-cast casing with handle, push-button and carrying strap, the latter housing the power electronics as well as two maintenance-free, closed lead-acid batteries. -
Page 4: Casing Configuration
Casing configuration Fig. 1 Connection of the battery charger at the appliance inlet Fig. 2 soldering wire connection strand marking free free blue charging voltage + brown free free green/yellow protective conductor PE 4 of 10 d.s.f. GmbH BZ – V 24 TK Version 11/2021 Page... -
Page 5: Operating Principle
Operating principle The operating voltage will be transformed to 1.6 kV, so that a capacitor can be charged. Once the above voltage is reached, a spark gap in the casing becomes conductive, while the capacitor is being discharged via the high-energy spark plug. Thus, a light arc with high energy content is generated. -
Page 6: Battery Charger
Make sure during the ignition process that the maximum duration of one attempt does not exceed 2 min (danger of overheating the power electronics). Igniting several burners successively should not cause problems, since the change-over time in between is sufficient to let the individual burners cool down thus avoiding excess temperatures. -
Page 7: Faults & Break-Downs
Faults & break-downs After connecting the ignition lance, turning on the control switch and pressing the push-button: Fault Possible cause Remedy No firing spark Power cut Charge batteries, LED off check fuse in the igniter replace fuse, if necessary LED lights only briefly Defective spark plug Replace spark plug (see section “Repairs”) -
Page 8: Replacing The Spark Plug Connector And The High-Voltage Cable
Replacing the spark plug connector and the high-voltage cable • The spark plug connector and a defective high-voltage cable can only be exchanged at the These parts are also available as a complete spare part mod- manufacturer’s premises. ule by stating the length of the ignition lance. Replacing the spark gap Caution: high-voltage! Put switch S1 in its O-position before working on the appliance. -
Page 9: Maintenance
Fig. 3 charging voltage + charging voltage - protective conductor PE LED connection, tin-coated LED anode connection capacitor heat sink fast 2,5 A fuse fast 3,15 A fuse gel lead battery gel lead battery indicator light (yellow LED) discharge voltage (red LED) relay switch (on/off) push-button ON... -
Page 10: Delivery Conditions
Delivery conditions Deliveries will basically be made on the basis of our General Terms and Conditions. Storage To maintain the full power supply of the lead-gel-battery in the ignition device, the products should not be stored for more than 24 months without a new charge. It is recommended to maintenance charge the battery every 6 months using the charger supplied.
