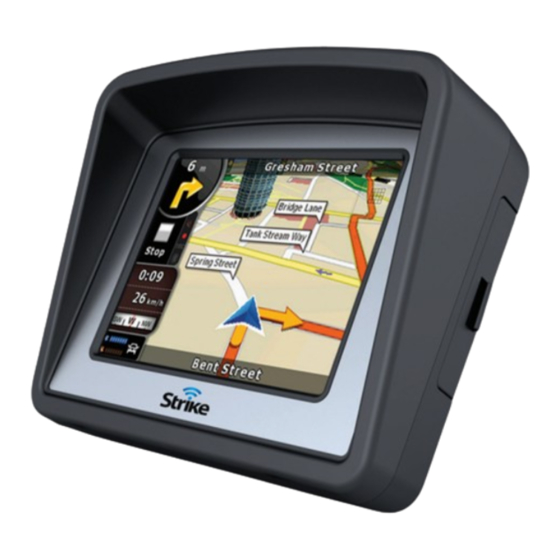

Strike Genius BT

Motorcycle GPS

Table of Contents

Need help?

Do you have a question about the Genius BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Strike Genius BT

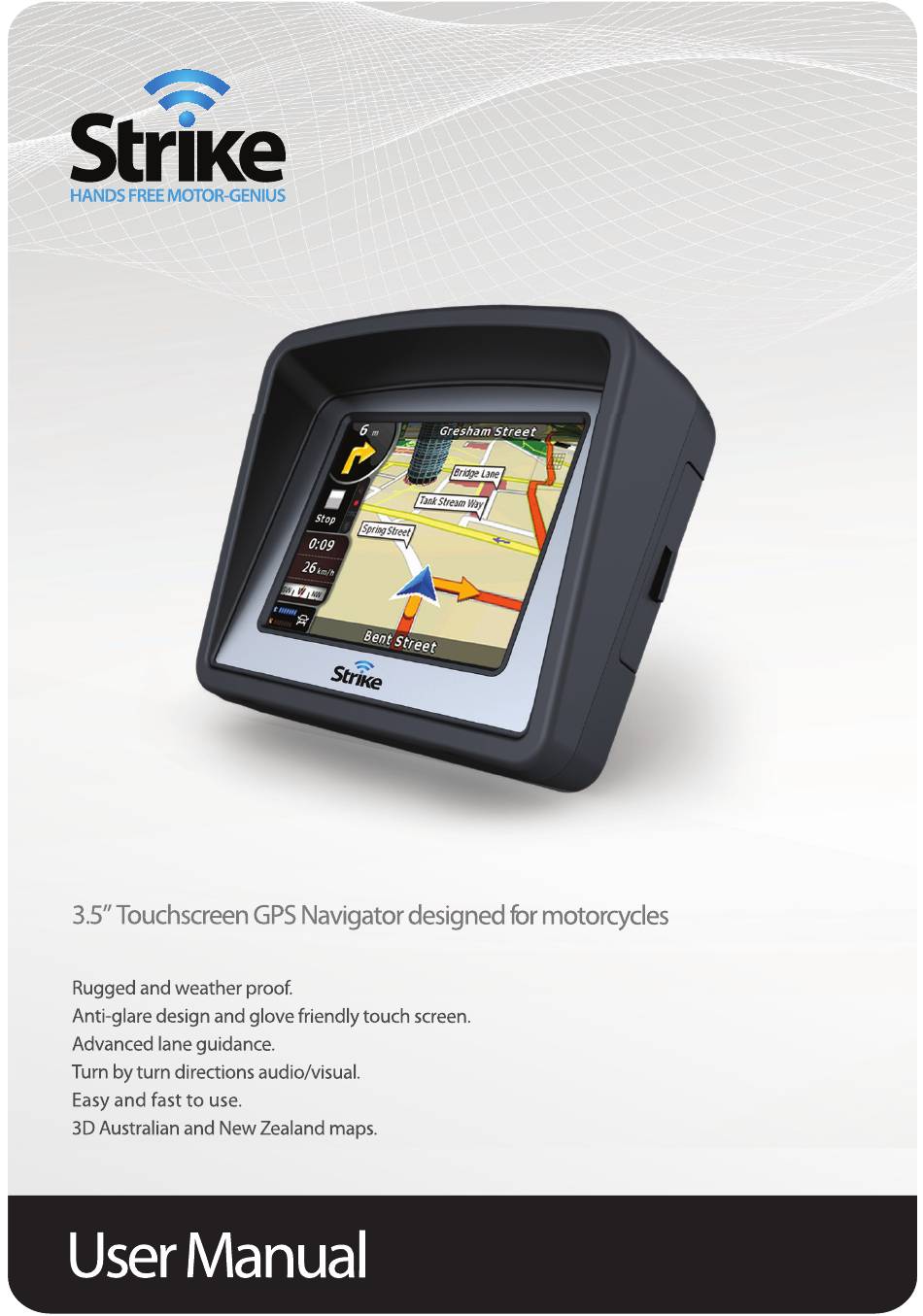

Page 1 Strike Genius BT Motorcycle GPS...
Page 2 User Agreement Dear Consumer, Thank you for choosing the Strike Genius BT GPS Navigation System. In order to avoid any unnecessary injury, damage, or loss which may occur from use of the Strike Genius BT GPS Navigation System, please read this user agreement carefully.
Page 3: Table Of Contents
Contents 1. Notices 1.1 Information Instruction 1.2 Safety Information 1.3 Frequently Asked Questions 2. Brief Introduction 2.1 Function Introduction 2.2 Accessories 3. Basic Operation 3.1 Battery and Adapter 3.2 Basic Use 3.3 Connection with Computer 4. Navigation User Manual 5. Function 5.1 Navigation 5.2 Music 5.3 Picture...
Page 4: Notices
1. When driving, the driver must obey all traffic rules. 2. Do not operate the Strike Genius BT device while driving. 3. The driver should not solely depend on the Strike Genius BT device for navigation, as traffic conditions and roads may constantly be changing.
Page 5 7. Look after your Strike Genius - Whilst the Strike Genius BT has a weatherproof design, you must not submerge it in water (it can handle rain fall).
Page 6: Frequently Asked Questions
1.3 Frequently Asked Questions 1. Can the positioning and use of the Strike Genius be affected by the weather? Yes, lightning, overcast and rainy conditions may affect the signals and use of GPS. 2. What other factors may affect the signals of GPS? A).The precision of GPS signal is directly controlled by DOD in USA, in order...
Page 7 6. What is the maximum navigation time? How long does it take to charge? Generally, the maximum navigation time is 3-4hrs with volume and brightness at 50%. The Strike Genius BT takes around 3-3.5hrs to charge when in stand by mode. It can also be charged when powered on.
Page 8: Brief Introduction
If there is any damage please contact your local dealer or agent as soon as possible. Package Includes: 1 x Strike Genius GPS BT Unit 1 x Strike Genius GPS BT fixed bracket 1 x Power Adapter/DC Charger 1 x USB Cable 1 x Bluetooth Earphone...
Page 9 1.Power Key Power on /off /sleep 2.Reset When the device is crashed, halt or works abnormally, press this key to reset the system ①Exchange the data with PC by MINI USB cable 3.MINI USB Port ② Charge the GPS device by connecting power adapter. 4.SD card slot 5.Bracket block slot 6.Display Screen...
Page 10: Basic Operation
3. Basic Operation 3.1 Battery and Adapter 3.1.1 Power Supply In-vehicle/portable GPS navigation has two ways of power supply: battery supply and power supply. When the device doesn't connect with the adapter, it is supplied by the lithium battery. When the device connects with the adapter, it is supplied by the outer power supply.
Page 11: Basic Use
3.2 Basic Use 3.2.1 Power Key 1.Power on: When the GPS power is full or after connecting the device with an external power supply, press the power key for more than four seconds to start up. 2.Power off: Press the power key for more than four seconds to turn off the GPS. 3.Sleep mode: When the device turns on, quickly press the power key to enter sleep mode.
Page 12: Connection With Computer
3.3 Connection with Computer Connect the device with computer via the USB cable. One end connects with PC and the other end connects with the device. 1. Data transmission: When you plug the deivce into a computer two folders should automatically open on the PC screen. One of these is for the SD card (you can also access these via ‘My Computer’).
Page 13: Navigation User Manual
Advanced Mode Simple Mode When the Strike Genius GPS BT software is started for the first time, you need to select whether to start the program in Simple or Advanced mode. The two operating modes of the Strike Genius mainly differ in the menu structure and the number of available features.
Page 14 Startup screen: the Navigation Menu After selecting Simple mode, the Navigation menu appears. From here you can reach all parts of the Strike Genius. to specify an address as your detination for the list of recent destinations to select one of the stored Points of Interest...
Page 15 Strike Genius works How to navigate to an address Find Address Screen Selecting Street Screen In the navigation menu, tap . By default, the Strike Genius offers the country/state and city of your current location. If needed, tap the button with the name of the country/state, and select a different one from the list.
Page 16 Enter the street name: 1. Tap 2. Start entering the street name on the keyboard 3. Get to the list of results: After entering a couple of characters, the names that match the string appear in a list. to open the list of results before it appears automatically.
Page 17 Selecting Street Screen On the Map screen, tap to return to the Navigation Menu In the Navigation menu, tap Point Of Interest will be searched for around a given address Point Of Interest will be searched for around the Cursor Point Of Interest will be searched for around the current GPS postion Point Of Interest will be searched for around the destination of the...
Page 18 Map Screen When Navigating The most important and often most used screen of the Strike Genius is the Map screen. The map looks similar to a conventional road-map. The blue arrow represents your current position, and the orange line shows the recommended route.
Page 19: Function
5. Function Operation Use of the Bluetooth Earphone Before using the Strike Genius GPS please ensure that the Bluetooth earphone power is turned on (green light should be flashing). On the GPS unit, click the Bluetooth icon to enter the host Bluetooth interface.
Page 20: Navigation
Tap the Navigation icon on the main menu to enter the GPS software. Follow the Navigation guide at the start of this manual. To download the full GPS software user manual please visit www.strike.com.au/gps. 5.2 Music 1. Click the Music icon on the main interface to enter into the audio folder. The inferface will then take you the music player screen.
Page 21: Picture
5.3 Picture 1. Click the Picture icon on the main interface to enter the picture folder. You will be directed to the photo display screen. The function of each icon is as follows (from left to right at bottom of screen): 1.
Page 22: E-Book
5.4 E-book 1. Click the E-book icon on the main menu to enter the E-book folder. You will be directed to the E-book display screen. The function of each icon is as follows (from left to right at bottom of screen): 1.
Page 23: System Setting
5.6 System Setting Click on the Setting icon to setup your system, including volume, power & brightness, language, time and date, system information and touch screen calibration. 5.6.1 Volume Setting To edit the volume on your GPS go to: > Setting >...
Page 24: Malfunction Analysis
To do a “GPS Reset”, go to GPS Info (in the main menu) and tap the GPS Reset icon. Tips 6. Malfunction Analysis If the device does not work smoothly, follow the methods below. If problems persist please visit www.strike.com.au/gps Low power Charge the battery Can not power on Low power...
Page 25: Technical Specification
7. Technology Speci cation Dimension 110*91.5*40.9mm Net Weight About 209g Windows CE6.0 CPU Frequency SiRF Atlas IV, CPU 500MHz, ARM11, DSP 250MHz System 64MB or 128MB (Optional) NAND Flash SLC: 64MB-512MB MLC:1GB-4GB (Optional) External Memory MAX 8G SD/MMC Movie ASF, AVI, MP4, 3GP, WMV Audio MP3, WMA, WAV Media Function...
Page 26: End User License Agreement
End User License Agreeement 1 The contracting parties 1.1 This Agreement has been entered into by and between Nav N Go Kft. (registered seat: 23 Bérc utca, H-1016 Budapest, Hungary; Company reg.no.: 01-09-891838) as Licensor (hereinafter: Licensor) and You as the User (hereinafter: User; the User and the Licensor jointly referred to as: Parties) in subject of the use of the software product specified in this Agreement.
Page 27 5.3 The owner(s) of the copyrights of the Database forming part of the Software Product is (are) the natural person(s) or corporate entity(ies) listed in the Appendix to this Agreement or in the “About” menu item of the operating computer programme (hereinafter referred to as Database Owner).
Page 28 7.2 The User may only use the contents available through the Software Product and provided by third parties and the data received through the services provided by third parties (including but not limited to the traffic data received from the RDS TMC traffic information service) for his/her own personal benefit and at his/her own risk.
Page 29 9 Sanctions 9.1 The Licensor hereby informs the User that, if the Licensor finds its rights under the Copyright Act to be breached, the Licensor may 9.1.1 Seek judicial recognition of this breach; 9.1.2 Demand that the breach cease and order the person in breach to refrain from continuing such actions;...
