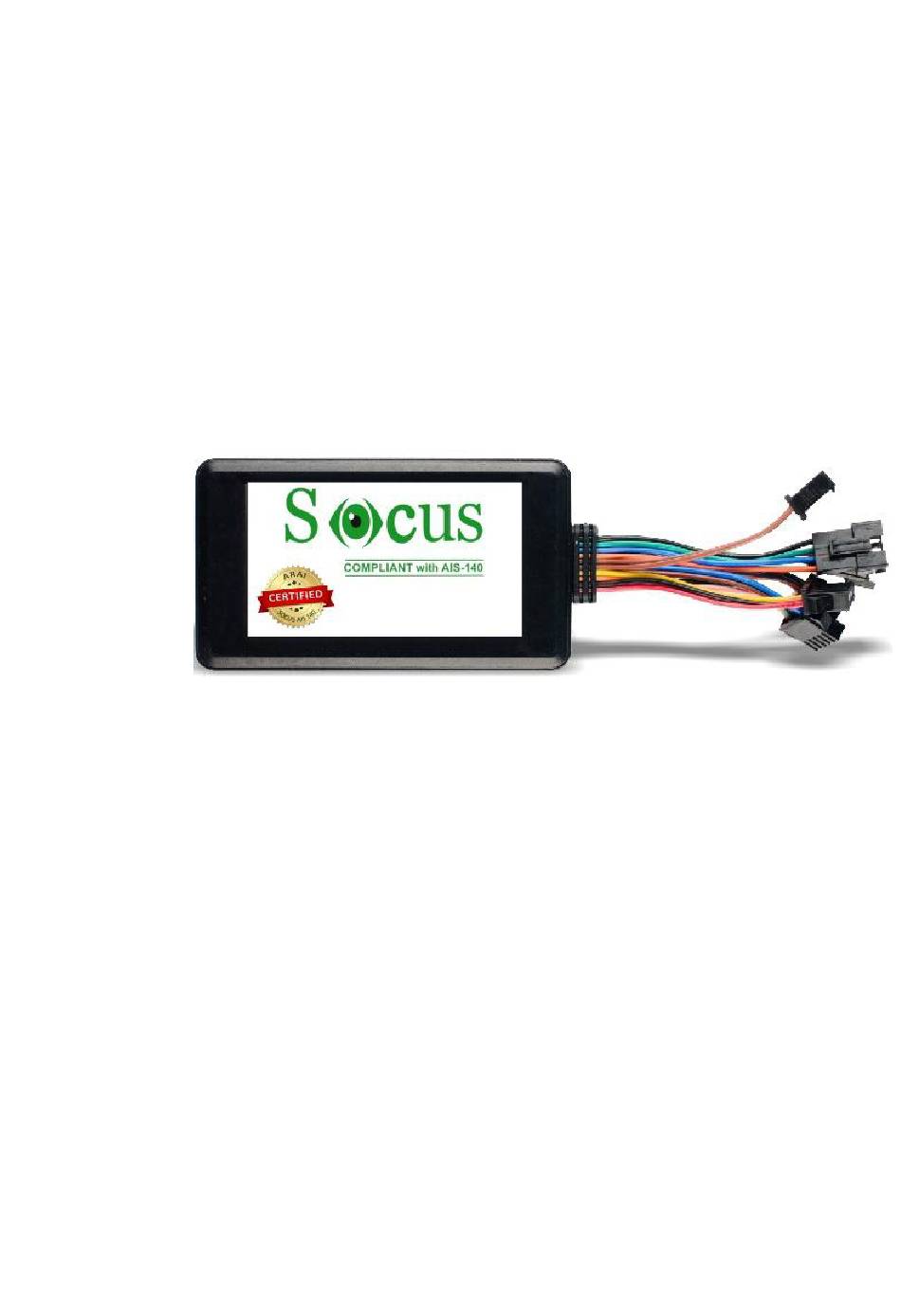

SOCUS 140 GPS tracker
In order to better understand this product, please read the instruction
manual carefully before installation.
1.
Product feature
GPS+IRNSS+LBS+AGPS
Real time tracking
User manual
(Version 1.5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Socus 140

  • Page 1 SOCUS 140 GPS tracker User manual (Version 1.5) In order to better understand this product, please read the instruction manual carefully before installation. Product feature GPS+IRNSS+LBS+AGPS  Real time tracking ...
  • Page 2 AIS 140 Compliant  SOS emergency Call  ACC detection  Remote power control  Remote listen in  RS232 RS485  Supports 3 IPs  Characteristics Size 98mm (L) x 56mm (W) x 18mm (H) Mechanical 80±5g Weight Interface...
  • Page 3 GPS L1 1575.42MHz C/A Code BeiDou2 B1 1561.098MHz C/A Code Capture sensitivity: -145dBm -162dBm Tracking sensitivity: Accuracy: 5m CEP Time to first fix: Cold start: <36.2 s @-130dBm (typ.) Warm Start<31.4s Hot start: <1s@-130dBm (typ.) Frequency Module:FIBCOM G500 GSM/GPRS 850/900/1800/1900 MHz Working voltage: 3.3 –...

  • Page 4: Firmware Features

    3-axis G-sensor For vehicle motion and static status detection LED Indication GPS/Cellular/ Cellular Internal Antenna Internal Accessories Working -20℃ ~ +70℃ Temperature Environment Storage -40℃ ~ +85℃ Temperature Humidity 5%～95%（no fog） Firmware Features  Emergency alert indication. Health monitoring packets. ...

  • Page 5: Products Overview

     Smart Analog input filter for fuel solutions.  One UART communication.  GPRMC out through UART.  Maintenance server.  Support 3 IPs connect.  Message ID (Event ID) based detection mechanism for faster detection of alerts.  NMR - Neighbouring 4 cell ID along with their LAC and signal strength, to i dentify accurate network ...
  • Page 6 GPRS Red LED Slow Blink：GPRS Connected Fast Blink：GPRS Unconnected Solid on：Module Error GPS GreenLED Solid on：GPS Position Slow Blink: LBS Position LED Off ：Unpositioned Backup Battery Switch Package...

  • Page 7: Device Installation

    1) Standard package  GPS140 main unit(Built in Battery)  4 core power cable  Velcro  User Manual , Warranty card 2)Optional accessories  Speaker  Lock relay  SOS button  Fuel Sensor  Microphone Device Installation 1. Please ask the professional people to install the equipment, any damages by misuse will not be covered by the warranty.

  • Page 9: Device Wiring Diagram

    Device Wiring diagram GPRS Red LED Slow Blink：GPRS Connected Fast Blink：GPRS Unconnected Solid on：Module Error GPS GreenLED Solid on：GPS Position Slow Blink: LBS Position LED Off ：Unpositioned Backup Battery Switch...

  • Page 10: Front Side

    Front Side serial port Black:GND Green:RXD Blue:TXD Orange:DCOutput Microphone Power cable Red: Power 9-36V Black:GND Orange：ACC White：power 12V/24V Yellow：Lock Output...

  • Page 11: Back Side

    Pin No Color Pin Name Description Black (-)Ground Green Serial Data Interface Rx Blue Serial Data Interface Tx Orange VDD 4V8 VDD 4V8_C Brown MIC- MIC- Brown MIC+ MIC+ Yellow Fuel CUT Fuel Orange ACCIN Black (-)Ground VCC+ Power 9-36V Back Side...
  • Page 12 5PINdetecting wire Pink：IOinput 2，voltage 0~36V Green： IOinput 1， voltage 0~36V Purple：IOoutput，0V or NC Brown： ADinput 2， voltage 0~5V Blue：ADinput 1，voltage 0~5V Speaker Pin No Color Pin Name Description Pink DIN2 Digital Input2，Voltage range 0-36V Green DIN1 Digital Input1，Voltage range 0-36V Purple DOUT1 Digital output1...
  • Page 13 Grey Black (-)Ground Orange SPK+ SPK+ Grey SPK- SPK- Configuration Com configuration  Set upload interval, command: SET$HC,T1,T2,T3# T1: upload interval in ignition on status, T2: Upload interval in ignition off status SET$HC :Query upload interval , unit is seconds ...
  • Page 14  Set time zone, unit is minute, command: SET$UTC, #,SET$UTC:Query, for example:  Set the low speed threshold and lasting time, command: SET$SPEED,V,T, V : Speed threshold, range from 0-255km/h, 0 means disable speeding detecting T:Speeding lasting time >=5seconds SET$SPEED,50,5 SET$SPEED:Query ...
  • Page 15  Set the IP/domain, port or communication type of the primary server, Command: SET$IPordns,port,type, for example: SET$IP,123.123.123.123,5288,T SET$IP:Query  Set IP/Domain, port and communication type of the secondary serve:IP2,ip or dns,port,type SET$IP2:Query Set IP/Domain, port and communication type of the third server: IP3,ip or dns,port,typeSET$IP3:Query Format is same as configuration of the primary server ...
  • Page 16  Set vehicle registration number:VEHI_NUM,name Set:SET$VEHI_NUM,KAQ0921200 Query: SET$VEHI_NUM  Set the upload interval in emergency status(via GPRS), unit is seconds:EMR_GPRS_T,T Set:SET$EMR_GPRS_T,10 Query:SET$EMR_GPRS_T  Set upload interval in emergency status( via SMS)EMR_SM_T,T, unit is seconds Set:SET$EMR_SM_T,2 Query: SET$EMR_SM_T...
  • Page 17  receiving number emergency status: RPTSM_NUM,numberSet:SET$RPTSM_NUM,13632830741 Query: SET$RPTSM_NUM  Set the upload interval of the health packet, unit is seconds:HEALTH_T,T Set:SET$HEALTH_T,5 Query: SET$HEALTH_T  Stop the emergency satus:EMRSTOP Set:SET$EMRSTOP...
  • Page 18  Open COM debugging info:SET$DEBUG=1 Close COM debugging info:SET$DEBUG=0  Input “get” to query all key parameters...
  • Page 19  SET$URL To get location info and hardware status  SET$NETSTS To get the terminal version and network status...
  • Page 20  SET$LOCKQuery power and fuel control status SET$LOCK=1 On SET$LOCK=0 Off  SET$BAKOUT Query backup output control status SET$BAKOUT=1 Back up output high SET$BAKOUT=0 Back up output low  SET$RESTARTRestart device  SET$RESET Restore to factory setting  SET$RPT_EMR_SM_NUMQuery SMS number for emergency status upload SET$RPT_EMR_SM_NUM=XXXXXXXXXXX Emergency number ...
  • Page 21  SET$Vehi_Owner_SM_NUMQuery authorize SMS number SET$Vehi_Owner_SM_NUM=XXXXXXXXXXX Authorize SMS number  SET$ReplyCarOwnerSMQuery authorize number enable and disable status SET$ReplyCarOwnerSM=1 Enable Upload SET$ReplyCarOwnerSM=0 Disable Upload  SET$HAS# Query ,E,S# SET$HAS Set and query hard acceleration parameters,E is 0 or 1，1: Enable，0:Disable S is speed value，unit KM/H Set query hard acceleration ...

  • Page 22: Sms Configuration

     SET$HRS# Query ,E,S# SET$HRS Set and query sharp turn speed parameters,E is 0 or 1，1: Enable，0:Disable S is speed value，unit is KM/H Remark: The sharp alarm only triggered when there is an angle HRT# Query ,E,S# Set and query sharp turn angle parameters,E is 0 or 1，1:Enable，0:Disable。 S is angle value，unit is Degree Remark: The sharp alarm only triggered when there is an angle 8.2 SMS configuration...
  • Page 23 LEVEL,S# Set vibration LEVEL,1# Set sensitivity to sensitivity maximum S:sensitivity ，1 / 2 / 3 / 4 / 5 represents the highest / middle / low / lowest , default value: 2 HC,T1,T2[,T3]# HC,30,90# Set the upload interval as T1: upload interval 30s and 90s in ignition on in ignition on status, 5-30s ,default...
  • Page 24 Default is off ZD,0# Disable vibration M: Alarm mode, alarm optional M=0:only GPRS,M=1:SMS+GP ZDT,<AT>,<DT># Vibration alarm time ZDT,2,5# setting Vibration alarm delay time：2 mins AT: Motion alarm Vibration alarm arm time：5 mins delay time unit： minutes, Range 1-10 mins， Default 3 mins DT: Motion alarm arm time, Unit ：...
  • Page 25 communication type TCP IP2,www.socusgps.in,8880,0# Set backup server domain www.socusgps.in，port 8880， communication type UDP IP2,,0,0# Delete back up server parameters IP3,ip or dns,port,type# Set IP or domain, IP3,123.123.123.123,8885,1# port communication Set emergency server IP type of emergency 123.123.123.123，port 8885， server communication type TCP IP3,www.socusgps.in,8880,0# Set emergency server domain www.socusgps.in，port 8880，...
  • Page 26 BAKOUT# Query and set Query : BAKOUT# BAKOUT=1# backup output ON : BAKOUT=1# Off : BAKOUT=0# control status BAKOUT=0# RESTART# Restart device RESTART# RESET# Restore to factory RESET# setting RPT_EMR_SM_NUM# Query and set SMS Query : RPT_EMR_SM_NUM# RPT_EMR_SM_NUM=XXXXX number for Set: XXXXXX# emergency status...

  • Page 27: Troubleshooting

    COPS,CHANGE# Switch to another network Trouble Shooting 9.1. Device not online in platform and APP Check the power cable is connect correct?  If SIM card is installed correctly?  Check the Red LED status, it is quick flash?  Send the query command check the setting.
  • Page 28 drive the vehicle to an open sky place. 9.5Command receiving abnormally Check the command format.  Check the vehicle is in the area where there is no GSM signal?  Check if the SIM card is properly installed.  Warranty instruction and server 10.1 The warranty is valid only when the warranty card is property completed, and upon presentation of the proof of purchase consisting of original invoice indicating the date of purchase ,model and serial No.of the product.
  • Page 29 10.4.Repair or replacement under the terms of this warranty does not provider right to extension or renewal of the warranty period. 10.5.The warranty is not applicable to cases other than defects in material, design and workmanship. 1. PC&MODULESEND=AT+COPS=? 2. PC&DEBUG=1 3.
  • Page 30 9.PC&CBLIDE# for clear blind data in device 10.Cold Start PC&GPSTEST=0# 11.Warm Start PC&GPSTEST=1# 12.HOT Start PC&GPSTEST=2# SMS COMMANS (GPSTEST,X# ‘X=0,1,2’) PC&GSMPWR=0# close gsm power. PC&GSMPWR=1# open gsm power. For gps sensitivity test PC&GPSTEST=5# PC&GPSTEST=6# PC&GPSTEST=7#...
