CyberKey Vault 20®
Mounting Instructions
1.
Use a CyberKey to open the CyberLock at the bottom
of the display/card reader panel. Lift the panel outward
from the bottom and pull down to disengage the tabs
which hold it in place. See Figure 1.
Disconnect the three cables attached to the panel and set
the panel aside.
2.
Temporarily connect power to the unit in order to operate
the door latch release mechanism. See Figure 2.
3.
Press the door release button and open the door, then
disconnect the power cable. See Figure 3.

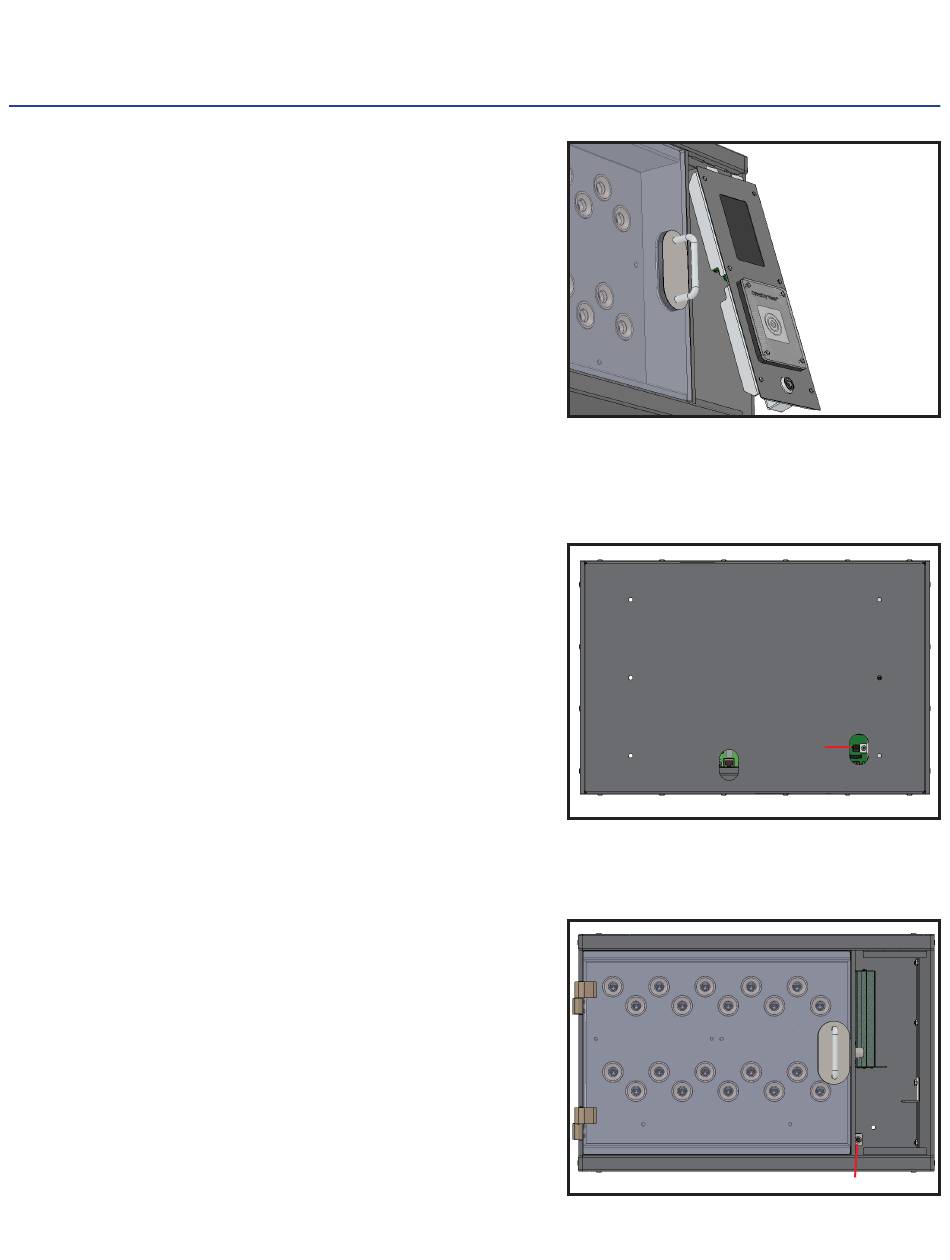

Figure 1: Remove Display/Reader Panel
BACK VIEW
Figure 2: Connect Power
Figure 3: Release Door
Power
Door Release
Advertisement
Table of Contents
Summary of Contents for CyberKey Vault 20
- Page 1 CyberKey Vault 20® Mounting Instructions Use a CyberKey to open the CyberLock at the bottom of the display/card reader panel. Lift the panel outward from the bottom and pull down to disengage the tabs which hold it in place. See Figure 1.
- Page 2 If the backup battery is installed, disconnect the attached cables and remove it from the cabinet. Remove the key tray assembly by first sliding it to the right () to disengage the tabs which hold it in place. Align the divider panel with the cutouts in the top and bottom plates of the cabinet, then pull the assembly straight out ().
- Page 3 Figure 7: Reinstall Tray Assembly Reconnect the three cables removed from the display/ card reader panel in Step 1. Locate the document titled “CyberKey Vault 20 Battery ® Installation Instructions” in the documentation package and follow the steps outlined to install the backup battery and re-install the display/card reader panel.
