Summary of Contents for SpacePole SPK200

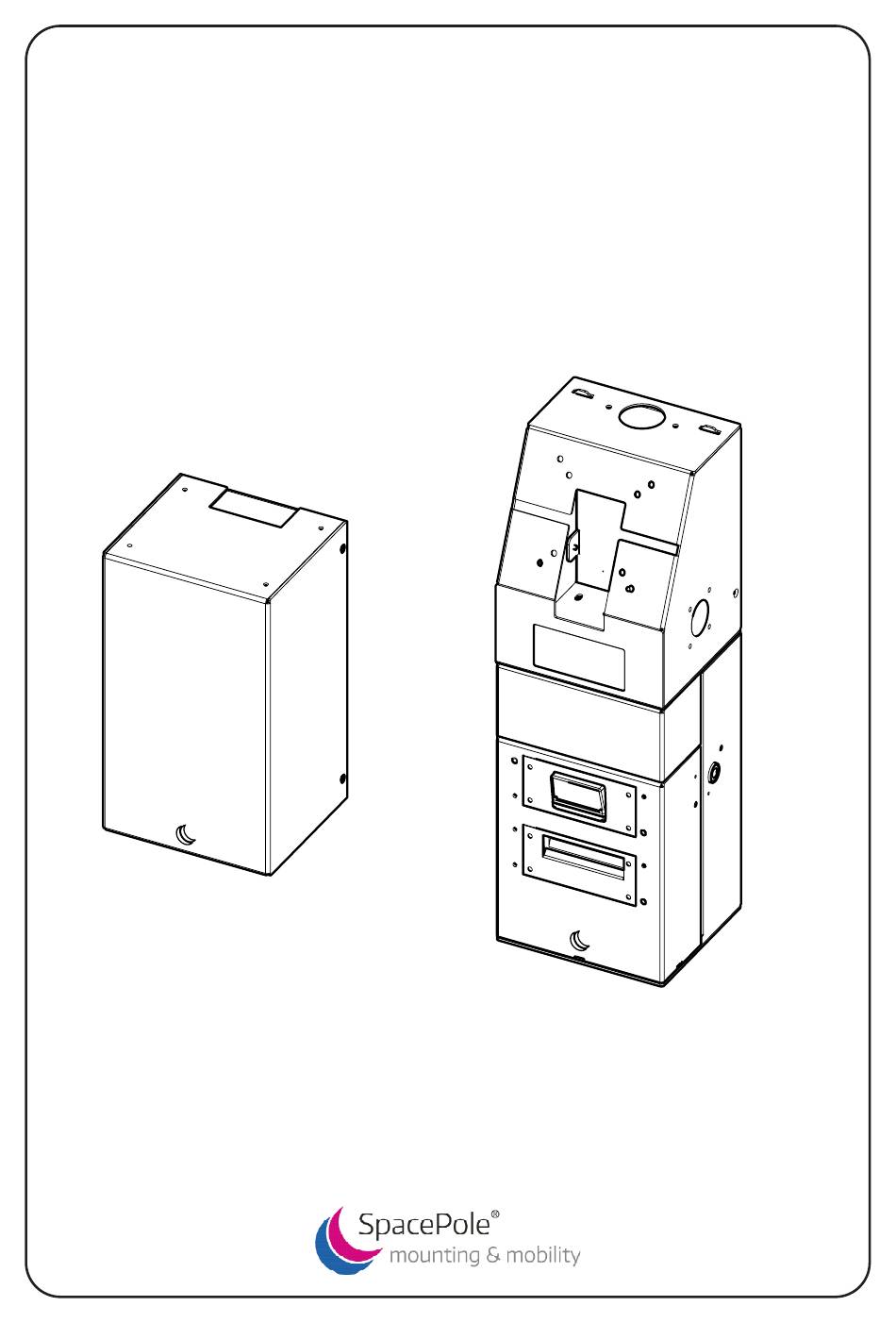

- Page 1 Installation Guide SPK200, SPK20X, SPK5XX Center module for the SpacePole Kiosk MK15-0342 version 1.0 3/2022...
- Page 2 SPK200 SPK20X x4 M5x6 x8 M4 flange nuts x4 M5x6 x1 M3x6 x4 M4x8 countersunk SPK5XX Assemble the parts Install screen x4 M5x6 x4 M4x8 Place the top module on the center module Secure it with the screws supplied...
- Page 3 Run cables Install to counter Two options for cable management Fixings not included: It is the For large screens: responsibility of the installers to Remove cutout from the bottom of the top ensure the correct fixings are used module for alternative cable managent for the Install backplates x6 M4x8 countersunk...
- Page 4 Install scanner and Assemble the parts cover x4 M5x6 x2 M3x6 x4 M4 flange nuts Note that the scanner must be mounted on Place the top module on the center to the bracket prior to module installing the bracket and cover to the front b Secure it with the screws supplied of the Center module Install screen using...
- Page 5 Run cables Install to counter Two options for cable management Fixings not included: It is the For large screens: responsibility of the installers Remove cutout from the bottom of the top to ensure the correct fixings are module for alternative cable managent used for the Run cables and install Printer installation...
- Page 6 Close and lock the door Close and lock the door Push in the lock with the key Lock the door with the key...
