AGNEUS AGPC1040S User Manual

12V/24V battery auto detection 10A PWM Shunt Solar Charge Controller
General Safety Recommendations
1. Batteries stores a large amount of energy. Under all circumstances, never short circuit a Battery. We
recommend connecting a fuse directly to the positive battery terminal, adjusted to the maximum intensity of
use and without overpass the nominal intensity of AGNEUS Regulator.
2. Batteries can produce flammable gases. Avoid making sparks using fire or any naked flame. Be sure that the
battery room is ventilated.
3. Avoid touching or short circuiting wires or terminals. Use isolated tools, remains always in dry floor and keep
your hands dry.
4. Keep children away from batteries and the charge regulator.
5. Please, observe the safety recommendations of the battery manufacturer. If you have any doubt, consult your
seller or installer.
Intended Use
The charge regulator is designed to be used in a isolated photovoltaic system for a Lead-acid battery with 12V or 24V of
nominal voltage.
Liability Exclusion
The manufacturer shall not be able for damages, especially on the battery, caused by use other than as intended or as
mentioned in this manual, or if the recommendations of the battery manufacturer are neglected. The manufacturer shall
not be liable if there has been service or repair carried out by any unauthorized person, unusual use, wrong installation
or bad system design.
Opening case voids warranty.
General Description
The battery charge regulator AGNEUS AGPC1040S is a PWM shunt Lead acid battery Solar charger for 12V or 24V,
the system automatically detects the nominal voltage of the battery and can charge till 10A of output current, equivalent
to 240W for 24V battery or 120W for 12V battery.
Moreover, it makes an active control of photovoltaic module and loads, to protect battery from overcharge and
extended uses without finishing a deep battery charge or equalization charge.
Street Light Controller: Lights are automatically started at night, by hourly schedule (factory programmed) or full night till
sunrise.

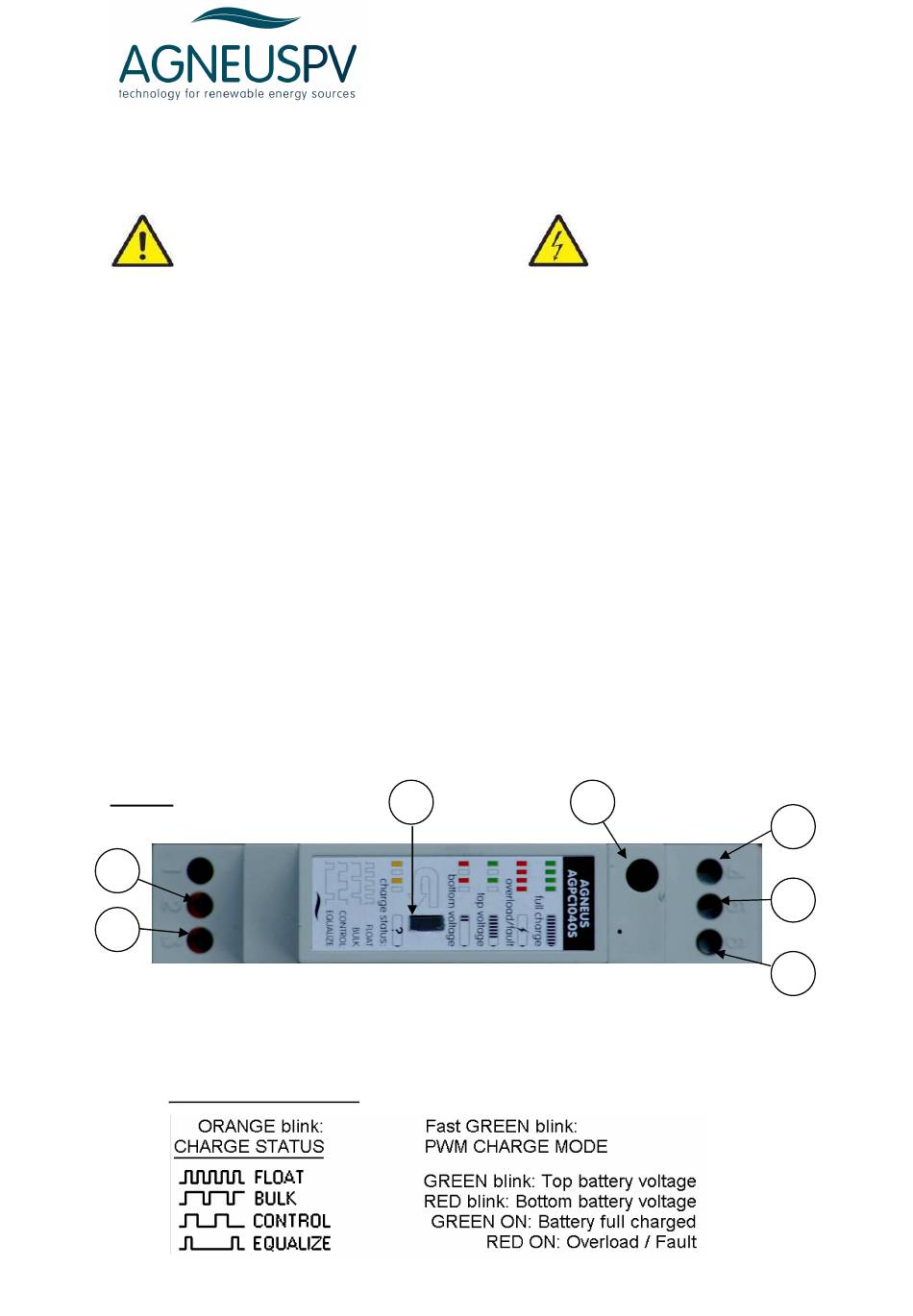

Figure 1
2
3
1. Switch on Loads LED indicator (*)
2. Positive of Photovoltaic module PV+
3. Negative of Photovoltaic module PV-
4. Positive of the output for user's loads OUT+
5. Positive of battery BAT+
6. Negative of battery BAT-
7. Battery State LED indicator: alternate 1 minute function charge status / battery condition
(*) Only available for Street Light Controller models
AGNEUS AGPC1040S
Street Light Controller
7
User's Manual
READ BEFORE TO INSTALL
1
4
5
6
