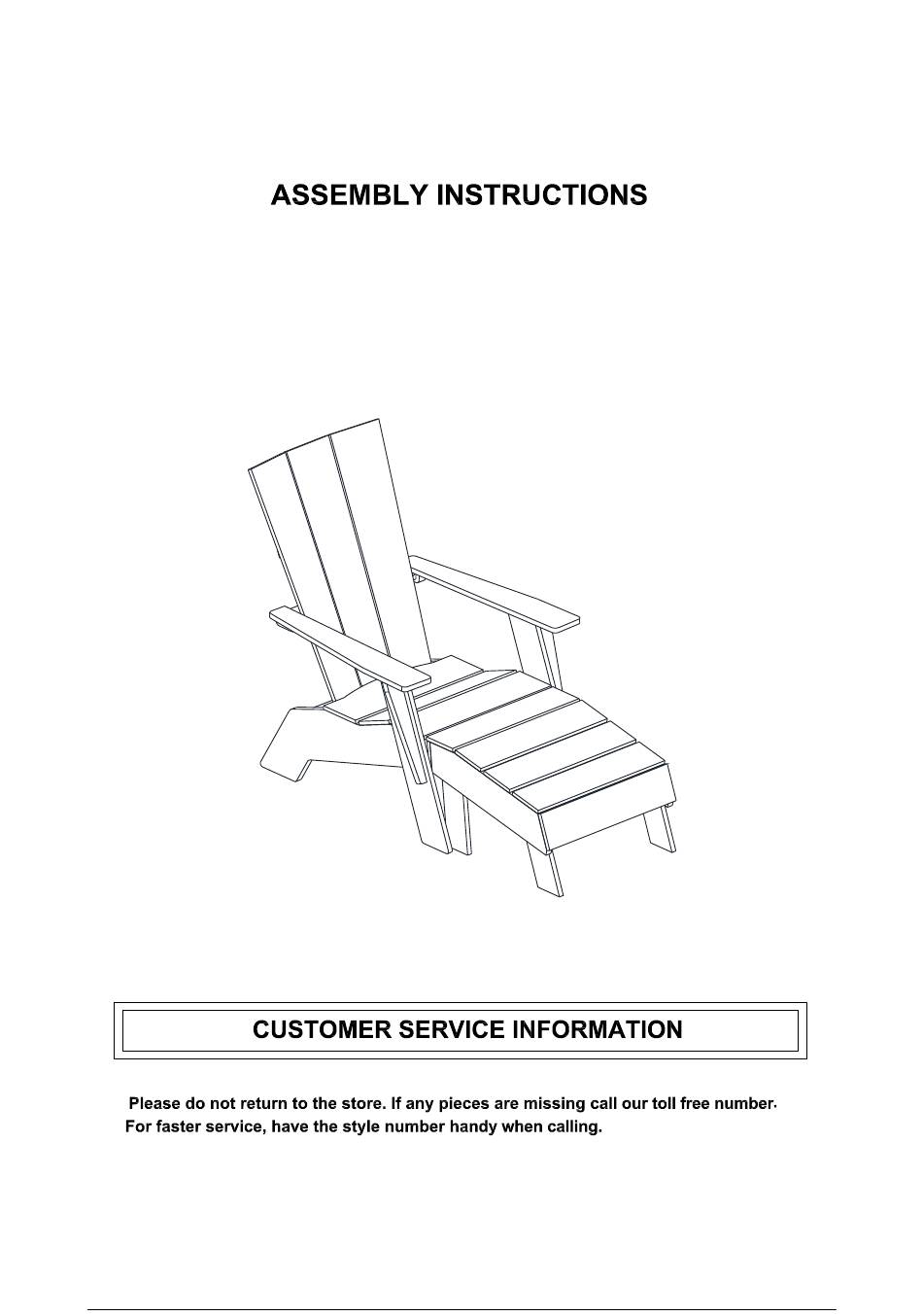

- Page 1 White Oak Adirondack Chair With Ottoman...
- Page 2 A. Seat B. Backrest C. Right leg frame D. Left leg frame E. Right armrest F. Left armrest G. Seat board QTY: 4pcs QTY: 2pcs QTY: 1pc J. Wood pin K. Allen key H. 1 1/4" Bolt I. 1 1/2" Bolt QTY: 10pcs QTY: 4pcs QTY: 6pcs...
- Page 3 L. Ottoman M1. Front leg frame(long) M2. Back leg frame(short) QTY: 1pc QTY: 2pcs QTY: 2pcs H. 1 1/4" Bolt QTY: 8pcs...
- Page 4 STEP 1 STEP 2 Attach the seat board (G) into seat (A). and secure with 1 1/4" bolt (H) as shown. Tighten the bolts using Allen key (K). Attach the Right leg frame (C) into seat (A). And secure with 1 1/4" bolt (H) as shown. Tighten the bolts using Allen key (K).
- Page 5 STEP 7 STEP 8 Attach the Right/Left armrest (E/F) into assembly frame. And secure with 1 1/2" bolt (I) as shown. ASSEMBLY COMPLETE. Tighten the bolts using Allen key (F). STEP 9 STEP 10 Put the Ottoman (L) face down on clean flat surface. Attach the Front leg frame/long (M1) and Back leg frame/short (M2) into Ottoman (L).
