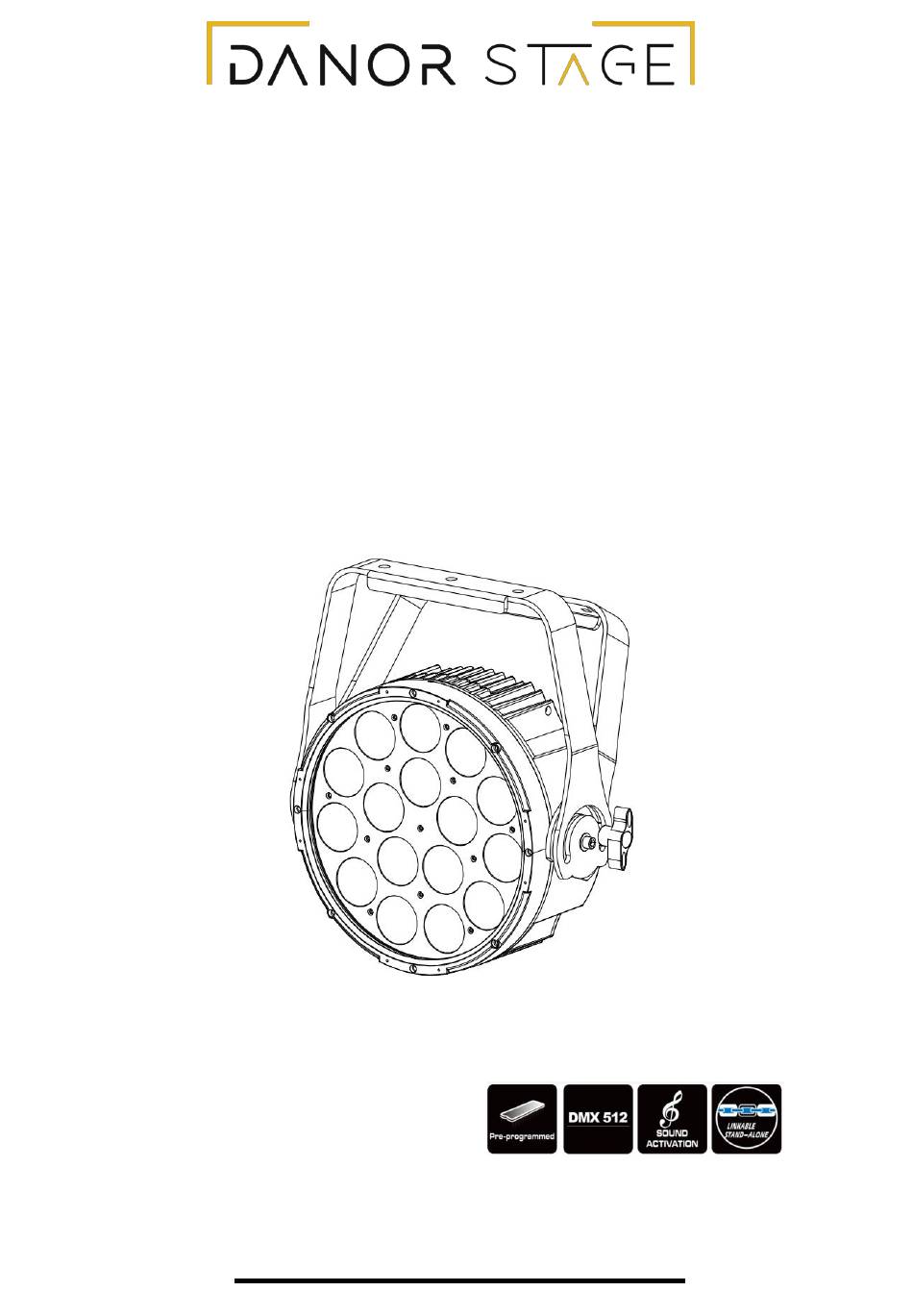

- Page 1 LP-300 18*12W LED PAR WATERPROOF USER MANUAL Please read carefully before using the product...
-
Page 2: General Introduction
These instructions contain important safety and use information. This LP-300 shall be an IP-65 rated PAR color changer with (18) 12W 4-IN-1 RGBW LEDs. shall operate flicker-free with an average LED life of 100,000 hours. And shall be capable of emitting 3,950 Lux @ 3m. - Page 3 1. SECRUITY WARNING. DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 65.6 FEET (20 METERS) MAXIMUM TEMP OF EXTERNAL 90°C,MINIMUM DISTANCE OF INFLAMMABLE...
-
Page 4: Technical Parameters
not attempt to repair it alone. Non-professional maintenance alone can cause damage and functional failure. Please contact the authorized Technical Assistant Center nearby. ■ Do not touch the power supply during operation. High voltage may cause electric shock hazard. ■ Replacement is necessary when obvious damage occurs to the housing, lens or ultraviolet filter. - Page 5 3. OVERVIEW 3.1 INSTALLATION GUIDELINES. MOUNTING THE FIXTURE ON A TRUSS USING CLAMP When mounting the fixture to a truss, be sure to secure an appropriately rated professional grade rigging clamp (not included) to the closed dual yokes using an M10 screw fitted through the center hole of the closed dual yokes.
-
Page 6: Display Control
ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED NVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS. 4. DISPLAY CONTROL. MENU：FUNCTION UP：+ DOWN：- ENTER：CONFIRM... -
Page 7: System Menu
5. SYSTEM MENU. ：DMX standard 8CH mode( press UP/DOWN key to select the DMX values 1-512, Press Enter key to save) ：DMX simple 4CH mode. ：Slave mode. ：Gradually change mode(press UP/DOWN to select speed at 1-50, press ENTER to save) ：Jump change mode( press UP/DOWN to select speed at 1-50, press ENTER to save) ：Pulse change mode( press UP/DOWN to select speed at 1-50,... -
Page 8: Dmx Channels
：Sound control mode. ：Master mode (Slavers set as d001) 6. DMX CHANNELS. 4 Channels mode(D001) Value Function description 0-255 RED(0-100%) 0-255 GREEN(0-100%) 0-255 BLUE(0-100%) 0-255 AMBER (0-100%) 8 Channels mode(A001) Value Function description 0-255 RED(0-100%) 0-255 GREEN(0-100%) 0-255 BLUE(0-100%) 0-255 AMBER (0-100%) 0-255 COLOR MACRO... -
Page 9: Troubleshooting
7.TROUBLE SHOOTING. 7.1 MAINTENANCE GUIDELINES. DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. - Page 10 Please refer to the following points during routine inspections: • A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating. • Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall.
