TECO EOCR-DS3 Instruction Manual

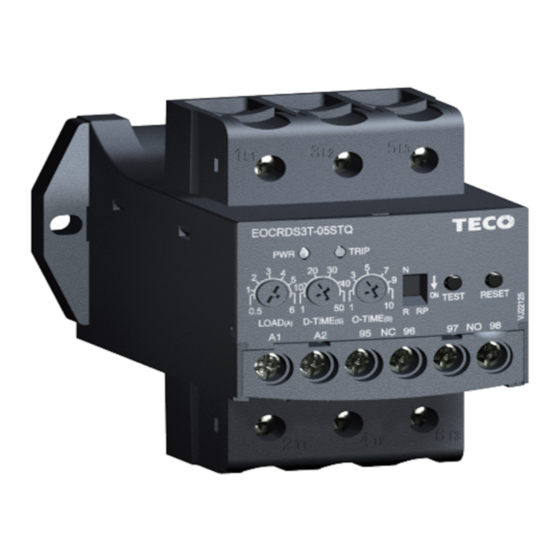

EOCR-DS3(T) Instruction Manual
EOCR-DS3
Trip Time
Setting
Rate Insulation
Voltage
Control Voltage
(50/60Hz)
Rating
N (Fail safety)
Normally energized
R (N Fail safety)
Normally de-energized
Manual ： Reset by depressing
RESET button
Reset
Electrical (Remote):Reset by
interrupting power supply
Ambient Temperature
(Operating)
Ambient Temperature
(Storge)
Between casing & circuit：
2kV (60Hz) for 1 min.
Between contacts:
Dielectric Strength
1kV (60Hz) for 1min.
Between circuits：2kV (60Hz)
for 1 min.
2W below
Consumed Power
Definite
Time Characteristic
Trip Indication 2-LED
Mounting 35mm Din Rail or Panel
EOCR-DS3T
Sec.(Adjustable)
Sec.(Adjustable)
LOAD knob
D-TIME knob
D-TIME knob
LED (Trip)
LED (PWR)
LED Indication
LED / LED Indication
Motor Status
Green LED (PWR)
1
Stop (Power Input)
ON
2 Starting
Flashing
Normal Running ON
3
ON
4 Overloading
5
Trip Over-current
OFF
OFF
Locked Rotor
OFF
R
Phase
S OFF
Loss
T
OFF
Reverse Phase (RP)
DS3(T)
1. When commissioning, set start delay (D-Time knob) to known
motor run-up time, or to the maximum, if not known.
2. Set trip delay time (O-Time knob) to desired trip delay time.
3. Set load current (LOAD knob) at the rated full load or desired
currents.
4. With connections made and control power on, depress TEST
button and hold. Verify the orange LED illuminates and the
internal relay should switch contacts after the sum of D-Time
and O-Time. Depress RESET button.
5. Start the motor and notice run-up time. Then, slowly turn the
LOAD knob , until orange LED flashes, where the 100% of
the actual load current is indicated. Set the LOAD knob to the
desired trip currents.
110～125% Setting of running current is recommended.
6. Reset D-Time knob setting to normal run-up time.
7. Periodic testing with TEST button is recommended to ensure
the full protection and regularly as a preventive maintenance.
Relay output
Control Power
LED / LED Indication
Orange LED (TRIP)
OFF
Flashing
OFF
Flashing
ON
Flashing
Flashing
Flashing
Flashing
2 LEDs flash altermatively
TAG
Reset
Test
DIP SW
(Fall Safety Mode
(N/R)；RP
On/ Off)
