Zubr V1 Installation And Operation Manual

Voltmeter for professionals
V1
Technical data sheet ,
installation and operation manual
V digital 1 single -phase voltmeter ( hereinafter referred
to as the device ) is designed to monitor the voltage
of a single-phase network .
The device stores the maximum and minimum mains
voltage in non-volatile memory. Stored values can
be reset.
IN THE BOX
1 piece
Digital single-phase voltmeter
ZUBR V1
Technical data sheet ,
installation and operation manual 1 piece
and warranty card
The packing box 1 piece

TECHNICAL DATA

Power Volt not less than 100
not more than
Device weight 0,1 4 kg
Overall dimensions 53 х 85
( × w h × ) d
Degree of protection
GOST14254
Power consumption not more than 1,5 kWt*h
Connection not more than 16 mm
Before the installation and operation
of the device, PLEASE READ BY THE END
OF THIS DOCUMENT. This will help to avoid
possible danger, mistakes and
misunderstandings .
NON-VOLATILE VOLTMETER STORAGE
saves all settings in the event of a power outage.
IT IS FORBIDDEN TO POWER THE DEVICE
FROM SOURCES WITH A MODIFIED SINE
WAVE, uninterruptible power supplies whose
output voltage is not a sine wave. Long operation
(more than 5 minutes) from the following sources
voltage may damage ZUBR and lead to not
warranty repair.

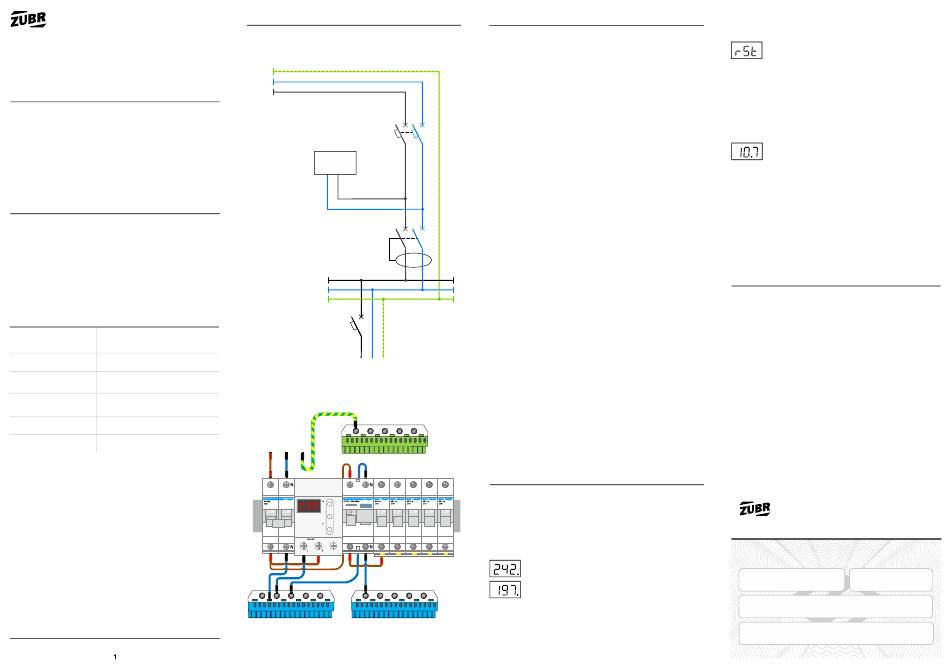

CONNECTION SCHEMES
Voltage for measurement and supply (100–420 V, 50 Hz)
is applied to terminals 1 and 2.
PE
N
L
Input
QFinput
40 А
KV
Voltmeter
ZUBR V1
1 2
QD
63 A
300 mA
L
N
PE
QF1
16А
С16
V
420 V
±10 %
Scheme 1. Option of wiring diagram
х 66 mm
IP20
/ month
INPUT
2 L N РЕ
max
reset
min
ZUBR V1
~ V
Scheme . Option of the connection diagram 2
2
INSTALLATION
The appliance is intended for installation inside residences.
The risk of moisture or humidity in the installation site
should be minimal. When installing in the bathroom, toilet,
kitchen, pool appliance must be located in a shell with
protection degree not below IP55 per GOST 14254 (partial
protection from dust and waterproof in any direction).
The ambient temperature during installation should
be within –5...+45 °С.
The appliance is installed in a special box, which allows
to conduct the easy installation and operation. Cabinet
should be equipped with standard mounting rail 35 mm
width (DIN rail). The appliance takes in width of three
standard module on 18 mm. The height of the appliance s
should be in the range 0,5...1,7 m from the floor.
To connect your device:
— fix the appliance on the mounting rail (DIN);
— take a wire;
— make the connection according to the passport.
Necessarily need to set in front of the appliance,
the automatic circuit-breaker (QF) (see schemes 1, 2).
To protect person from electric shock leak is set safety
shutdown device (QD).
Terminals of the device designed for wire cross section
up to 16 mm . To reduce mechanical load on the terminals ²
it is desirable to use soft wire. Clean the end wires
of 10 ±0,5 mm. If end is longer, it can cause a short circuit,
and if short — cause unreliable connection. Use the cable
lugs. Undo the screws of the terminals and insert tipped
end of the wire in terminal. Tighten terminal with derived
average 2,4 Н·m. Low tight may lead to low contact and
overheating terminals and wires and over tight — damage
terminals and wires. Wires protracted in terminals with
a screwdriver with a shank width not more than 6 mm.
Screw with shank width more than 6 mm may apply
mechanical damage to terminals. This could result in loss
of warranty.

EXPLOITATION

When turned on, the voltmeter immediately begins
to measure and display the value of the mains voltage.
Viewing the minimum and maximum
voltage
To view the maximum voltage stored
in the memory, press the top button and
to view minimum voltage, press lower
button. The display of voltage values
is accompanied by the glow of dots
in the rightmost category of the screens.
Five seconds after the last pressing of the buttons,
the voltmeter will return to displaying the mains voltage.
3
Resetting the stored maximum and
minimum voltage
A short press on the middle button will
display «rSt» on the screen. When
the button is released, the voltmeter will
erase all stored voltage values from
memory.
Five seconds after the last pressing of the buttons,
the voltmeter will return to displaying the mains voltage.

Viewing of firmware version

To view the firmware version, hold
the middle button for 12 seconds.
WARRANTY TERMS
The warranty for ZUBR devices is valid for 60 months
from the date of sale, provided that the instructions
are followed. The warranty period for products without
a warranty certificate is counted from the date
of production.
If your device is not working properly, we recommend that
you first read the section «Possible problems». If you
cannot find an answer, contact Service Center. In most
cases, these actions resolve all issues.
If you continue to have issues with the device, please
send it to a Service Center or to the store where you
purchased the device. If your device is defective due
to our fault, we will repair or replace it under warranty
within 14 business days.
Please see the full text of the warranty and the data you
need to send to your Service Center on the website
https://www.ds-electronics.company. If you have
a warranty case, please, contact the General distributor
in your area.
