Strand Vision.Net DMX Quick Start Manual

VISION.NET DMX MODULE
(1 UNIVERSE)

OVERVIEW

This document provides installation and operation instructions for the following product(s):
P ROD UCT NA M E

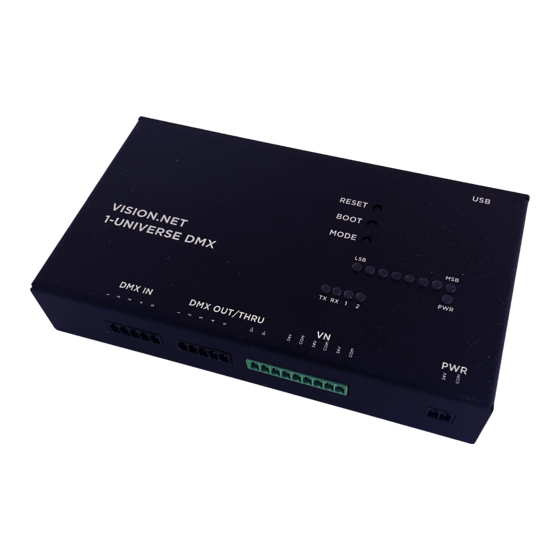

Vision.Net DMX Module (1 Universe)

INSTALLATION AND SET UP

DIN RAIL MOUNTING

To mount Vision.Net DMX Module (1 Universe) on compatible TS35/7.5
DIN rail:
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
To remove unit(s) from DIN rail:
Step 1.
Step 2.

SURFACE MOUNTING

1
3
To mount Vision.Net DMX Module (1 Universe) on a surface:
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Step 6.
Tilt the module backwards slightly.
Fit the module over the top hat of the DIN rail.
Slide module down until fully engaged with the top hat.
Push the module forward to engage to the DIN rail fully.
Gently rock the module back and forth to assure it's locked
in place.
Turn off and disconnect wiring.
Gently pry the module from the bottom using a slotted
screwdriver if required.
4
Determine appropriate orientation of your module for your application - vertical or horizontal.
Using the surface mount bracket as a template mark the location of the keyholes on the mounting
surface.
Install appropriate fasteners for your application. The keyholes accept two #6 rounded head screws.
Remove DIN rail bracket from module by removing two Phillips head screws with a #2 driver. Save
bracket for future use.
Attach surface mount bracket to module using two Phillips head screws observing the desired orien-
tation.
Hang the module on the fasteners installed in Step 3 and hand-tighten.
2
Click
1
QUICK START GUIDE
443581626889
ORDER C ODE
53904-401
