Please read and follow all of the instructions & safety precautions detailed below prior to using this
product. Failure to do so may result in serious personal injury and / or property damage.
•
Avoid dropping this product (or any other heavy impact which might damage the product)
•
Wipe clean with damp cloth. Wipe dry and store indoors. Avoid cleaning this product using
chemical substances and do not soak this product.
•
Adult assembly required.
•
CHOKING HAZARD – Small parts. Not for children under 5 years old. This product is not a
toy.
EC138 Specifications
Product Size: 11 ½" x 9 ¾" x 11 5/8" / 29.2cm x 24.8cm x 29.5cm
Net Weight: approx. 908g / 32 ounces
Included in the box:
Vertical board x 1

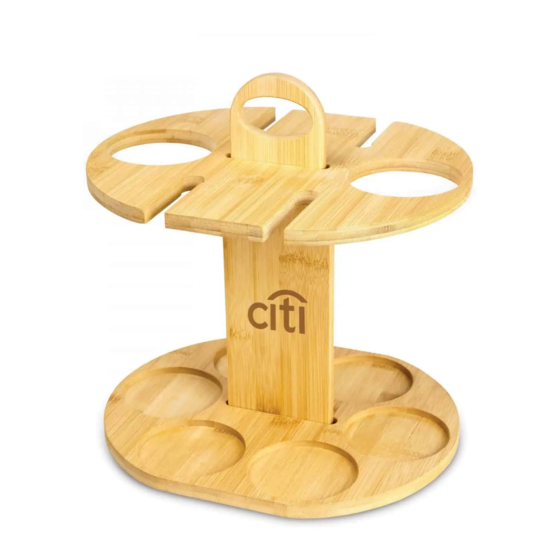

EC138 Product Map
WARNING
Safety Precautions
EC138 Assembly Manual
Top plate x 1
Bottom plate x 1
No
1
2
3
4
Screw x 3
Allen key x 1
Description
Top plate
Vertical board
Bottom plate
3 screws
Advertisement
Summary of Contents for SPECTOR HOME EC138
- Page 1 • CHOKING HAZARD – Small parts. Not for children under 5 years old. This product is not a toy. EC138 Assembly Manual EC138 Specifications Product Size: 11 ½” x 9 ¾” x 11 5/8” / 29.2cm x 24.8cm x 29.5cm Net Weight: approx.
- Page 2 1. Place vertical board (see #2 on Product Map) onto the center of bottom plate (see #3 on Product Map) and use provided tool to secure the 3 screws (included). 2. Place top plate onto the vertical board. EC138 – Assembled and In Use...
- Page 3 Risque d’étouffement. Petites pièces. Déconseillé pour enfants en-dessous de 5 ans. Ce produit n’est pas un jouet. Manuel d’assemblage du EC138 Spécifications du EC138 Dimensions du produit : 11 ½po x 9 ¾po x 11 5/8po / 29.2cm x 24.8cm x 29.5cm Poids net : environ 908g / 32 onces Inclus dans le boîtier :...
- Page 4 1. Placer la planche verticale (#2 du diagramme du produit) sur le centre de la plaque inférieure (#3 du diagramme du produit) et la fixer en vissant les 3 vis (inclus). 2. Placer la plaque supérieure sur la planche verticale. EC138 – Produit assemblé et en utilisation...
- Page 5 Riesgo de asfixia. Piezas pequeñas. No aconsejable para niños menores de 5 años. Este producto no es un juguete. Manual de montaje del EC138 Especificaciones del EC138 Dimensiones del producto: 11 ½pu x 9 ¾pu x 11 5/8pu / 29.2cm x 24.8cm x 29.5cm Peso neto: aprox.
- Page 6 Montaje del EC138 1. Ubicar la plancha vertical (#2 del diagrama del producto) en el centro de la placa inferior (#3 del diagrama del producto) y fijarla atornillando les 3 tornillos (incluidos). 2. Ubicar la placa superior sobre la plancha vertical.
