Summary of Contents for Fookoo DY101

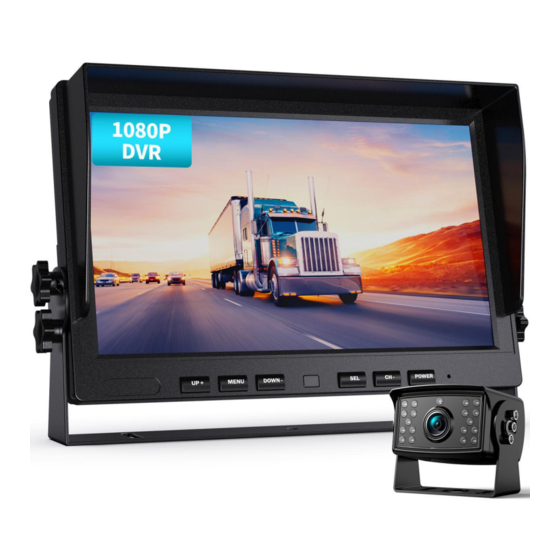

- Page 1 Fookoo HD Wired 10" Backup Camera System (DY101) Installation and Operation Guide...
- Page 2 PLEASE NOTE: Before operating this backup system, please read these instructions completely. We recommend that you retain this guide with the system as a ready reference. If you have any questions, or if you require technical support, Huangiem@yahoo.com please contact us at this email address: ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 WHATS IN THE PACKAGE ................. １ 2 SAFETY PRECAUTIONS ................２ 3 SYSTEM DESCRIPTION ................２ 3.1 Monitor ..................２ 3.2 Camera ................... ５ 3.3 Camera Cable ................. ５ 3.4 Remote Control ................６ 4 SYSTEM INSTALLATION ................６ 4.1 Take the Time to Make an Installation Plan ........ -
Page 4: Whats In The Package
1 WHATS IN THE PACKAGE Congratulations! Our Fookoo back-up camera system will provide many years of reliable service, because our monitors, cameras and cables are of the highest quality. Please examine the shipping box to see if there are any signs of rough handling. Unpack the box carefully and verify that each item shows no signs of shipping damage. -
Page 5: Safety Precautions
2 SAFETY PRECAUTIONS To operate properly, this back-up system requires the monitor to be connected to a 9-36 Volt Direct Current power source (Current limited 1.2A). To avoid an electric shock injury or damage to the system, we recommend that a qualified technician with appropriate training and experience be obtained to perform this critical connection. - Page 6 3.1.1 Red Tag There is a protective film on the screen, it is used to remove it. Please be careful to remove. 3.1.2 SD Card Access Port An SD card access port is located on the top right side of the monitor. The SD card is the primary storage device on the monitor, onto which camera video imagery is captured.
- Page 7 MENU Press it to enter menu panel; press it one more can exit the panel. Movie Mode Still Capture Clock Settings Media Tool General Settings Language （3）DOWN-: Function Decrease Button No effect on the main interface. In the menu state, press it to select between these 6 menu options. In the parameter, press it to discrease, for example, if the “Brightness”...
-
Page 8: Camera
In the main interface: you can press the SEL button to turn on/off recording(if you have SD card inside the system). In the options of menu: you can press it to confirm selection. Such as, if you want to adjust brightness, you need to: press MENU to enter menu setting - press UP+ / DOWN- to choose “Movie Mode”... -
Page 9: Remote Control
connector is fitted at one end and a female connector is fitted at the other end. This arrangement enables each cable to connect to the camera at one end and the monitor harness at the other end. *If you need more cables, please contact us for it: huangiem@yahoo.com 3.4 Remote Control The system is equipped with a remote control, the remote control is... -
Page 10: Suggested System Installation Sequence
4.2 Suggested System Installation Sequence Based on our experience, we recommend that you follow this installation sequence: Assemble Installation Tools Install the Monitor Connect the Power Supply Connect the Trigger Wire(s) Install the Cable Install the Camera ... - Page 11 4.2.2 Wiring Schematic Diagram 4.2.3 Power Supply Safety If you are not confident that you can make the following electrical connections safely, then please have these connections completed by a technician. Before connecting the power supply to the system, please ensure that voltage of the battery or power source is 9-36 DC Volts.
- Page 12 Option 1–System is mounted in a Vehicle Option 2–System is mounted in a Static Location such as a bus station monitoring system, site security system, etc 4.2.5 Option 1–Vehicle Power Installation The power supply is normally a storage battery (9-36 Volts). ...
- Page 13 4.2.7 Install the Camera Cable Your plan will define the routing of each of the camera cables. When the cables are being installed, please observe the following procedures: Use light color tape to label each end of the camera cable to mark its designated CH number so that there is no confusion when you connect the cameras and their cables to their respective harness CH sockets.
- Page 14 4.2.9 Connect the Camera Cables to the Monitor 8-pin connector to Monitor 4-Pin Aviation Video Cable Please exercise care when you connect the cables together. Both the 8-pin Connectors harness cable and the 4-pin aviation video cables have pins one end that line up with holes on the other end.
-
Page 15: System Operation
4.2.12 Secure the Cables When the system is set-up the cables may now be properly secured and stowed. Use plastic split-shield cable covers where appropriate to protect the cables in open areas. Secure the cables using adhesive 3M type ¼” cable clips and/or zip ties. -
Page 16: Read Before Use
Software Management System Panels and Sub-panels Logo Main-panels Sub-panels Movie Quality, Movie Clip Time, Movie Off Time, Auto Movie Mode Record, Sound Record, To MoviePlayback Still Capture Still Quality, To PhotoPlayback Clock Settings Set the Year, Month, Day and Time Media Tool Format SD-Card Rotate, Car ACC Line, AHD1 Mirror, AHD2 Mirror, Date... - Page 17 5.2.2 Movie Clip Time This determines the length of each video: Off, 1 min, 2 min, 3 min, 5 min, 10 min. If you choose “Off”, then the system will keep recording a long video until you stop or power off it. 5.2.3 Movie Off Time This is the time of the system's flameout recording: 0 min, 5 sec, 30 sec, 1 min, 3 min.
-
Page 18: Still Capture Panel
“SEL” button to confirm. And press “MENU” button, it will pop up a window showing options: Delet, Protect, To PreviewMode. (Delect: delect the videos; Protect: protect the videos; To PreviewMode: the screen can exit it and back to the main panel.) Press “UP+”/”DOWN-” button to select and press “SEL”... -
Page 19: Media Tool Panel
OK, and then Press “UP+” / “DOWN-” button to change the number. For example, if you confirm the Year and want to change Month, just press “SEL” button to the next. Finally, choose the OK and press the “SEL” button to save and back to previous panel. - Page 20 5.6.3 AHD2 Mirror The AHD2 image can be set Mirrored with this function. Fox example, if you install the AHD2 camera on the front of your vehicle, you can mirror it to get the correct image. 5.6.4 Date Format There are 4 styles to choose from: None, YYYY MM DD, MM DD YYYY, DD MM YYYY.
-
Page 21: Language
5.7 Language Panel There are 4 language: English/Vietnamese/Simplified Chinese/Traditional Chinese , it defaults to English. You can press “UP+” / “DOWN-” buttons to choose the language you want, and then press “SEL” button to confirm. (Pressing “MENU” button can return to previous panel.) 6 Troubleshooting 6.1 Turn Off the Screen ... - Page 22 If you don’t use the 4-pin cables when testing, please connect the 4-pin cables to the power cord, and then connect to the cameras, to try again. If there is still no improvement, maybe power cord gets wrong during use, please contact us and we will help you: huangiem@yahoo.com 6.4 After power-on, the screen still has no picture? ...
-
Page 23: Warranty
All message will be replied within 24 hours, please wait kindly. 7 Warranty Fookoo offers a full 36 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. - Page 24 ２１...
