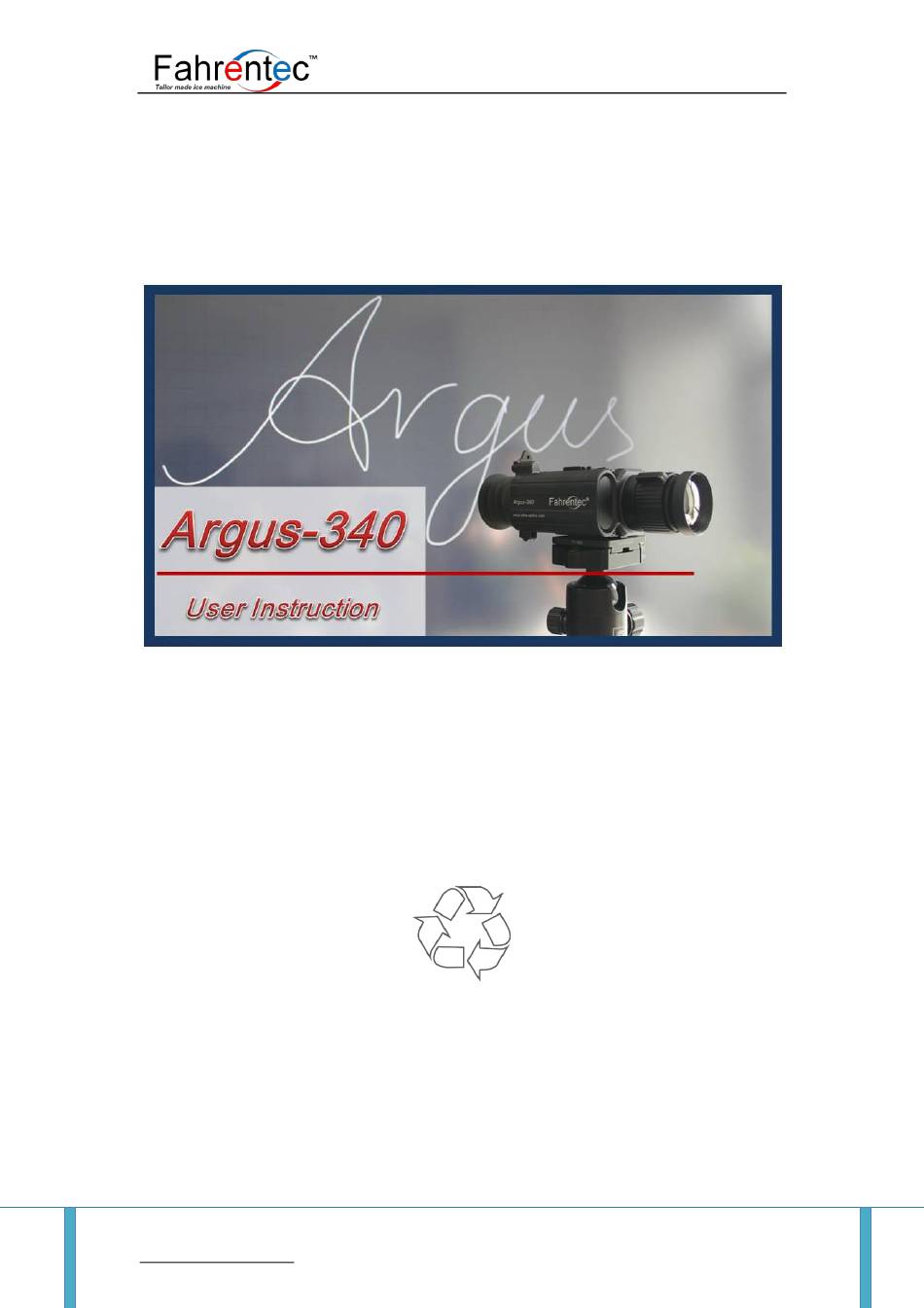

Fahrentec Corporation Limited
Version 221101
English User Manual
Argus-340 thermal imaging camare
Save Trees Use Recycle Material
The intellectual property rights of all text content and pictures in this
manual belong to Fahrenec Refrigeration Corporation Limited Any form of
distribution and citation must obtain the written permission of Fahrenec
Refrigeration Corporation Limited
COPYRIGHT© 2014-2022 FAHRENTEC REFRIGERATION
Room 1708, Unit 1, 6th Block, Glorious Plaza, No. 305, Keji Road, Yanta District, Xi'an, Shaanxi, China 710000
Ph: +86(0)29 8885 6461
Http://www.fahrentec.com http://www.infra-optics.com
Email: info@fahrentec-corp.com
1
Advertisement
Table of Contents
Summary of Contents for Fahrentec Argus-340
- Page 1 Fahrentec Corporation Limited Version 221101 English User Manual Argus-340 thermal imaging camare Save Trees Use Recycle Material The intellectual property rights of all text content and pictures in this manual belong to Fahrenec Refrigeration Corporation Limited Any form of distribution and citation must obtain the written permission of Fahrenec Refrigeration Corporation Limited COPYRIGHT©...
- Page 2 Fahrentec Corporation Limited To Users Dear users: Thank you very much for choosing the Argus-340 thermal scope. Please read this manual carefully before using it for the first time. After reading, please keep this manual properly, in case of problems during the...
-
Page 3: Table Of Contents
Fahrentec Corporation Limited Menu 1.Product overview ........................4 1.1 Introduction .......................... 4 1.2 Features ..........................4 1.3Application ..........................5 1.4Description ..........................5 2. Preparation before use ......................6 2.1 Unpacking ..........................6 2.2 Battery Installation ....................... 7 2.2.1 Battery Description......................7 2.2.2 Installation ......................... -
Page 4: Product Overview
1.Product overview 1.1 Introduction The Argus-340 is a compact and lightweight multi-functional thermal imaging sight. With advanced non-film technology, it has the features of high sensitivity, high refresh rate and high stability. It can be used in various scenes for 24-hour full-scene... -
Page 5: Application
Fahrentec Corporation Limited ➢ Low power consumption design, two 18650 battery can work more than 8 hours continuously ➢ The operation is simple and quick, the interface is user friendly and humanized ➢ Short start-up time and quick observation ability ➢... -
Page 6: Preparation Before Use
Fahrentec Corporation Limited Resolution (pixel) 384×288（12um） 40 mm（F1.0） Focus Length Eyepiece 0.39 inch HD OLED Display resolution 1024*768 Differentiation pattern 5 kinds Image mode White heat, black heat, red heat, false color, sky, outline magnification 3X/6X/12X Battery type 18650, 3.7 V Lithium battery× 2 (replaceable) -
Page 7: Battery Installation
Fahrentec Corporation Limited Note: if any spare parts are missing or damaged, please contact after-sales service in time. 2.2 Battery Installation Figure 2-1 2.2.1 Battery Description. Product name: 18650 lithium battery Quantity: 2 Working voltage: 3.7V 2.2.2 Installation 1. Please use a 18650 lithium-ion rechargeable battery with a rated voltage of 3.7V. -
Page 8: The Home Page
Fahrentec Corporation Limited 3 Page 3.1 The home page The first page you see when you open the equipment is the home page. The home page is composed of cross cursor, status bar and other information. Figure 3-1 (1) Scale plate... -
Page 9: Functions
Fahrentec Corporation Limited 4 Functions 4.1 Key Function Definition Figure 4-1 Main menu up / magnification shortcut / Picture-in-picture shortcuts Menu / menu exit Main menu down / Mode toggle shortcuts Press the Laser ranging （Matching）/numerical value decrease Submenu options toggle/The value is increased Power on / off / sleep 4.2 Functional specification... - Page 10 Fahrentec Corporation Limited Wait for 10 seconds after power on, and press the key in the mode of 1Xto pop up the main menu. By pressing the up and down keys, the users can move and switch the options in the menu.
-
Page 11: Hot Tracking
Fahrentec Corporation Limited button, select Ranging, press the key toggle distance units, as shown in Figure 4-4: Figure 4-4 4.2.5 Hot Tracking to pop up the menu, press the button down by pressing the button, Short press the key select Hot Spot Tracking, press the key... -
Page 12: Electronic Compass
Fahrentec Corporation Limited Figure 4-6 4.2.7 Electronic Compass to pop up the menu, press the button down by pressing the button, Short press the key select Electronic Compass, press the key switch to the submenu, compass and horizontal pitch switch options, Press the key... -
Page 13: Sharpening Level Adjustment
Fahrentec Corporation Limited as shown in Figure 4-8: Figure 4-8 4.2.9 Sharpening level adjustment to pop up the menu, press the button down by pressing the button, Short press the key select Sharpening level adjustment, press the key Adjust the sharpening level, as... -
Page 14: Factory Reset
Fahrentec Corporation Limited follow the prompts, Select the Manual Compensation short press the key by adjusting the X and Y axes to the blind element position, and then eliminating and saving the blind element according to the options, as shown in Figure 4-10: Figure 4-10 4.2.11 Factory reset... -
Page 15: Time Settings
Fahrentec Corporation Limited Figure 4-11 4.2.12 Time settings to pop up the menu, press the button down by pressing the button, Short press the key select Time settings press the key switch to the submenu, Calendar and time adjustment options, respectively, press the key... -
Page 16: X-Axis Coordinate Adjustment
Fahrentec Corporation Limited 4.3.2 X-axis coordinate adjustment Long press the button key to bring up the cross cursor adjustment menu, by pressing the button down, Select the X Axis，Press the key Press the key , Adjust the position of the crosshairs X axis. as shown in Figure 4-14: Figure 4-14 4.3.3 Y-axis coordinate adjustment... -
Page 17: Cross-Cursor Differentiation Style Adjustment
Fahrentec Corporation Limited Figure 4-16 4.3.4 Cross-cursor differentiation style adjustment Long press the button key to bring up the cross cursor, adjustment menu, by pressing the button down, Select Color, press the key toggles the crosshair color, as shown in... -
Page 18: Return To The Main Interface
Figure 4-18 4.3.5 Return to the main interface Press the button key to exit the menu and go to the main interface. Thank you for choosing Fahrentec Argus-340 thermal camera. For more information, please contact us at: info@fahrentec-corp.com www.infra-optics.com +86 029 8931 3450 Room 1708, Unit 1, 6th Block, Glorious Plaza, No.
