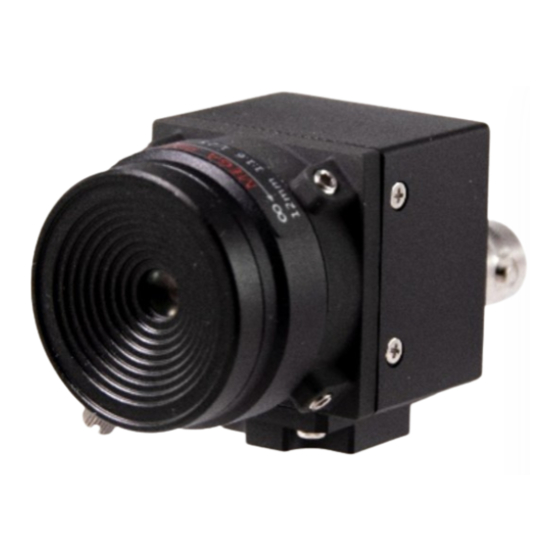

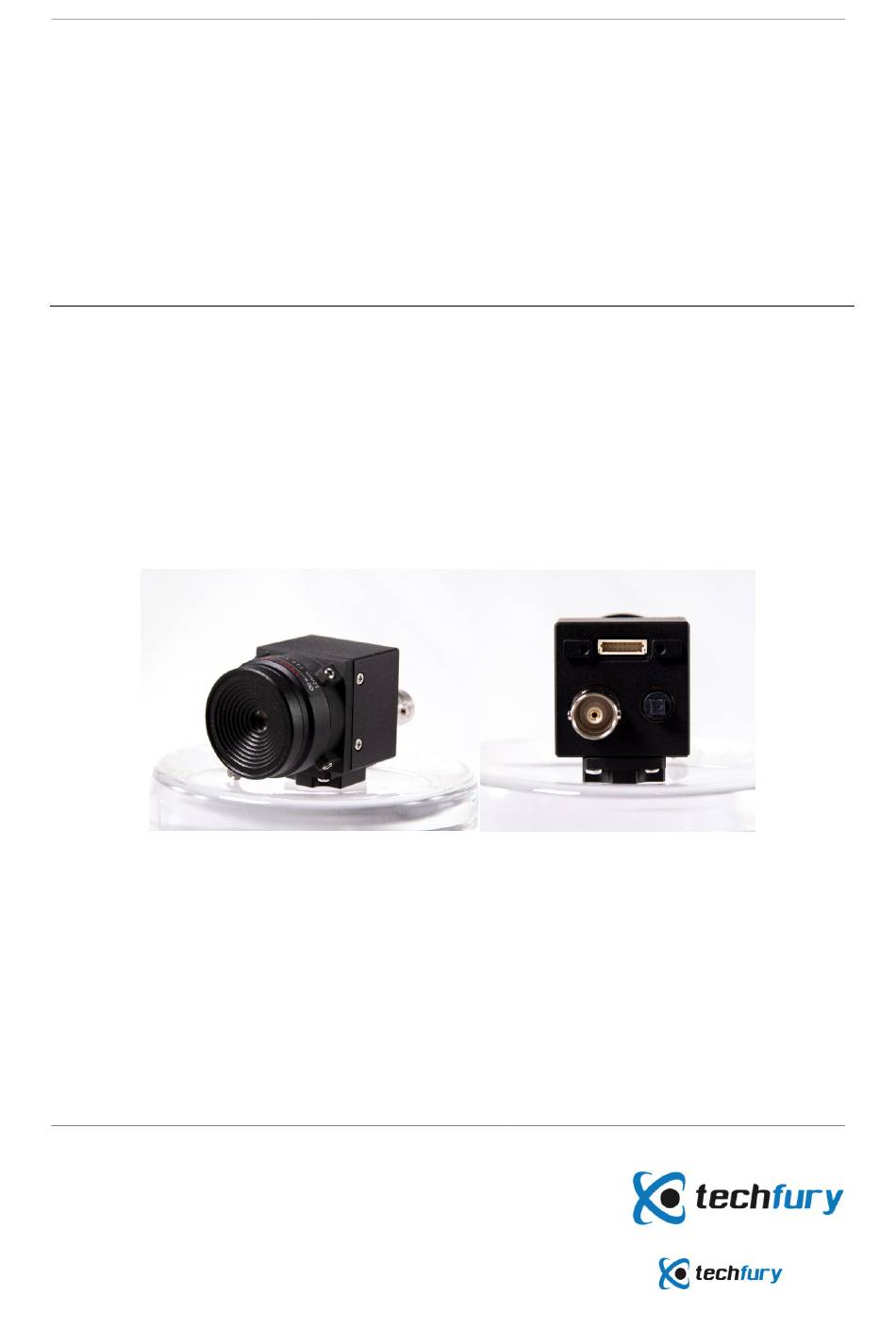

- Page 1 3G-SDI camera user manual Page 1 TF-3GSDI-CAM: 3G-SDI Camera User Manual Megapixel CMOS Box & Module Camera Version 1.4 www.techfury.com sales@techfury.com...
-
Page 2: Before You Start
For prevention of fire or electric shock, DO NOT removes screws or covers from the camera. (Only TF-3GSDI-CAM) - Operation in a wet environment is NOT recommended. The camera SHOULD NOT be exposed to rain... -
Page 3: Warranty
Warranty TECHFURY warrants the original components free of defects for one year from the purchase date. This warranty covers failures and damage due to defect, which may occur during normal use. It does not cover damages or failure resulting from mishandling, abuse, misuse or modification. An RMA number must be obtained in advance for every repair or replacement. -
Page 4: Main Features
DNR (Digital Noise Reduction, 2D/3D-NR) DNR technology will supply you with outstanding clear images by reducing noise of picture. DNR technology has excellent disk-saving effect. TECHFURY supports brilliant DNR technologies like DNR, 3D-NR and 2D+3D. AGC (Automatic Gain Control) AGC is circuit that automatically adjusts the incoming signal to proper level for display or recording and the sensitivity of pick-up object to render the most pleasing images. -
Page 5: Name And Function Of Each Part
3G-SDI camera user manual Page 5 Name and Function of Each Part 2.1. TF-3GSDI-CAM Side Name Function Holder For attaching a bracket to the camera Lens Mount Adaptor ring is tightened for C or CS mount lens ① Rear ②... - Page 6 Page 6 3G-SDI Camera user manual Move from left side to right side, then the menu is moved to upper menu or the parameter is changed ▲/▼ Move up and down, then the menu is moved up and down Press and the feature is set ■...
- Page 7 3.3. Power Connection For easy installation, TECHFURY provides special power cable to connect DC jack type of power adapter. Connect the camera to the device, which its power is turned off. * Camera operation guarantees power: DC 12V ~ 24V ±10%...
- Page 8 INDOOR(Default TF-3GSDI- Select DC Iris Lens(Not supported) CAM),OUTDOOR P-IRIS AUTO, MANUAL Select P-Iris Lens(Not supported) LENS MANUAL(Default TF-3GSDI-CAM) Select Manual Iris Lens VIDEO Select Video Iris Lens use(Not supported) AUTO(Default) Select Auto Shutter Speed Select in Flickering SHUTTER...
- Page 9 3G-SDI camera user manual Page 9 AREA Select Position & Size DEFAULT BLC Factory Reset SELECT Select the area (AREA1~AERA4) DISPLAY Select the area maintain/remove (ON/OFF) LEVEL Select the level 0~100 HSBLC MODE Select the activation time(ALL DAY / NIGHT) BLACK MASK Select the black mask (ON/OFF) DEFAULT...
- Page 10 Page 10 3G-SDI Camera user manual D-ZOOM x2 ~ x62 / PAN&TILT / DEFAULT SMART D- AREA 1/2 / DISPLAY / SENSITIVITY (0~60) / D-ZOOM(x2~x62) ZOOM TIME (0~26) / DEFAULT (Not Available) NEG. IMAGE Select the negative image (ON/OFF) Not Available SELECT Select the area 1 ~ 4 DISPLAY...
-
Page 11: Specifications
3G-SDI camera user manual Page 11 Select Lens Shading Compensation Scan (ON/OFF) RESOLUTION FULL-HD(Default) / HD FRAMERATE A- Sensor Scanning 60P, B- Sensor Scanning 30P(Default) 60/30 & 50/25 depends on NTSC/PAL selection in advance A-30/25P / A-60/59.94/50I(Only Full HD) B-30/25P / A-60/59.94/50P VIDEO.OUT Select NTSC/PAL 9. - Page 12 Page 12 3G-SDI Camera user manual ENG, JPN, CHN, KOR, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUB, HER, ARB Language (Directional Switches) Day & Night Auto / B.W / Color / EXT (Selectable) 2D/3D-NR 2DNR / 3DNR / SMART NR Digital Zoom / PIP On / Off (x2 ~ x64) Privacy Masking...
-
Page 13: Technical Support
Technical Support : sales@techfury.com In case of an RMA, you must first contact TECHFURY and obtain an RMA Number before sending the product to us. We are not responsible for any problems caused by not following the RMA procedure.
