Summary of Contents for obp Motorsport eSports Pro-Race V2

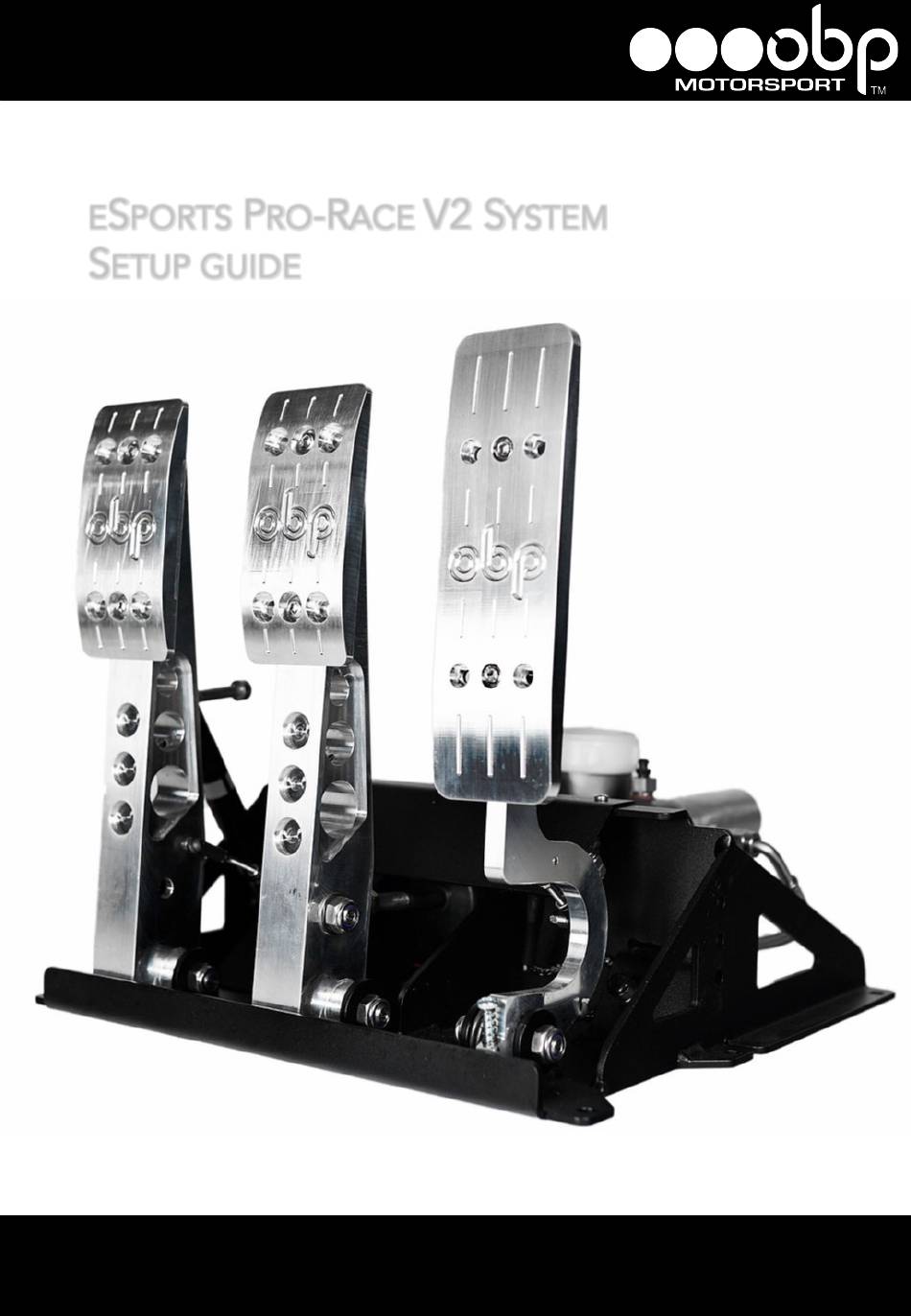

Page 1 V2 S PORTS YSTEM ETUP GUIDE WWW.OBPLTD.COM...
Page 2: Table Of Contents
& with over a decade of proven real-world motorsport winning success, our engineering expertise has been packaged into the obp eSports Pro-Race V2 pedal systems which will take your sim racing to another level, giving you the most immersive &...
Page 3: Whats Included
2. W ’ NCLUDED • EDAL OX INCLUDING CONTROL ELECTRONICS & S • ASTER YLINDER LAVE CYLINDER • RAKE LINES • IBRO LASTOMER PRING BUSHES / RJ45 • CABLE CABLE M6 B , 10 M6 W & 10 • OLTS ASHERS OCKING •...
Page 4: Installation
4. I NSTALLATION Attaching baseplate to sim. It is important that all fixing holes on the baseplate are used, use the provided M6 bolts, washers and self locking nuts. On the two pedal version this is 9 places, on the three pedal version this is 10 places. Failure to do this could result in additional flexibility and premature wear of the system.
Page 5 4. I NSTALLATION Baseplate mounting hole template – 2 Pedal Version WWW.OBPLTD.COM...
Page 6 4. I NSTALLATION Baseplate mounting hole template – 3 Pedal Version WWW.OBPLTD.COM...
Page 7 4. I NSTALLATION Bleeding the system. To ensure the best possible brake feel it is important the system is correctly bled. The system is bled through the bleed screw located on the top of the slave cylinder, care should be taken not to undo the brass adapter fitting.
Page 8: Connectivity
5. C ONNECTIVITY Connecting the system If connecting the pedal system to your wheel base, use RJ45 cable for direct connection. If this is not possible, use RJ45 – USB adapter to connect the pedals directly to the PC. We also offer a cable to connect your Thrustmaster wheel base to our pedals for use with Xbox or Playstation.
Page 9: Calibration
6. C ALIBRATION We highly recommend calibrating the pedals on Windows AND DIView, this will give you a more precise and refined pedal feel. Windows Insert the USB Adapter into an available USB port on your PC with the RJ45 side going into the back of the pedals Windows will automatically download the required drivers in the Search bar on Windows, type joy.cpl and click ENTER.
Page 10 6. C ALIBRATION Fully depress each pedal and you should see each rotation respond on the window, if each pedal responds then windows has successfully installed the drivers and the pedal data is being received by the PC. If the PC is not responding to the pedals being pushed then you may need to go to Settings >...
Page 11 6. C ALIBRATION DI VIEW Download DI View from obp Motorsport Website: http://bit.ly/obpESportsCal Open DI View: Select correct interface controller. Click Edit > Settings: WWW.OBPLTD.COM...
Page 12 6. C ALIBRATION b. Select BU0836 or obp Pedals Interface > Click OK: You will then be presented with this screen: WWW.OBPLTD.COM...
Page 13 6. C ALIBRATION Show Raw Data for X, Y and Z Axis Right click on each axis interface and select ‘View Raw Data’ on each of them: Calibrate the E-Sports Pro Race V2 Pedal System Right click on an axis interface and select ‘Calibration’: WWW.OBPLTD.COM...
Page 14 6. C ALIBRATION b. Set Min, Centre and Max Values from “Raw Data” Min Value = Pedal In Rest Position Centre Value = Calculated Travel Midpoint (Max+Min)/2. Max Value = Pedal Full Travel Click OK and repeat for each pedal axis. d.
Page 15: Adjustment
7. A DJUSTMENT Footpads. Each footpad can be mounted to the pedal in one of three positions to suit each driving style and shoe width. The clutch and brake pedal footpads are also height adjustable to tune the pedal ratio. WWW.OBPLTD.COM...
Page 16 7. A DJUSTMENT Throttle Pedal Position. The throttle pedal travel limits can be adjusted in both the rest position and the full travel position. To adjust the back stop Release the lock nut. Adjust the stop position as required. Re-tighten the lock nut.
Page 17 7. A DJUSTMENT Brake Pedal Position. The brake pedal rest position can be adjusted as shown below. To adjust the brake pedal rest position: Loosen the locknut on the master cylinder push rod. Rotate push rod clockwise or anti-clockwise depending on requirements.
Page 18 7. A DJUSTMENT Brake Pedal Feel. The brake pedal feel can be adjusted to suit driver feel. It should be noted that if you are upgrading your sim system to a hydraulic system for the first time, the pedal feel even on the softest setting will feel significantly more firm than any non hydraulic sim pedal set.
Page 19 7. A DJUSTMENT Clutch Pedal Position. The clutch pedal full travel position can be adjusted as shown below. To adjust the brake pedal rest position: Loosen the locknut on the master cylinder push rod. Rotate push rod clockwise or anti-clockwise depending on requirements.
Page 20: Accessories
8. A CCESSORIES The following accessories are available to further tune the system to individual preference. Wide Brake Pedal Increase width of pedal from 50mm to 78mm WWW.OBPLTD.COM...
Page 21: Maintenance
9. MAINTENANCE General The obp eSports Pro Race V2 pedal box is relatively low maintenance if installed correctly. However there are certain parts that should be inspected regularly to ensure the longevity and performance of the system. Pedal Pivots The pedals should be free moving without much resistance but also without excessive play.
