Summary of Contents for UKGpro USC-F9

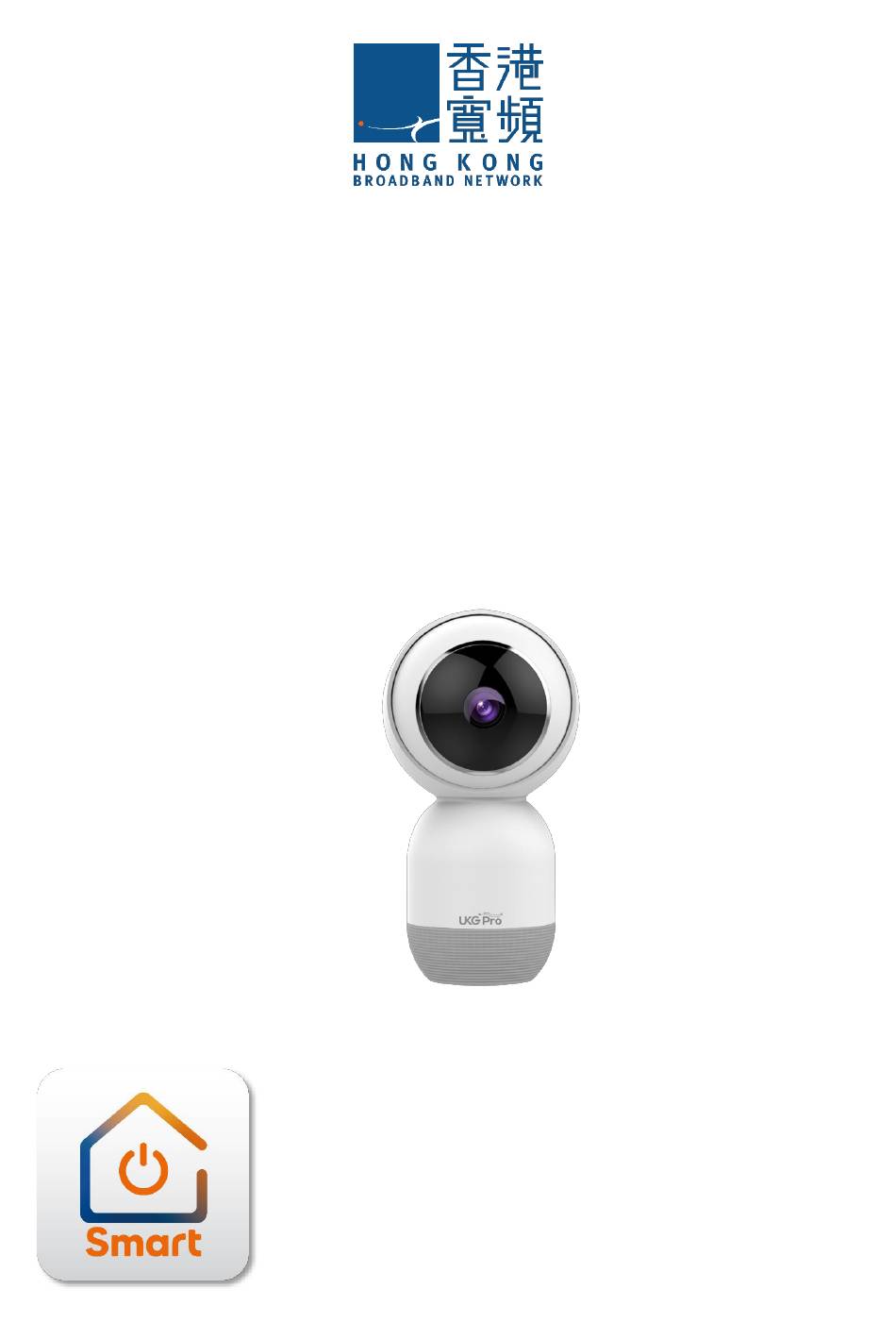

- Page 1 UKGpro Smart Camera 1080p (Model：USC-F9) HKBN Smart User Guide v.20210923...
-
Page 2: Table Of Contents
Table of Contents Product Description ................... 3 Download HKBN Smart App ................4 Add Device ......................5 Control Device ....................10 Main Control Panel ................10 Speak function ..................11 Record function ................... 12 Snapshot function ................13 Playback function ................14 Direction Control ................. -
Page 3: Product Description

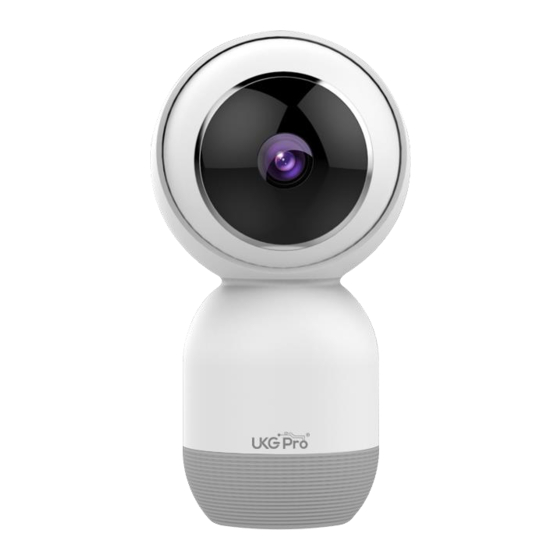

Product Description Name: UKGpro Smart Camera 1080p Model: USC-F9 Packing list: Camera x 1, USB cable* x 1, Screws x 2 and Mounting Bracket x 1 *Remark: Do not connect with devices that have quick-charge functionality. Doing so may cause the product to malfunction. -
Page 4: Download Hkbn Smart App
Download HKBN Smart App Search and download “HKBN Smart” APP in Apple App Store OR Google Play Store Scan the QR code below... -
Page 5: Add Device
Add Device You must first connect your phone to a 2.4GHz Wi-Fi network when adding device; Tap “Devices” on the bottom menu (image 1); Tap “Add Device” button OR “+” icon at top right corner if you already have paired device (image 2); (image 2) (image 1) - Page 6 Add Device Tap “UKGpro Smart Camera 1080p” from left menu “Smart Camera” (image 3); Turn on the device (If this is not the first-time pairing, please hold the RESET button until you hear a prompt sound), after about 30 seconds you will hear a start-up music and then tap “Confirm you heard a start-...
- Page 7 Add Device Select Wi-Fi network and enter password*, and then tap “Next” (image Follow the instructions shown on screen. To scan the QR code by camera and keep it 15cm to 20cm away from the mobile phone (image *Important tips: Wi-Fi requirement ⚫...
- Page 8 Add Device Scan the QR code by facing it to the camera, you should then hear a sound from device. Click “I heard a prompt” if you heard it (image 7); The App will connect with your camera, please allow few minutes for it to pair (image 8);...
- Page 9 (You can also change the device name and room location later in device setting page and room management page.) And you can find the paired device in the “Device” page. Device UKGpro Smart Camera 1080p Name Room Selection...
-
Page 10: Control Device
Control Device • Main Control Panel Setting Page Time Watermark Wi-Fi Signal Strength (%) Video Quality Full Screen Button Mute Button Record Video Button Speak Button Snapshot Button Direction Control Playback Video... -
Page 11: Speak Function
Control Device • Speak function Tap “Speak” button enable communication to the people from camera side; To end the conversation, tap “Speak” button again. -
Page 12: Record Function
Control Device Record function • Tap “Record” button to start recording from the live streaming (image To end the recording tap the “Record” button again (image 2). (Recorded clips will be saved to your mobile photo album; this clip will NOT be saved in memory card.) Remark: The infrared light function will be activated ⚫... -
Page 13: Snapshot Function
Control Device Snapshot function • Tap “Snapshot” button to take photo from the live streaming (image The photo will be saved to your mobile photo album (Photo will not be saved to memory card). Tap “OK” to complete (image 2). Remark: The infrared light function will be activated ⚫... -
Page 14: Playback Function
Control Device Playback function • In playback control panel, you can find all playback videos recorded today (image 1). If you would like to see recorded videos in the past, tap “Date” on the top right corner and tap to select the available date (image 2). Remark: Memory card is required for playback function. - Page 15 Control Device • Playback function (Save screenshot/video to mobile phone) Save Screenshot: In playback control panel, you can tap to save the screenshot from the playback video to your mobile phone album. Save Video: In playback control panel, you can tap to start and stop recording the video from the playback video to your mobile phone album.
-
Page 16: Direction Control
Control Device • Direction Control Tap “Direction” button to enter the direction control panel (image 1). Long press the preferred direction to rotate the camera viewing angle (image 2). (image 2) (image 1) -
Page 17: Settings
Settings • Page layout Device Name (Tap to change) Device ID Wi-Fi Signal Strength IP Address Flip Screen Motion Detection Motion Sensitivity Memory Card Information/ Enable/Disable Format Option Memory Card Recording Recording Mode Motion Tracking Device Offline Push Notification Firmware Information Remove Device Button... -
Page 18: Motion Detection
Settings • Motion Detection When you enable motion detection function, you can receive push notification alert. (To receive push notification, you need to enable and authorize push notification function in App settings) - Page 19 Settings • Motion Detection Below are the options for motion detection and its function: Below are the motion detected distance under normal circumstances: (result will be affected by temperature and light) • High Sensitivity: around 8m • Medium Sensitivity: around 6m •...
- Page 20 About video saved in memory card: ⚫ All videos saved by motion detection are encrypted and it cannot be read directly by PC. User need to play it by HKBN Smart App using Playback function in UKGpro Smart Camera control panel. (image 2)
-
Page 21: Recording Mode
Settings • Recording Mode Event Recording: Recording will be started when detected motion, and it ends when no more motions was detected. Continuous Recording: Once this mode is selected, recording will be started continuously even though no motion was detected. -
Page 22: Motion Tracking
Settings • Motion Tracking Once enabled “Motion Tracking”, camera will rotate automatically to track the detected human movement*. * “Motion Tracking” can only track one object at a time. If there is more than one object appeared, this function may be affected. -
Page 23: Check For Firmware Upgrade
Settings • Check for Firmware Upgrade Tap “Check for Firmware Upgrade”, you can see current firmware version and available upgrade version if any (image 1). Tap “Upgrade” to start firmware upgrade. (image 2) (image 1) -
Page 24: Remove Device
Settings • Remove Device In device settings page, tap “Remove Device” (image 1); Tap “OK” to confirm and remove device from your account (image 2). (image 2) (image 1) -
Page 25: Product Specifications
Product Specifications Resolution : 1920x1080 (1080p) Pan/Tilt range : Horizontal 355° Vertical 110° Night vision range : 8 - 10m Viewing angle : 80° Mic & Speaker Built-in Mic & Speaker Storage : Micro SD card (up to 128G) Wireless standard : IEEE 802.11b/g/n, 2.4GHz (not support 5GHz) Power : DC5V/1A, Micro USB... -
Page 26: Product Maintenance And Warranty
Product Maintenance and Warranty For the enquiry of product maintenance and warranty, please contact the product distributor/ manufacturer below: Alris Technology Limited • Service Center：3/F Hing Yip Centre, 31 Hing Yip Street, Kwun Tong, Kowloon, Hong Kong • Tel.： (852) 2274 2222 •...
