Installation and Service Manual

EXXFIRE

750TW/1500TW/2250TW

Table of Contents

Need help?

Do you have a question about the 750TW and is the answer not in the manual?

Questions and answers

Summary of Contents for EXXFIRE 750TW

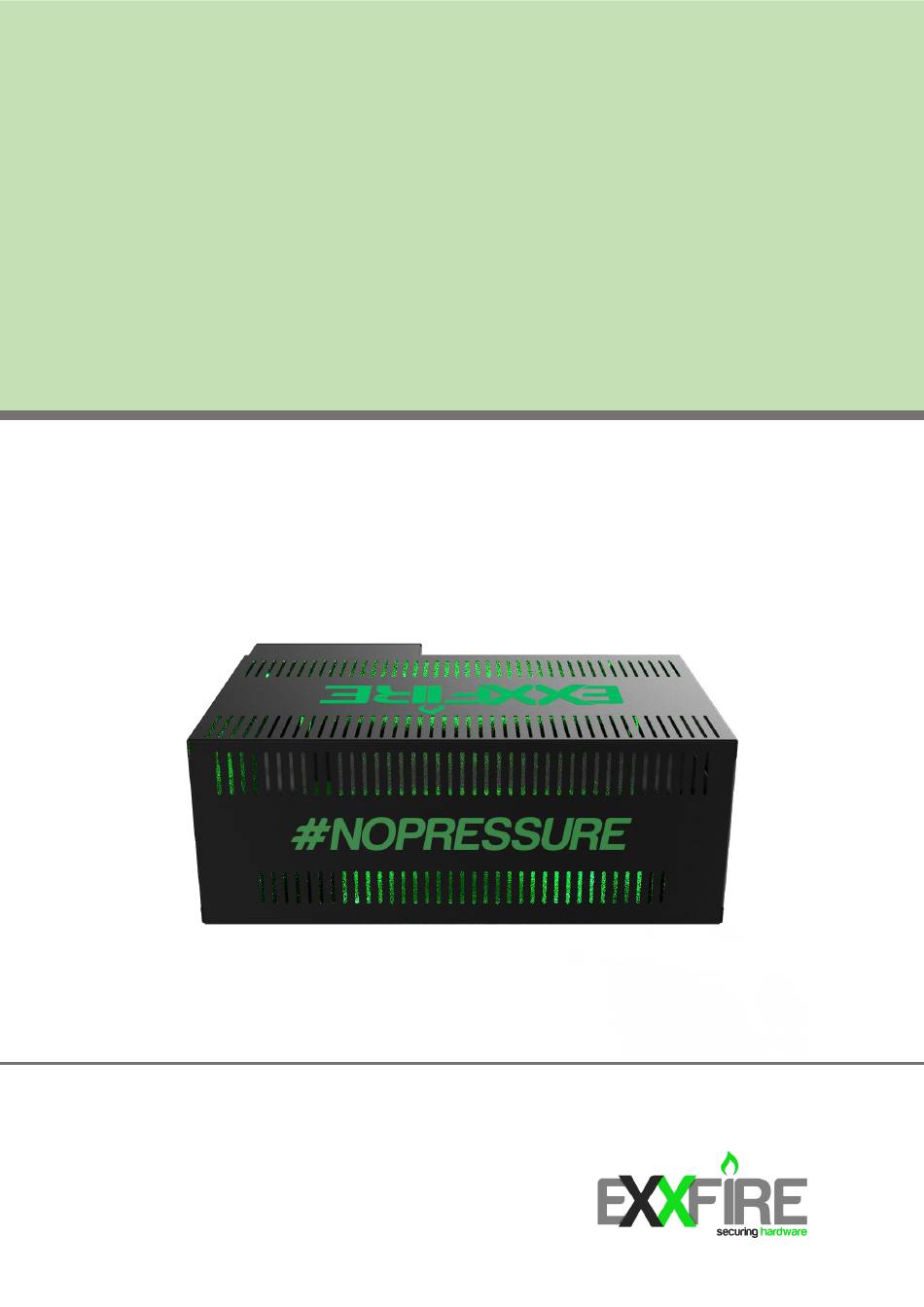

Page 1 Installation and Service Manual EXXFIRE 750TW/1500TW/2250TW ®...
Page 3 Info@exxfire.com © EXXFIRE, all rights reserved. No part of this document may be reproduced in any form, by print, photo print, microfilm, or any other means without permission of EXXFIRE. Disclosure to third parties of this document or any part thereof, or the use of this document by persons other than persons who have a need to know any information contained herein, is prohibited.
Page 4: Table Of Contents
What to do when the unit is activated What to do when someone is exposed to chemical contents How to clean spilt material Fire fighter instructions Storage INSTALLATION System contents Mounting kit Tools Mounting 4.4.1 Outside mounting Electrical connection EXXFIRE Installation and Service Manual...
Page 5 TRANSPORTATION AND STORAGE Transportation Storage TROUBLESHOOTING INSPECTION AND MAINTENANCE Spare parts DECOMMISSIONING DISPOSAL Disposal at end of life product Disposal at end of life CGG Disposal of defective product Disposal after an event of fire ENVIRONMENT EXXFIRE Installation and Service Manual...
Page 6 LIST OF REFERENCE DOCUMENTS If not mentioned differently, the latest revision of a document always applies. Document name / number Description Notes SFE-SP-001_SDS GEN09N2 Material Safety Sheet Generator EXXFIRE Installation and Service Manual...
Page 7 In this manual, several abbreviations are used. They are listed in the table below. Cool Gas Generator Cubic feet Cubic meter Most significant bit Least significant bit Normally open Normally closed Manual Activation Button Door Switch EXXFIRE Installation and Service Manual...
Page 8: Introduction
About this manual This document is the installation and service manual for the EXXFIRE® 750TW/1500TW/2250TW. This manual contains all the information necessary to install, operate and service the EXXFIRE® 750TW/1500TW/2250TW for all phases of its product lifecycle, see Figure 1.
Page 9: Intended Use
Operational boundaries are described in chapter 2 and must never be exceeded. Only personnel trained and qualified by the EXXFIRE may install, inspect and maintain the product. Disclaimer It is the responsibility of the installer to ensure that the user is aware of the relevant contents of this document and the documents listed herein.
Page 10: Product Description
2 PRODUCT DESCRIPTION EXXFIRE 750TW/1500TW/2250TW ® The EXXFIRE® 750TW/1500TW/2250TW is a unit that is used to detect and extinguish fires in small, protected spaces, such as server racks and electrical cabinets. The EXXFIRE® 750TW/1500TW/2250TW is equipped with: • One, two or three cool gas generators to release nitrogen gas •...
Page 11 Table 1 Gas mass versus protected space (in normal conditions temperature and pressure) Figure 2: EXXFIRE 750TW exterior The EXXFIRE 750TW/1500TW/2250TW is housed in a metal casing. The EXXFIRE 750TW is shown here. Figure 3: EXXFIRE 750TW interior EXXFIRE Installation and Service Manual...
Page 12 Figure 4: Electronics tray interior Figure 5 Product dimensions EXXFIRE Installation and Service Manual...
Page 13 Length x Width x Height 478x440x164 ® 39lbs EXXFIRE 1500TW Weight 18kg ® 25x17x6 EXXFIRE 2250TW Length x Width x Height 630x440x164 ® 55lbs EXXFIRE 2250TW Weight 25kg ® Table 2 Product dimensions and weight EXXFIRE Installation and Service Manual...
Page 14: About Cool Gas Generators
When a fire starts the temperature will rise which causes the cable to short circuit which triggers the gaseous fire suppression of the EXXFIRE® 750TW/1500TW/2250TW. This provides an exceptionally reliable means to detect a fire, which reduces false alarms, and avoids releasing the gas unnecessarily.
Page 15: Electronics
(to inhibit gas release when an operator is present). Configuration settings The EXXFIRE® 750TW/1500TW/2250TW series can be interconnected via a wiring protocol. This means that multiple systems can be used to protect one larger volume. The settings are described in chapter 5.
Page 16: Technical Data
-0 to 50 °C Generators * NFPA2001 Design concentration Class A = 40.3% ** Design concentration class B = 47.6% *** Before and after deployment **** System Enclosure / Generator housing Table 5: Technical data EXXFIRE Installation and Service Manual...
Page 17: Lineair Heat Detection Cable
The design life (or technical life span) of the product is stated below: • CGG design life (after installation): 10 years • Linear heat detection cable life: 10 years • Battery design life: 4 years EXXFIRE Installation and Service Manual...
Page 18: Safety
Handling of the EXXFIRE® 750TW/1500TW/2250TW must only be done by qualified and trained personnel familiar with the product and its documentation (product datasheet, operating manual).
Page 19: Personal Protective Equipment
Handle in accordance with good industrial hygiene and safety practice. Wash hands before breaks and at the end of the workday. • Do not inhale released gas. Installation • ExxFire recommends installing the EXXFIRE® 750TW/1500TW/2250TW with two people. EXXFIRE Installation and Service Manual...
Page 20: What To Do When The Unit Is Activated
(e.g., inside the cabinet when the EXXFIRE system is activated). Consequently, at all times, the following applies when the system is ACTIVATED: •...
Page 21: What To Do When Someone Is Exposed To Chemical Contents
Typically, this may include evacuating the immediate area, and wearing gloves and a dust mask while collecting the spilt material using a dry dustpan and brush. Fire fighter instructions • Use dry powder or sand to extinguish fire. EXXFIRE Installation and Service Manual...
Page 22: Storage
• Do not use water! Wear self-contained breathing apparatus for firefighting if necessary. Storage • Conditions for safe storage: store in a dry, clean area, below 40 ̊ C . EXXFIRE Installation and Service Manual...
Page 23: Installation
A mounting kit is available with two types of linear heat sensing cables 68C (MOUNTINGKIT4) and 104C (MOUNTINGKIT5). These linear detection cables are UL listed. The docking plate is first affixed to an appropriate mounting facet. The EXXFIRE® 750TW/1500TW/2250TW is then engaged upon the tabs, and easily locked in place.
Page 24 90° angle 28mm pipe fitting (push-fit) Straight 28 mm pipe fitting (push-fit) Drilling template (not in figure) Door Warning Sticker (not in figure) End resistor with connector (not in figure) Table 6: Mounting kit contents EXXFIRE Installation and Service Manual...
Page 25: Tools
Outside mounting - On top or on the side of the protected space, e.g., a cabinet, see Section 4.4.1. 4.4.1 Outside mounting 1. Take out the boxed EXXFIRE® 750TW/1500TW/2250TW and the mounting kit from the box. 2. Collect the necessary parts from the mounting kit, see Section 4.2 3. Unpack the needed Cool Gas Generator(s) 4.
Page 26 INSTALLATION OF COOL GAS GENERATOR(S) Handling of the EXXFIRE® 750TW/1500TW/2250TW must only be done by qualified and trained personnel, familiar with the product and its documentation (product datasheet, operating manual). 1. First check if the Cool Gas Generators are not visibly damaged.
Page 27 (e.g., PE Foam in between the clamps and manifold puller). 8. Remove the CGG clamps. Figure 9 CGG clamps removed 750 TW. 9. Place the CGG’s with tight compression of the gasket on to the manifold. EXXFIRE Installation and Service Manual...
Page 28 10. Place the clamps again with the wide part facing towards the manifold and the edge behind the top flange ring of the CGG to keep them in place during suppression. Figure 11 Mounted CGG EXXFIRE Installation and Service Manual...
Page 29 A damaged product (e.g., when dropped) results in a hazardous situation! Leakage of chemicals, toxic release is possible! See: 3.3 how to handle in a hazardous situation. • In case of activation of the CGG: see 2.2 Operational EXXFIRE Installation and Service Manual...
Page 30 12. Install the mounting plate according to the drilling template. Figure 13 Mounting plate and template. 13. Slide the EXXFIRE unit on the mounting plate. Figure 14 750 TW on mounting plate EXXFIRE Installation and Service Manual...
Page 31 14. Mount the EXXFIRE unit to the mounting plate. Figure 15 Locking the mounting plate. 15. Drill a 32-mm hole through the top of the protected space in front of the gas outlet of the EXXFIRE unit. Figure 16 Drill hole for gas pipe...
Page 32 Figure 17 Installing pipe grommet. 17. Install the two pipes. Saw the horizontal pipe to length if necessary. Firmly push the straight connector onto the outlet pipe of the unit. Figure 18 Example of pipe mounting EXXFIRE Installation and Service Manual...
Page 33 18. Connect the silencer (optional) or the anti-thrust nozzle to the pipe end. Figure 19 Silencer attaching. 19. Drill a 6-mm hole to enter the protected volume with the linear heat detection cable. Figure 20 Installed gas pipe. EXXFIRE Installation and Service Manual...
Page 34 20. Install the cable access grommet to feed the cable inside the cabinet. Figure 21 Fully installed 750 TW. Always create a throughput for air leakage when the EXXFIRE is applied in hermetically sealed spaces. Otherwise, the smoke sampling system of the EXXFIRE will not be reliable.
Page 35: Electrical Connection
• All cables entering the enclosure must be screened, and the screens appropriately grounded in order to ensure EMC compliance. 1. Remove electronics tray cover Figure 22: Remove electronics tray cover. EXXFIRE Installation and Service Manual...
Page 36 Connect the Earth, Neutral, and Live conductors to the grey fuse terminal block as shown in the diagram. Ensure continuity between the Earth cable and the chassis before fitting the safety cover and fuse. 3. Install the fuse. 4. Install wiring for Fault/ Alarm outputs EXXFIRE Installation and Service Manual...
Page 37 This relay will only be activated to the open state once the unit is powered and fully operational. All other relays will remain in their dormant state until activated by a fire event. If any cable glands remain unused, they must be fitted with the blanking plugs provided. EXXFIRE Installation and Service Manual...
Page 38 5. Lead the linear heat detection cable or Thermal Wire through the protected volume in such a way that the cable is close to the components that could start a fire. 6. Configure the EXXFIRE® 750TW/1500TW/2250TW, see Chapter 5. 7. Switch ON the EXXFIRE® 750TW/1500TW/2250TW.
Page 39: Configuration
The functions and settings for each switch are outlined below. The switches can easily be set or reset by sliding them to the desired location using a small, insulated screwdriver. Table 7 Configuration Functions Dip Switch Function Generator 1 Generator 2 Generator 3 EXXFIRE Installation and Service Manual...
Page 40: Setup Of The Amount Of Generators
2 Generators 3 Generators Testing of the linear heat cable always on the end of line at the end-of-line resistor! By shorting out the two cores a detection can be simulated to check line integrity. EXXFIRE Installation and Service Manual...
Page 41: Door Switch
Figure 28. This break-contact will disable the system from deploying the gas when the door is open. Preventing an extinguishing without reaching a proper design concentration with the suppressant. Figure 28 Wiring DSW schematic single (left) and multiple (right) inputs EXXFIRE Installation and Service Manual...
Page 42 Figure 29 Location of the DSW connections EXXFIRE Installation and Service Manual...
Page 43: Manual Activiation Button
The system can be equipped with a Manual Activation Button (MAB). Any regular MAB can be connected to the MAB screw terminals using a 470 Ohm series resistor and 1k Ohm end resistor. This process is similar to the Door Switch (DSW). Figure 30 Wiring MAB schematic single EXXFIRE Installation and Service Manual...
Page 44 Figure 31 Location of the MAB connections EXXFIRE Installation and Service Manual...
Page 45: Master-Slave Configuration
Please note that only one TW cable can be used for this system. Namely the one at the “end” of the chain. Using one TW cable means this configuration can only be used to protect one volume. Figure 32 Master slave configuration, Red = fault connections, Blue = Alarm connected to TW input EXXFIRE Installation and Service Manual...
Page 46: Removal Of Cgg's
6 REMOVAL OF CGG’S Handling of the EXXFIRE® 750TW/1500TW/2250TW must only be done by qualified and trained personnel, familiar with the product and its documentation (product datasheet, operating manual). 1. First check if situation is safe and clear. System needs cooling down (> 4hrs.) and the room in which the cabinet is located needs ventilation.
Page 47 5. Remove the CGG clamp screws. 6. Disconnect the squib connectors. Do this by unlocking the orange click connector with a flat head screwdriver. EXXFIRE Installation and Service Manual...
Page 48 A damaged product (e.g., when dropped) results in a hazardous situation! Leakage of chemicals, toxic release is possible! See: 3.3 how to handle in a hazardous situation. • In case of activation of the CGG: see 2.2 Operational EXXFIRE Installation and Service Manual...
Page 49: Removal At End Of Life Product
Removal at end-of-life product • Handling of the EXXFIRE® 750TW/1500TW/2250TWmust only be done by qualified and trained personnel, familiar with the product and its documentation (product datasheet, operating manual). Incorrect handling or use of the product can cause serious damage and unsafe situations (serious injuries and possible fatalities).
Page 50: Removal Cgg After An Event Of Fire
• The defective product must be put in the box in which it was supplied (a 4G UN box) and returned to the distributor of the applicable country (see a list at www.exxfire.com). • The distributor decides whether to repair the product or supply a new product.
Page 51: Transportation And Storage
Proper shipping name: ARTICLES CONTAING A SUBSTANCE WHICH IN CONTACT WITH WATER EMITS FLAMMABLE GASES N.O.S. Marine pollutant: No IATA UN-Number: 3543 Class: 4.3 Packaging group: Not shippable by Air Proper shipping name: Not shippable by Air EXXFIRE Installation and Service Manual...
Page 52: Storage
Keep in own system packaging • Keep in anti-static plastic bag to prevent static electricity from initiating gas production Conditions for safe storage of used/end of life EXXFIRE® 750TW/1500TW/2250TW • Store in a clean and dry area, below 40 ̊ C .
Page 53: Troubleshooting
• Missing mounting material during installation: contact the distributor in your country/area www.exxfire.com for a complete overview • And in the case of all other problems which may occur contact EXXFIRE EXXFIRE Keyserswey 30 2201 CW Noordwijk The Netherlands Chamber of Commerce: 53952464 VAT: NL.8510.87.425.B.01...
Page 54: Inspection And Maintenance
Once in 10 years Replace thermal wire Normal Once in 10 years Spare parts The following spare parts are available through the distributor: • Cool Gas Generator’s • Battery • Mounting kit • Thermal wire EXXFIRE Installation and Service Manual...
Page 55: Decommissioning
2. Squeeze the tool and disassemble. The arms will move a plastic ring inward that releases the fitting. • Call the distributor of the applicable country (see a list at www.exxfire.com). • The distributor will organize the collection of the used generators in the respective catchment area/region/country and takes care of the chemical waste disposal process on behalf of EXXFIRE.
Page 56: Disposal
After removal from the protected space: • Handling of the EXXFIRE® 750TW/1500TW/2250TW must only be done by qualified and trained personnel, familiar with the product and its documentation (product datasheet, operating manual). Incorrect handling or use of the product can cause serious damage and unsafe situations (serious injuries and possible fatalities).
Page 57: Disposal Of Defective Product
• After removal, put the defective product in the box in which it was supplied (a 4G UN box) and return it to the distributor of the applicable country (see a list at www.exxfire.com). Disposal after an event of fire •...
Page 58: Environment
Persistence and degradability No data available ▪ Bio accumulative potential No data available ▪ Mobility in soil No data available PBT and vPvB assessment No data available ▪ ▪ Other adverse effects No data available EXXFIRE Installation and Service Manual...
Page 59 A1 - SDS PRODUCT EXXFIRE Installation and Service Manual...
Page 60 EXXFIRE Installation and Service Manual...
Page 61 EXXFIRE Installation and Service Manual...
Page 62 EXXFIRE Installation and Service Manual...
Page 63 EXXFIRE Installation and Service Manual...
Page 64 EXXFIRE Installation and Service Manual...
Page 65 EXXFIRE Installation and Service Manual...
Page 66 EXXFIRE Installation and Service Manual...
Page 67 EXXFIRE Installation and Service Manual...
Page 68 A2 - SDS ACTIVATED PRODUCT EXXFIRE Installation and Service Manual...
Page 69 EXXFIRE Installation and Service Manual...
Page 70 EXXFIRE Installation and Service Manual...
Page 71 EXXFIRE Installation and Service Manual...
Page 72 EXXFIRE Installation and Service Manual...
Page 73 EXXFIRE Installation and Service Manual...
Page 74 EXXFIRE Installation and Service Manual...
Page 75 EXXFIRE Installation and Service Manual...
Page 76 EXXFIRE Installation and Service Manual...
Page 77 B –ADR CERTIFICATION EXXFIRE Installation and Service Manual...
Page 78 EXXFIRE Installation and Service Manual...
Page 79 C –EC DECLARATION EXXFIRE Installation and Service Manual...
Page 80 EXXFIRE Installation and Service Manual...
Page 81 D –DATASHEET BATTERY EXXFIRE Installation and Service Manual...
Page 82 E –DECLARATION OF CONFORMITY EXXFIRE Installation and Service Manual...
Page 83 F – UL LISTING LHDC EXXFIRE Installation and Service Manual...
Page 84 EXXFIRE BV Keyserswey 30 2201 CW Noordwijk The Netherlands Chamber of Commerce: 53952464 VAT: NL.8510.87.425.B.01 Tel: +31 85 4017970 Info@exxfire.com...
