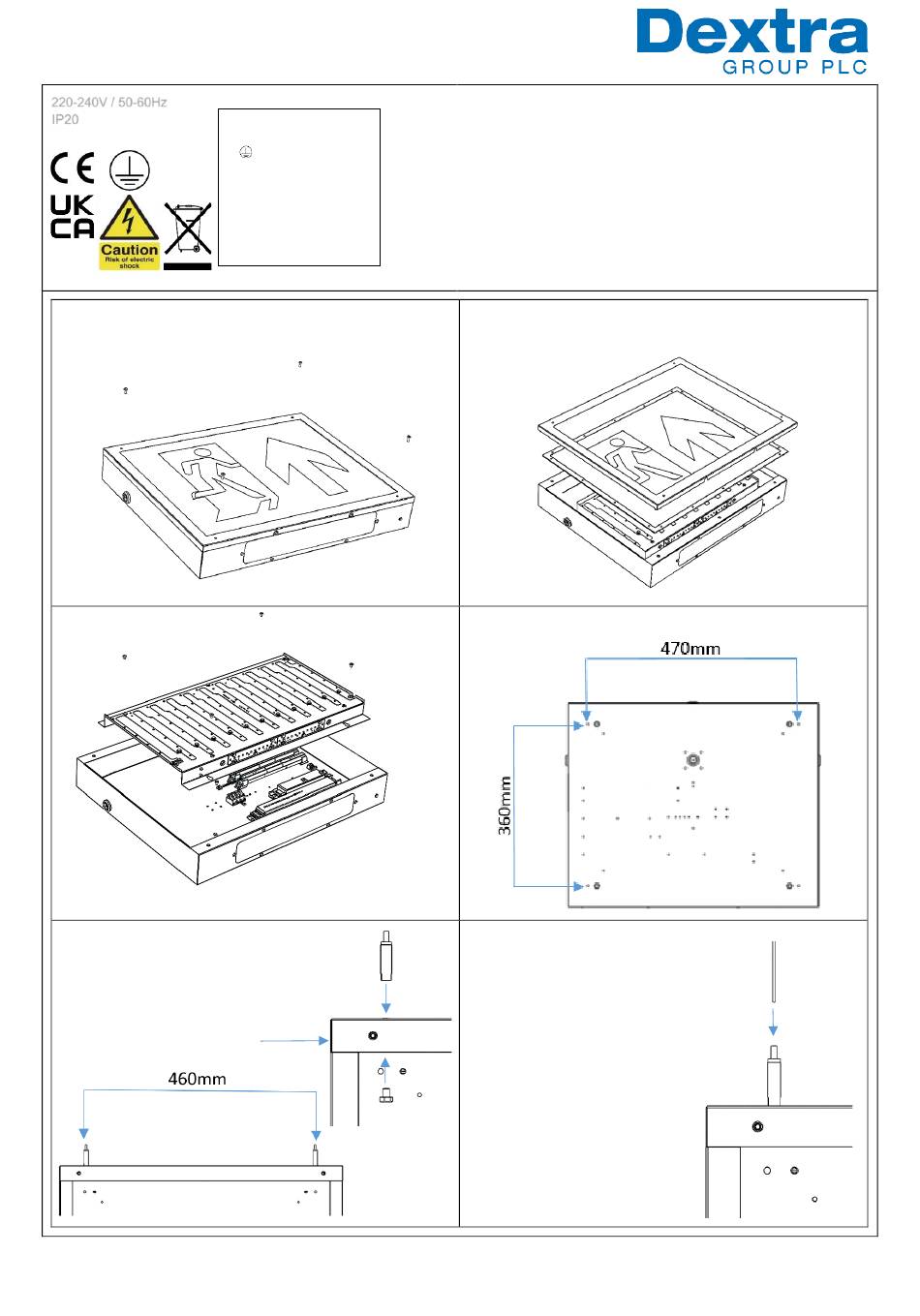

Dextra EXI XL Installation

EXI XL Installation
220-240V / 50-60Hz
IP20
1.

Remove screws

3.
5.

Top (suspended) fixings

Fix the suspension points to the
ceiling at the specified centres
Fit suspension clutch as shown
DIL-0473-0001
WARNING: Luminaire must be earthed. Risk of electric shock from LED boards if operated with cover
removed. Installation / operation outside of luminaires intended scope invalidates warranty. Suitable only for

Terminal Labelling:

domestic / light industrial / industrial applications within the scope of EN55015. Tested to compliance with
Power
BSEN 60598: specification for general requirements and tests. Must be installed by a suitably qualified person
L1 Switched Live
E Earth in accordance with all relevant legislation. Ambient operating temperature of 0°C to 25°C. If maximum
N Neutral
operating temperature is exceeded luminaire will automatically dim / switch off. Terminal blocks are rated to
Emergency
16A unless stated otherwise. The light source is non replaceable. LUMINAIRES WITH EMERGENCY PACK:
L2 Unswitched Live
When supply is isolated battery output terminals may be live if battery is connected. Isolate mains and battery
DA/AT3 DALI Autotest
before servicing. Emergency luminaires require unswitched live connection taken from same phase as
DA/AT3 DALI Autotest
switched supply. When unswitched supply is connected status indicator illuminates green, when unswitched
Dimming
-/D1/DA Analogue/DSI/DALI supply is disconnected indicator extinguishes and luminaire operates in emergency mode. 24 hour charge
+/D2/DA Analogue/DSI/DALI
period required before undertaking full discharge test. Emergency test sheets provided should be used to
L3 Switch Dim /
record all emergency tests. Batteries should be replaced when 3 hour duration is not met. Excessive switching
Corridor Function
of permanent live may result in premature battery failure. Battery electrolyte can be harmful to eyes / open
wounds, do not puncture, if electrolyte touches skin / eyes flush with water. Do not incinerate batteries.
Remove LED tray to
access housing
Revision - A
2.

Remove frame and legend

4.

Rear fixings

6.
Pass suspension wire
through the clutch and
adjust to the required
height. Cut off excess
suspension cable.
25/11/2022
