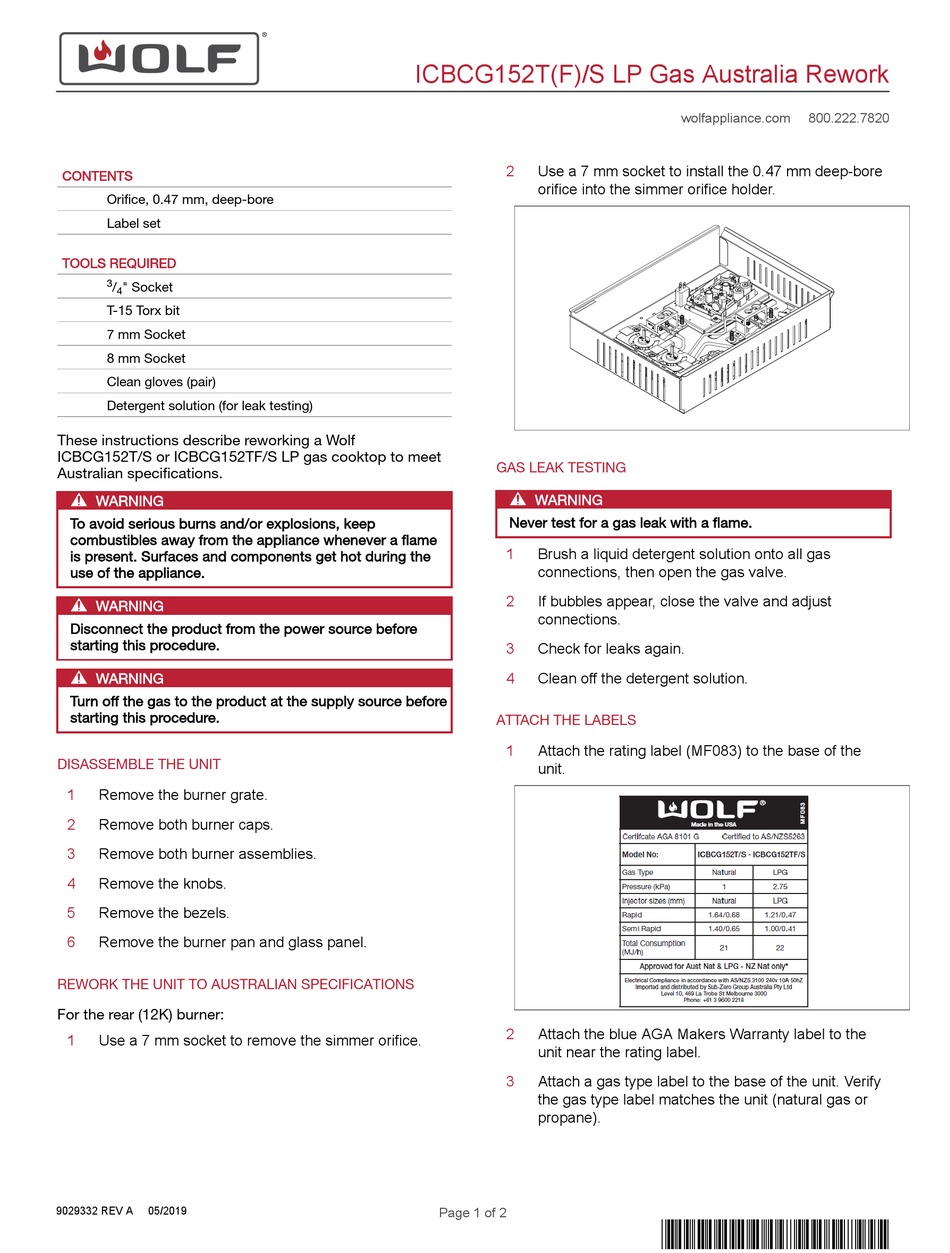

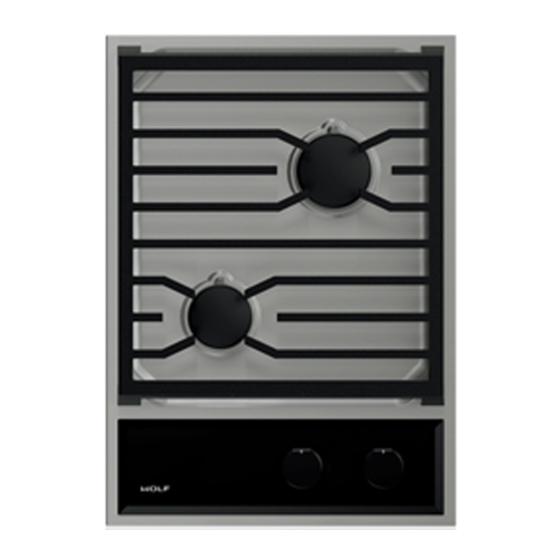

Wolf ICBCG152T/S Manual

CONTENTS

Orifice, 0.47 mm, deep-bore

Label set

TOOLS REQUIRED

3
/ " Socket
4
T-15 Torx bit
7 mm Socket
8 mm Socket
Clean gloves (pair)
Detergent solution (for leak testing)
These instructions describe reworking a Wolf
ICBCG152T/S or ICBCG152TF/S LP gas cooktop to meet
Australian specifications.
WARNING
To avoid serious burns and/or explosions, keep
combustibles away from the appliance whenever a flame
is present. Surfaces and components get hot during the
use of the appliance.
WARNING
Disconnect the product from the power source before
starting this procedure.
WARNING
Turn off the gas to the product at the supply source before
starting this procedure.

DISASSEMBLE THE UNIT

1 Remove the burner grate.
2 Remove both burner caps.
3 Remove both burner assemblies.
4 Remove the knobs.
5 Remove the bezels.
6 Remove the burner pan and glass panel.

REWORK THE UNIT TO AUSTRALIAN SPECIFICATIONS

For the rear (12K) burner:
1 Use a 7 mm socket to remove the simmer orifice.
9029332 REV A 05/2019
ICBCG152T(F)/S LP Gas Australia Rework
2 Use a 7 mm socket to install the 0.47 mm deep-bore
orifice into the simmer orifice holder.

GAS LEAK TESTING

WARNING
Never test for a gas leak with a flame.
1 Brush a liquid detergent solution onto all gas
connections, then open the gas valve.
2 If bubbles appear, close the valve and adjust
connections.
3 Check for leaks again.
4 Clean off the detergent solution.

ATTACH THE LABELS

1 Attach the rating label (MF083) to the base of the
unit.
2 Attach the blue AGA Makers Warranty label to the
unit near the rating label.
3 Attach a gas type label to the base of the unit. Verify
the gas type label matches the unit (natural gas or
propane).
