Summary of Contents for Microgate HICLOCK

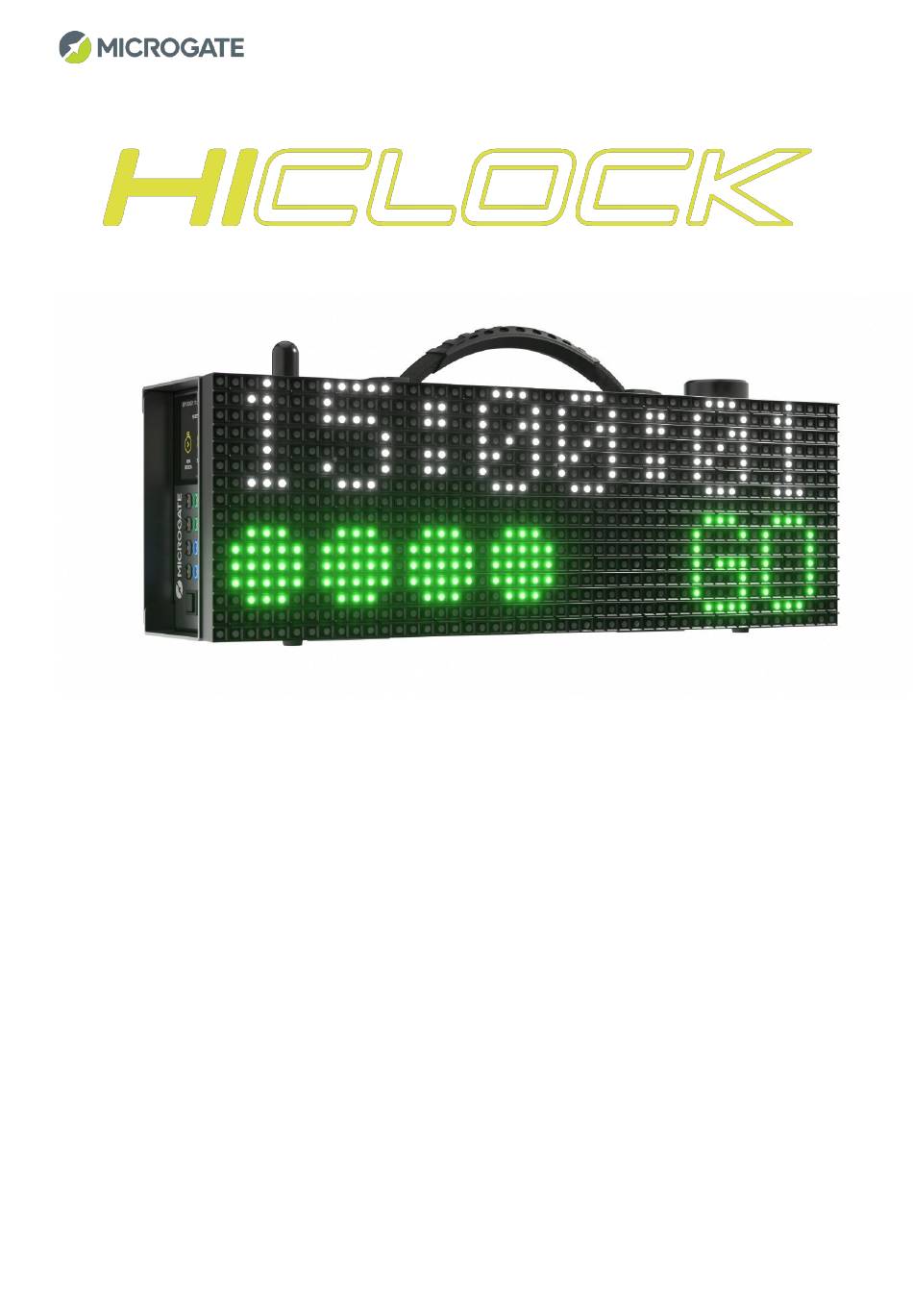

- Page 1 User Manual Firmware Version: 1.2.1 Manual Version: 1.0.0 Release Date: 13/02/2023...
-
Page 2: Table Of Contents
Session settings ..........................19 5.2.1 Display mode ..........................19 5.2.1.1 Mode 1........................... 20 5.2.1.2 Mode 2........................... 20 5.2.1.3 Mode 3........................... 20 5.2.1.4 Mode 4........................... 21 5.2.1.5 Mode 5........................... 21 5.2.1.6 Mode 6........................... 21 HiClock User manual IT – v 1.0.0... - Page 3 Firmware update ............................30 10 Technical specifications ..........................32 11 Connection to the ReiPro and RTPro Stopwatches ................... 33 11.1 RTPRO- HiClock Connection via Bluetooth ..................33 11.2 REIPRO- HiClock Connection via Bluetooth ..................35 12 Method of use ............................37 13 Cleaning the devices ..........................
-
Page 4: Hiclock General Description
LOCK GENERAL DESCRIPTION HiClock is the new Microgate start clock. Using a full colour LED matrix (16x48 pixels with 10mm spacing) it can display different starting sequences flexibly according to the timing requirements. The ability to configure the sequence and repetition time from the side touch display or the ability to load custom sequences from a USB stick enables simple and flexible coverage of even the most insidious requests. - Page 5 RTPro, ReiPro DISPLAY MODE 6 different modes of starting sequence display REPETITION TIME configurable repetition time PRESET TIMES 3 default repetition times can be preset and called up via touch or external keypad HiClock User manual IT – v 1.0.0...
-
Page 6: Inputs And Outputs
A short press pauses the current sequence in progress • A long press (2 seconds) changes the time of the sequence to the next default value (see chap. 0 for setting the default values). HiClock User manual IT – v 1.0.0... -
Page 7: Outputs
RJ45 E THERNET CONNECTOR The RJ45 connector is used to connect HiClock to a LAN network for it to be piloted by the RtPro or ReiPro stopwatches or by a PC via port 21967 of the selected IP address. MPHENOL CONNECTOR The 5-pole Amphenol connector allows HiClock to be powered at a voltage of from 12 to 28 volts in direct current. -
Page 8: Communication
OMMUNICATION HiClock is equipped with an external amplified GPS antenna for synchronization and a Bluetooth/WiFi antenna for optimum communication with Microgate or PC stopwatches. The full-colour LED matrix then enables optimal starting sequences to be viewed and the external IP67 speaker to be used for sound generation. -
Page 9: Management Software
Once the system is turned on using the ON/OFF button, the home screen gives us the following options: Page 1 1. Start a new session 2. Settings 3. Sync Page 2 4. Export Log 5. Disconnect BT devices Header bar Possible choices Software version HiClock User manual IT – v 1.0.0... - Page 10 Icons for the available choices are displayed in the middle area and, if there is an additional viewing page, dots are displayed representing the number of available pages. At the bottom of the screen there is the version number of the management software. HiClock User manual IT – v 1.0.0...
-
Page 11: New Session
ESSION Once you are in the New HiClock Session menu, you can select the type of session you want to use. The available sequences: • Rally and Climb o Rally 1 o Rally 2 Rally 1 Time in seconds Light... - Page 12 Time in seconds Light Tone False start window Long Boop No False Beep No False Beep False Green Beep False Green Beep False Green Beep False Green Long Beep False Silent False Silent No False HiClock User manual IT – v 1.0.0...
- Page 13 From this point on, the semaphore will start with the selected sequence and repetition time. The touchscreen summarizes the remaining time at zero with a countdown and the semaphore status (dot with the colour of the semaphore) HiClock User manual IT – v 1.0.0...
-
Page 14: Settings
ENERAL ETTINGS The general settings enable configuring HiClock for the following functions. The pages are scrolled through using the → or arrows highlighted on the Touchscreen and the different options can be selected using the + and - buttons; the X button takes you back to the main menu. -
Page 15: Date Format
HiClock accepts both European DD/MM/YYYY and American MM/DD/YYYY formats 5.1.4 Time format HiClock accepts both the European 24H time format and the American 12H AM/PM time format. 5.1.5 Time colour (time of day) The selectable colours for the time of day are: •... -
Page 16: Brightness Mode
Battery saver This setting defines after how long the touch display will be turned off. The selectable values are from Never (always on) to 30min. The display is reactivated with a single tap. HiClock User manual IT – v 1.0.0... -
Page 17: High Contrast
This setting provides visual feedback with a point of visual persistence on the display that helps you see more clearly where you touched the display. 5.1.11 LAN This section lets you view the LAN settings. The LAN settings can only be made with the Configuration App. HiClock User manual IT – v 1.0.0... -
Page 18: 5.1.12 Wifi
5.1.12 WiFi This section lets you view the WiFi settings. The WiFi settings can only be made with the Configuration App. HiClock User manual IT – v 1.0.0... -
Page 19: Session Settings
5.2.1 Display mode HiClock can show starting sequences with six different display modes. The following are examples of the views available for a Rally-Rally1 sequence with the information displayed next to it on the touchscreen. Each display can, depending on the chosen configuration, show the time of day at the top of the semaphore. -
Page 20: Mode 1
GO with 5 green pixels. 5.2.1.3 Mode 3 This display mode, starting -5 seconds from the start, displays an increasing sequence of orange pixels and then displays GO with 5 green pixels. HiClock User manual IT – v 1.0.0... -
Page 21: Mode 4
In mode 6, a consecutive number (starting bib) is displayed on the left of the semaphore and then the sequence with the pixels in the colour assigned to the phase of the sequence. HiClock User manual IT – v 1.0.0... -
Page 22: Mode 1 Displaying The Time Of Day
5.2.1.7 Mode 1 displaying the time of day HiClock User manual IT – v 1.0.0... -
Page 23: Sound Output Volume
“Auto” mode continuously generates sequences starting from the selected time and with the set repetition time. On the contrary, “Manual” mode generates the set sequence only on pressing the top right button (V) or with a pulse on line IN2. 5.2.4 Show time of day during sequence HiClock User manual IT – v 1.0.0... -
Page 24: Advise False Start
IN1 is displayed during the execution of the sequence. 5.2.6 Auto create start If this setting is activated, a start pulse with the relevant time of day is created in the memory of the device during the execution of the sequence. HiClock User manual IT – v 1.0.0... -
Page 25: Skip Event If Light Is Off
If this setting is activated, the sequence will start the first time at the next full minute of the reference time. 5.2.9 Visualization with disabled sequence When you pause the display sequence we can decide what to show on the displayboard. • Blinking red • All on • All off • Only Red HiClock User manual IT – v 1.0.0... -
Page 26: 5.2.10 Delay Show False Start
5.2.10 Delay show false start The value entered is the delay, given in seconds, with which the advance or delay of the start pulse acquired on IN1 will be shown on the displayboard. HiClock User manual IT – v 1.0.0... -
Page 27: Repetition Time
EPETITION TIME In this section of the HiClock configurations you can preset 3 sequence repetition time defaults. “Time#1” will be offered as a standard option when you choose the sequence repetition time. “Time#2” and “Time#3” can be selected when defining the repetition time by simply scrolling with the side arrows to the time. -
Page 28: Synchronization Menu
There are two possibilities in the synchronization menu: 6.1.1 Set Synchronization This section allows HiClock to be synchronized with the time and date defined by a pulse on line IN1 or by pressing the “START” button. 6.1.2 GPS and Time Zone HiClock can be synchronized by the GPS signal. -
Page 29: Gps Synchronization Mode
6.1.2.2 GPS Synchronization mode If the “None” parameter is selected, HiClock does not actually use the GPS synchronization even if the module is powered on and functioning. If “One Time” is selected, HiClock takes the GPS synchronization (PPS pulse) and then continues with the internal timebase. If “Continuous” is selected, HiClock is kept coupled to the GPS timebase “re-synchronizing”... -
Page 30: Battery Charging And Operating Time
1 provided that their environmental conditions are compatible with those of the device. HE TRIPOD FIXING SYSTEM On the back of HiClock there is a 5/8 inch pitch thread that allows the device to be mounted on a tripod with a photography attachment. - Page 31 Wait for the “Update completed successfully” message. You can now switch on HiClock updated to the latest version. If, for any reason, you are unable to follow these steps, you can force HiClock to go into “Recovery mode” (a mode in which you can run an update) by following these instructions: •...
-
Page 32: Technical Specifications
10/100/1000 Mbps Ethernet connection WiFi+BT 1 x Integrated WIFI/BT + Antenna module • WiFi: 802.11 ac/a/b/g/n • Bluetooth: 4.2/BLE GNSS 1 x Integrated GNSS + active antenna module • Simultaneous reception of GPS, Galileo, GLONASS, BeiDou HiClock User manual IT – v 1.0.0... -
Page 33: Connection To The Reipro And Rtpro Stopwatches
In the case of a Bluetooth connection for a new device, the first time (after which you no longer need to do this) HiClock must be connected to the RTPro stopwatch by following the steps below: From the RTPro main screen, click on the settings icon Select the “Bluetooth Pair devices”... - Page 34 Enter the numeric password that is shown on the HiClock display Wait until the device status is “Connected” HiClock User manual IT – v 1.0.0...
-
Page 35: Reipro- Hiclock Connection Via Bluetooth
In the case of a Bluetooth connection for a new device, the first time (after which you no longer need to do this) HiClock must be connected to the ReiPro stopwatch by following the steps below: From the ReiPro main screen, click on the settings icon Select the “Bluetooth Pair devices”... - Page 36 Enter the numeric password that is shown on the HiClock display Wait until the device status is “Connected” HiClock User manual IT – v 1.0.0...
-
Page 37: Method Of Use
LEANING THE DEVICES We understand that customers may have questions about cleaning and disinfection options for their Microgate products. The following applies to all Microgate products. 1. Disposable gloves are recommended when cleaning and disinfecting surfaces. 2. Turn off the device you want to clean and disconnect the AC power supply. Never clean a product while it is turned on or plugged in. -
Page 38: Technical Support
14 T ECHNICAL SUPPORT For any technical Support, please contact directly: Microgate s.r.l. Via Waltraud Gebert Deeg 3E 39100 Bolzano Italy https://microgate.it info@microgate.it HiClock User manual IT – v 1.0.0...
