The Alpha Ruby™
Owners Manual
Ruby Street Brewing, LLC
Fort Collins, Colorado
USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha Ruby and is the answer not in the manual?

Questions and answers

Related Manuals for Ruby Street Brewing Alpha Ruby

Summary of Contents for Ruby Street Brewing Alpha Ruby

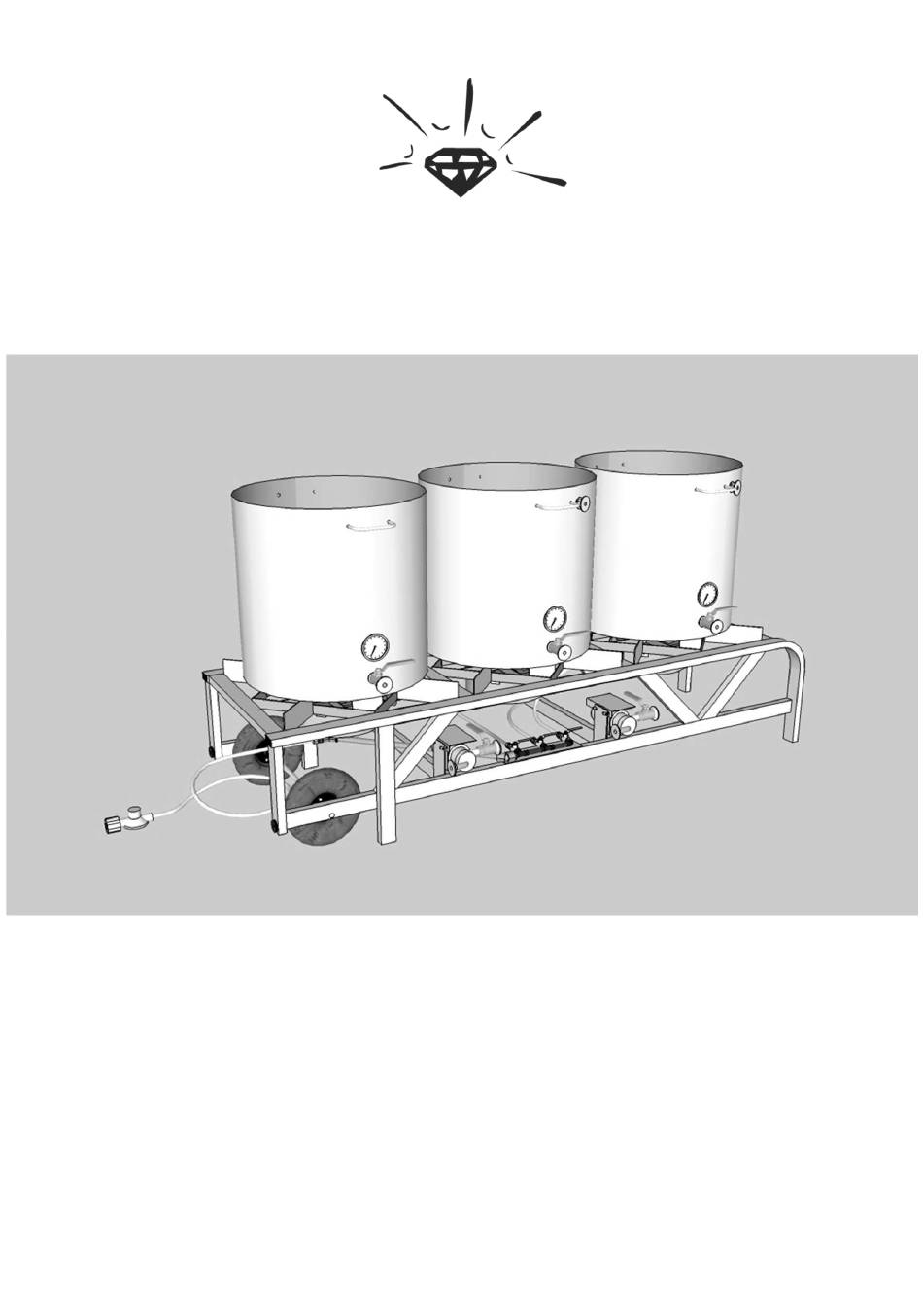

  • Page 1 The Alpha Ruby™ Owners Manual Ruby Street Brewing, LLC Fort Collins, Colorado...

  • Page 2: Table Of Contents

    Table of Contents Introduction Safety Instructions Brewery Overview Kettle Assembly Kettle Placement Operating Instructions Brewing Instructions Care and Storage Parts List Limited Warranty Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 3: Introduction

    Failure to follow all manufacturer’s instructions could result in serious personal injury and/or property damage. Ruby Street Brewing, LLC assumes no responsibility for personal injury or property damage sustained by or through the use of this product. If you have any questions or need assistance please contact us at:...

  • Page 4: Safety Instructions

    Safety Instructions WARNING: To Reduce the risk of serious injury, read the following important precautions before using The Alpha Ruby Brewery. • It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all precautions.

  • Page 5: Brewery Overview

    These fittings are extremely easy to clean and keep sanitary and offer a completely universal connection system. See illustration at right for proper assembly Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 6: Kettle Assembly

    Step 5: Hand tighten the compression nut onto to compression fitting while holding the valve assembly from the outside of the kettle. Step 6: Refer to instructions included with the thermometer for proper thermometer installation. Copyright © 2013 Ruby Street Brewing, LLC...
  • Page 7 ¾” silicone O-ring over the threaded fitting end on the outside of the kettle. Install the tri-clamp fitting onto the threaded fitting by screwing the fitting into the tri-clamp from the inside of the kettle. Tighten the fitting until the assembly is firmly mounted (Figure 3) Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 8: Kettle Placement

    • Make sure that each kettle is centered over the burner grate so that all (4) of the support fins contact the kettles evenly before operation. • Failure to properly center and align each kettle on the burner grates may result in damage to the valves, thermometers, and frame. Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 9: Operating Instructions

    Figure 8 1. Place The Alpha Ruby™ outdoors on a flat and level surface that is non-flammable and cannot be damaged by moisture. Shim legs with solid materials if necessary to make sure that the brewery frame is level and cannot rock or sway.

  • Page 10: Brewing Instructions

    9. Once the pump has been primed, connect the open end of the 4’ tubing to the inlet fitting at the top of the Mash Tun. Copyright © 2013 Ruby Street Brewing, LLC...
  • Page 11 Brewing Instructions (Cont) 10. Start the left pump by plugging into a GFCI protected outlet via extension cord. Slowly open the valve to allow sparge water to flow into the mash tun through the cork float sparge hose connected to the barb inside of the mash tun.
  • Page 12 Do not touch the valve bodies, tri-clamp fittings, or pump head during this operation, as they will all be at boiling temperatures. Copyright © 2013 Ruby Street Brewing, LLC...
  • Page 13 Hold the pumps at several different angles and shake gently to ensure that no liquid remains trapped within the pump heads. 37. Dry all kettles and kettle components immediately to prevent water spots. Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 14: Care And Storage

    • Upright Storage – Due to weight and size of Alpha Ruby frames, we DO NOT recommend storing frames on end.

  • Page 15: Parts List

    Parts List Copyright © 2013 Ruby Street Brewing, LLC...
  • Page 16 To order replacement parts, simply email your request to: Orders@RubyStreetBrewing.com Include part number, description, QTY, and serial number of your machine (located on bottom edge of pump bracket). We will respond with pricing and a shipping quote. Copyright © 2013 Ruby Street Brewing, LLC...
  • Page 17 Parts List Pump Assembly Mash Tun Boil Kettle Hot Liquor Tank Copyright © 2013 Ruby Street Brewing, LLC...

  • Page 18: Limited Warranty

    Limited Warranty Ruby Street Brewing, LLC warrants this product to be free from defects in workmanship and material, under normal use and service conditions for one year from the date of purchase. This warranty extends only to the original purchaser. Ruby Street Brewing, LLC’s obligation under this warranty is limited to replacing or repairing at Ruby Street Brewing, LLC’s option.
