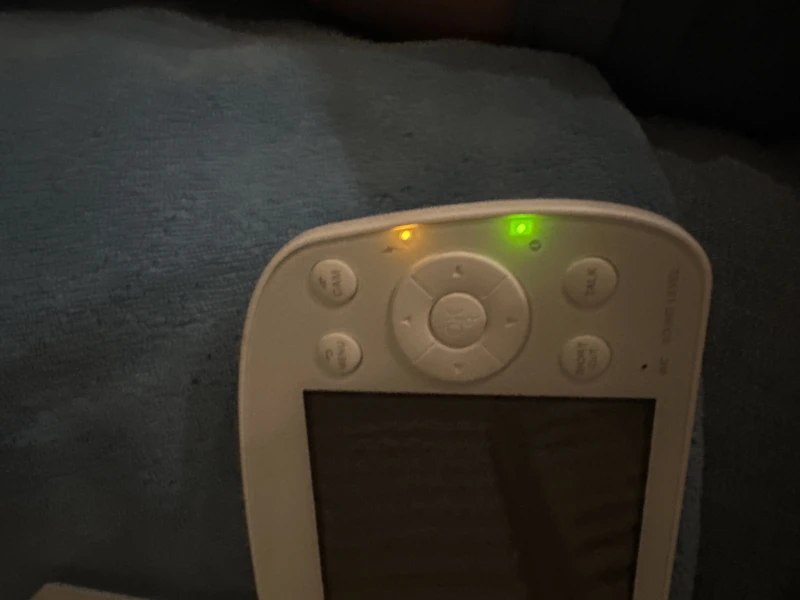

Monitor is not turning on, charging indicator is orange

User image 68030bd4b8264

Summary of Contents for MOMCOZY BM01

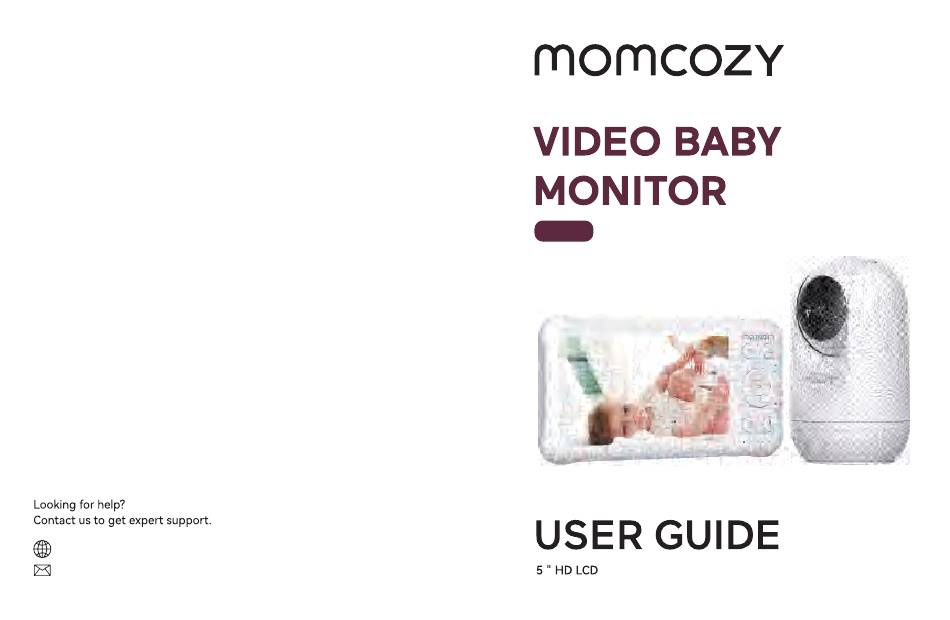

  • Page 1 Rev_1.0_EN_DE_FR_ES BM01 www.momcozy.com support@momcozy.com...
  • Page 2 ENGLISH...
  • Page 3: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS 20. Lullabies CAUTION 21. Refresh Rate PACKAGE CONTENTS 22. Factory Settings PRODUCT OVERVIEW 23. Contact Us SPECIFICATIONS GETTING STARTED TROUBLESHOOTING 1. Charging & Powering Baby Monitor FCC COMPLIANCE 2. Powering Camera WEEE COMPLIANCE 3. Pairing the Baby Monitor & the Camera IC CAUTION 4.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS · Check the reception regularly. Test the camera before use and after changing the camera’s location. · Strangulation Hazard—Children have STRANGLED in cords. Keep this cord · For indoor use only. out of the reach of children (more than 3 ft (0.9 m) away). Do not remove this tag. ·...
  • Page 5: Product Overview

    PRODUCT OVERVIEW Monitor Power On/Off & LCD On/Off: Press and hold for 3 seconds to turn on/off the monitor. Short press: Turn on/off the LCD screen. When the screen is turned on, press and hold for 8 seconds to reset the system. Volume adjustment: Press the left button to reduce the speaker volume, and press the right button to increase the speaker volume.
  • Page 6: Getting Started

    GETTING STARTED Camera 1. Charging & Powering Baby Monitor 1) Connect the monitor adapter to the monitor and a power outlet. 2) Unplug the unit when its power indicator turns off, indicating a full charge. Unplug the unit after fully charging the monitor, which can prolong the lifespan of the device.
  • Page 7: Placing The Camera

    5. Wall Mounting Camera Step 3: 1. Press PAIR button on the rear 1) Rotate the knob in anticlockwise direction to adjust the wall mount bracket, of the camera. then fasten the joint and secure the angle. 2. Then the monitor will auto-pair with 2) Mark the upper and lower holes with a pencil.
  • Page 8: Functions & Operations

    FUNCTIONS & OPERATIONS 1. Volume Adjustment Use Shortcut Button: Status Icons Press Button ->Left/Right button No Signal to quickly adjust the volume. Signal Strength Cycle Cameras Enabled ( rotate every 10 seconds) · To adjust system sound, navigate to Monitor ->...
  • Page 9: Lullaby

    4. Lullaby 7. Screen Sleep Use Shortcut Button: Explanation: Press to enter the lullaby page. Press & This function is to set the monitor screen to sleep without powering off buttons to select the lullaby song,press & the monitor. buttons to adjust the volume of the lullaby, Step 1: and press to turn on or off the lullaby.
  • Page 10: Split Screen

    10. Selecting a Camera & Scanning Step 2: Note: 1. Select through -> -> This function requires more than two cameras to be turned on. button. Multiple cameras are powered on and within the monitor connection range. Step 1: 1. Press to enter menu page.
  • Page 11: Speaker Volume

    14. VOX · The monitor is paired with one camera by default, you should keep at Explanation: least one camera connected. 1. This function is used to wake up the monitor screen and light up. There are three wake-up levels (low/medium/high). When the sound detected by the camera reaches 75dB/65dB/60dB or more, the monitor will wake up to trigger 12.
  • Page 12: Date/Time

    17. Temperature Explanation: Step 2: 1. Select and set the time you can set the maximum/minimum temperature and turn on the temperature you want. Press to start / finish alert, so that the baby monitor beeps whenever the room temperature falls setting.
  • Page 13: Language

    19. Language Step 1: 1. Press to enter menu page. Explanation: 2. Choose -> There are four languages available in your device, you can choose your -> button. language here. Step 2: Step 1: 1. Set the refresh frequency based on use in your area. 1.
  • Page 14: Specifications

    SPECIFICATIONS Camera Monitor Connectivity 2.4GHz FHSS Connectivity 2.4GHz FHSS Image Aspect 16�9 Image Compression H.264 Image Compression H.264 Operating Voltage Operating Range 960ft (line of sight, no obstructions) 90 degrees vertical (Up=50°, Down=40°) Pan-n-Tilt 350 degrees horizontal (Left=175°, Right=175°) Temperature Alert Volume Control 9 levels Zoom In (2X)
  • Page 15: Troubleshooting

    TROUBLESHOOTING No sound from ·Check whether the system sound volume is set too High or · Check that the camera and monitor are turned on. the monitor? Low. It’ll be mute if set so. · Check the camera and make sure it is well plugged into Product not the outlet.
  • Page 16: Fcc Compliance

    IC statement FCC COMPLIANCE(Camera) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic DevelopmentCanada’s licence-exempt RSS(s). Operation is Any Changes or modifications not expressly approved by the party responsible subject to the following for compliance could void the user’s authority to operate the equipment. two conditions: This device complies with part 15 of the FCC Rules.
  • Page 17 Cet émetteur radio IC : 29085-BM01A a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci-dessous, avec le gain maximal admissible indiqué. Les types d'antenne non inclus dans cette liste qui ont un gain supérieur au gain maximum indiqué...
  • Page 18 IC statement (Monitor) FCC COMPLIANCE(Monitor) This device contains licence-exempt transmitter(s)/receiver(s) that comply Any Changes or modifications not expressly approved by the party responsible with Innovation, Science and Economic DevelopmentCanada’s licence- for compliance could void the user’s authority to operate the equipment. This exempt RSS(s).
