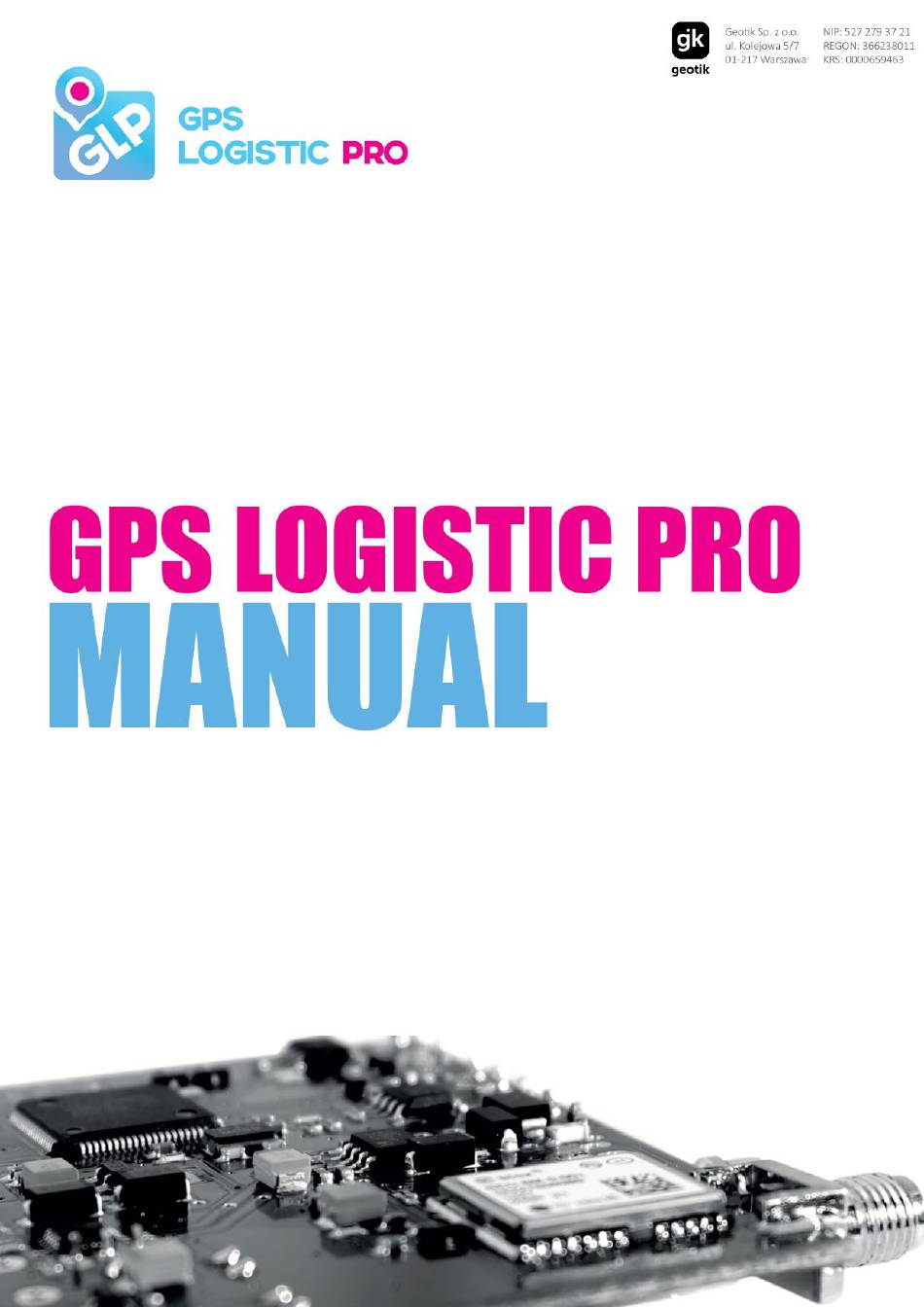

geotik GPS LOGISTIC PRO Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS LOGISTIC PRO and is the answer not in the manual?

Questions and answers

Asad
April 8, 2025

I am Technician GPS

0

Summary of Contents for geotik GPS LOGISTIC PRO

  • Page 2: Table Of Contents

    Contents Release history ..........................3 Hardware ............................6 2.1. Technical details GLP 2.0 ......................6 2.2. Technical details GLP 1.5 ......................8 2.3. LED indicator GLP 1.5 ........................9 2.4. LED indicator GLP 2.0 ........................9 Installation guidance GLP 1.5 ....................10 Installation guidance GLP 2.0 ....................

  • Page 3: Release History

    1. Release history Document version Description 12/12/20 • Please check http://bit.ly/GLP_-_changelog 10/09/20 • Added GSM module update in GLP 2.0 firmware (.dfotaupdate). Requires firmware 1.02.39 or later. • Added new Data Acquisition Trigger #246 22/08/20 • Updated GSM_CFG description. APN and GSM module mode works from firmware version 1.02.37 (GLP 2.0 only) 06/08/20 •...
  • Page 4 1.01.62 • Added GLP 2.0 01/08/2019 V4.01.11 • New firmware 18/12/17 V3.10.09/V4.01.09 • New firmware V5.01.09/V7.01.09 16/11/17 V4.01.08 • New firmware 29/10/17 V4.01.07 • New firmware 22/10/17 V2.72.06/V3.10.06 • New firmware V4.01.06/V5.01.06 V7.01.06 11/10/17 V2.72.02/V3.10.02 • New firmware V4.01.02/V5.01.02 V7.01.02 27/08/17 V2.72.01/V3.10.01 •...
  • Page 5 V2.64.06/V3.02.06/01 • New firmware V2.64.06/V3.02.06 09/12/15 • New chapter “GLP extension hack – mounting instruction” V2.64.03/V3.02.03/01 • New firmware V2.64.03/V3.02.03 26/10/15 V2.63.06/V3.01.09/01 • New firmware V2.63.06/V3.01.09 08/10/15 V2.63.04/V3.01.07/01 • New firmware V2.63.04/V3.01.07 25/09/15 • Added “Info 32” (terminal confirmation) in protocol V2.63.03/V3.01.06/01 •...

  • Page 6: Hardware

    V2.53.02.01 • New firmware V2.53.02 26/06/14 V2.53.01.01 • New firmware V2.53.01 16/06/14 • New commands and variables • New chapter “Error codes” V2.52.05.02 • QR codes added 27/05/14 V2.52.05.01 • New firmware V2.52.05 and V2.52.04 05/05/14 • New commands and variables •...
  • Page 7 Power consumption • Sleep mode – 7.3mA @ 12V, 3mA @ battery • Normal mode - 70mA @ 12V, 90mA @ battery • Sending data - 250mA @ 12V, 350mA @ battery • MAX (Battery charging) – 350mA @ 12 V Environmental •...

  • Page 8: Technical Details Glp 1.5

    2.2. Technical details GLP 1.5 Element Specification Interface • Power supply 9 – 36 V • 1x Analog input, 0 – 36V, 12bit, 1600Hz, averaging of 1024 samples • 2x Analog inputs (optional) 0 - 36V, 12bit, 1600Hz, averaging of 1024 samples shared with RS interface* •...

  • Page 9: Led Indicator Glp 1.5

    Environmental • Operating temperature –20°C to 55°C conditions • Storage temperature –40°C to 60°C • Operating humidity up to 95% (non-condensing) • Enclosure protection rating IP54 • Increased Impact resistance • High resistance to vibration • Size (LDW): 136 x 80.15 x 18 mm, SMA GPS or GSM antenna connector +6.8 mm in length. Additional •...

  • Page 10: Installation Guidance Glp 1.5

    2.4 Installation guidance GLP 1.5...

  • Page 11: Installation Guidance Glp 2.0

    2.5 Installation guidance GLP 2.0...
  • Page 12 SafeCANs were modified. There is one additional wire which need to be connected to GND. IMPORTANT: Firstly always connect the VCC and GND main beam (power), then SafeCAN - never the other way around. Connection contactless converter (SafeCAN) without main beam will leads to device damage during the first or re-connection of power.

  • Page 13: Ecodriving

    2.6 EcoDriving EcoDriving is a functionality that allows measurement of driver behaviours (harsh acceleration, braking and turning). GLP has implemented it in two different ways of measurement: based on GPS, • based on accelerometer. • • based on accelerometer; counting events only Accelerometer is standard feature of GLP.
  • Page 14 Without data: CANID:1433831715; With proper data: CANID:1433831715;00000101=0100000000000000;00000119=0700000000000000;00000113=4400300000673 300;00000123=4400300000673300; How to find long term information such distance or fuel level? .fcansearch X - Activates periodic cansearch when ignition is on. X is a time in minutes, if set to 0 periodic cansearch will be disable.

  • Page 15: Bluetooth Interface For Technical Support (Optional)

    2.8 Bluetooth interface for technical support (optional) This functionality enables wireless communication between the device GLP, and the external device (support) without the need for additional service cable. Wireless Bluetooth connection gives you the same functionality as connection with using a service cable. Wireless connection is protected by a PIN whose use is required when establishing a connection.

  • Page 16: Commands And Variables

    3 Commands and variables Commands (in text form) may be sent via SMS or TCP channel. It is possible to send a command as an answer for data delivered to server by using PUT method sent from server side. Each command must be ended with CRLF “[0x0D][0x0A]” (does not apply for SMS commands), and started with dot or at sign, for example: TCP: .systemreset[0x0D][0x0A]...

  • Page 17: Executable Commands

    3.5 Executable commands Syntax Description .FLAG_TEL_RESET XX Reset FLAG_TEL to 0 where XX is GLP password. After reset GLP will send confirmation SMS. Example: .FLAG_TEL_RESET OPBEYWLS .get X Read variable (answer will be sent via SMS to number from which was the request) where X is a variable.
  • Page 18 .test Test of basic functions of device. Answer via SMS. Example answer: GPS=5; GSM=23; GPRS=1; BAT=98%; IGN=0; INPUTS=0001; VCC=12661mV; ADC=26mV; FUEL=0; DIS=0; RPM=0 Where: GPS – signal strength (0-5) depends on the HDOP: 0 – no fix 1 – more or equal 5 HDOP 2 –...
  • Page 19 .bootupdate Performs download and update of bootloader file file (SERVICE_UPDATE_FILE) from SERVICE_HOST. After successful download new bootloader will be installed. Rarely used. Do it with extra care. No confirmation received. Works from firmware 1.2.19 (GLP 2.0 only) Example: .bootupdate .dfotaupdate Performs download and update of GSM module firmware in GLP 2.0.
  • Page 20 .didadd XXX [a0, Add driver ID where XXX is driver ID and a0…a7 are actions (optional). If ID is present only actions will a1,a2,a3,a4,a5, be replaced. a6,a7] a0…a7 – actions to do ACTIONS: 0 – none 1 – save data 2 –...
  • Page 21 .rstbtpin Reset Bluetooth PIN (for devices with Bluetooth module only!) to default value – "0000". To reset Bluetooth PIN, you must send this command from the service number. Return: 1. [WARNING!] PIN is not reset. Your phone number is not a service number!; 2.

  • Page 22: Read-Only Variables

    3.6 Read-only variables Name Description version Firmware version ismqtt firmware version type: YES – mqtt enabled NO – mqtt disabled GLP2.0 – standard GLP 2.0 imei IMEI number imsi IMSI number Battery information: state [0-normal/1-charging], level[%], voltage[mV] GSM signal strength creg Information about the registration status and access technology of the serving cell Quantity of visible GPS satellites...
  • Page 23 FLAG_TEL Flag to control telephone lock level. Syntax: ftel ftel – 3 options, default 2, description in chapter “Telephone lock level” Example: .set FLAG_TEL 2 LIMIT_TEL This parameter allows to set device from “other” tel number. Syntax: lt lt – after each sms with specific function from “other” number, parameter will be decremented by 1; when value is 0 SMS are ignored;...
  • Page 24 GSM_OPS_LIST Preferred operator code, if this network is in range GSM module connect to it. Syntax: opsc opsc – max 12 characters, operator code consists of two parts: Mobile Country Code (MCC) and Mobile Network Code (MNC) without space between them, blank or 0 set it to full automatic mode. Example: .set GSM_OPS_LIST 26001 SERVER_HOST Host name or IP address.
  • Page 25 GSM_CFG Retransmit timeout, interval between clearing errors flag which block gprs sending. Syntax: rt,mq,apn,net rt – max 65534 second, 0 – disabled, default 900 mq – restart timeout related to mqtt error counter flag, default 0 apn – APN mode: 0 (APN used from configuration); 1 – auto APN based on mother network MCC/MNC net –...
  • Page 26 FILTER0 ... Configuration of GPS filters to control the data logging, sending and actions of event rules. FILTER7 Syntax: tp,dg,sp,tm,rp,hd,ts,ig,sl,a0,a1,a,2,a3,id,fm tp – sending mode, 3 options, default 2 0 – do not send 1 – send last position from packed data 2 –...
  • Page 27 GPS_CFG Configuration of parameter number for odometer value, High Resolution Speed Flag, State of A-GPS and GPS Jamming detection (parameter number). Syntax: op,hr,ag,ja op – parameter number for odometer, 0 – not send; odometer updated only when speed above 5 km/h hr –...
  • Page 28 PULSE_CFG Configuration of pulse measurement. Syntax: mo,pn mo – working mode, 3 options: 0 – disabled 1 – frequency measurement, result in Hz 2 – pulsometer measurement, summing pulses 3 – pulse duty cycle measurement, result in % pn – parameter number for pulse measurement, 0 – not send Example: .set PULSE_CFG 1,20 PULSE_THRESH Threshold for pulse measurement for alarms.
  • Page 29 ALARM0 ... Parameters to control event rules. ALARM7 Syntax: a0,a1,a2,a3,a4,a5,a6,a7 a0 – or/and condition for alarm events, 0/1 a1…a7 – events to check EVENTS: 0 – none 100 – ignition low state 101 – ignition high state 200 – analog input 0 (supply voltage) low state 201 –...
  • Page 30 EXTEN_CFG Configuration to control working of extension devices. Syntax: type,par type – mode of working/type of device, 4 options: 0 – none/Additional Analog inputs 1 – RS232 Camera 2 – RS485 Camera 3 – TMR Par – additional parameter, actually used only with cameras to set size of picture (depends on camera) Example: .set EXTEN_CFG 0,0 Example: .set EXTEN_CFG 2,4 ECO_CFG...
  • Page 31 OPS_CFG Enabling/disabling operator list. Operator groups have priorities (1 – high, unknown – low) and GLP will try connect to operator codes with the highest priority, it will check them with available operators. Syntax: oc oc – 2 options, default 0 0 –...
  • Page 32 DKEY_LOGON Actions to do after driver key is logged. Syntax: a0,a1,a2,a3,a4,a5,a6,a7 a0…a7 – actions to do ACTIONS: 0 – none 1 – save data 2 – save data + send via GPRS 3 – save data + send via SMS 4 –...
  • Page 33 FAULT_CFG Enabling/disabling reading status of fault lamps and fault codes (DM1 in SAEJ1939-73) They will be send on parameter 244: PL,AWL,RSL,MIL,FAULT for example 0,0,0,0,00000000, where: PL – Protect Lamp, lamp used to relay trouble code information with a vehicle system that is most probably not electronic subsystem related.

  • Page 34: Configuration Of Basic Functions

    4 Configuration of basic functions 4.4 Unlock the device The device is default locked for communication via SMS (from non SERVICE_TEL number) and communication with configurator. Communication lock controlled by flag FLAG_TEL. You can disable it by set 0 to correspond parameter if you have TCP connections or if your number is SERVICE_TEL.

  • Page 35: Update Procedure Over Usb Connection For Glp 2.0

    1. Remove any existing file(s). 2. Copy new firmware BIN file. 3. Disconnect device from USB cable. 4. Connect external power source (power up device) and wait for the update. https://docs.geotik.com/display/GLPDOC/GLP2+firmware+update+using+USB+cable 5 Firmware changelog GLP 2.0 Version Description Please follow on-line http://bit.ly/GLP_-_changelog...
  • Page 36 1.01.56 • improved .alllogs command 04/04/19 • fixed some bugs in GSM module algorithm • fixed bug in sending big amount of data: e.x. cansearch 1.01.55 • MQTT: improved reconnection feature 28/03/19 • saving additional logs in memory from GSM module 1.01.54 •...

  • Page 37: Firmware Changelog Glp 1.5

    6 Firmware changelog GLP 1.5 Version Description V4.01.30 • MQTT: fixed problem with mixing Events (braking/accelerating and accidents) 02/10/18 V4.01.29 • MQTT: fixed problem with EcoDriving events • MQTT: back to old seat sensor counting logic 25/09/18 V4.01.28 • MQTT: improvement of “mil” value 19/09/18 V4.01.27 •...
  • Page 38 V4.01.08 • MQTT: Added to passengerCount singals from DroneIO/OW 29/10/17 V4.01.07 • MQTT: changed engine status value 22/10/17 • MQTT: disabled sending odometer value if 0 V2.72.06/V3.10.06 • Changed variable user and service tel length to 20 bytes V4.01.06/V5.01.06 • SSL disabled when updating V7.01.06 11/10/17...
  • Page 39 V2.67.08/V3.05.08 • Improved testcan and cansearch command – now it can read up to 170 frames 29/02/16 • .testflash/@testflash – new command to test whole memory V2.67.05/V3.05.05 • Fixed taking picture from RS485 Camera with different ID than 0 17/02/16 V2.67.03/V3.05.03 •...
  • Page 40 V2.60.02 • Driver ID will logout immediately when GLP goes sleep 07/07/15 • ADC_CFG – new sub-parameter with time for averaging analog input • ADC2_CFG – new parameter to support two additional analog inputs (parameter, threshold and averaging), needs additional elements on PCB •...
  • Page 41 V2.55.01 • Fixed sending output state (requires new GLP plugin/driver on server) 15/12/14 • Fixed file writing to memory (e.g. update) when Driver ID is enabled, it could cause Driver ID file erasing • DKEY_CFG – new sub-parameter to independent control iButton, iPkey, and FMI ID •...

  • Page 42: Error Codes

    V2.52.03 • New compiler, code 20% smaller 10/04/14 V2.52.02 • Fixed problem with disabling CutOff wake up 24/03/14 V2.52.01 • Event rules added 14/02/14 • FILTER0 – new sub-parameter to control action of event rules • ADC_CFG – new sub-parameter with thresholds to event rules •...

  • Page 43: From Http Server

    Data transmission error (host connection available) Wrong server HTTP response TCP connection closing failed 7.5 From HTTP server Number Description Too frequent data update (min 2sec delay) Server didn't pick up the data Header error Wrong password Unrecognized transmission type Data quantity/declaration mismatch Marking samples with date and time in the future is forbidden Samples CRC mismatch –...

  • Page 44: Data Acquisition Triggers

    8. Data Acquisition Triggers Data acquisition triggers are reported on parameter 67. Available from firmware 2.71.50 / 3.10.50 / 4.1.50. Number Trigger Acceleration (source: accelerometer) over threshold (eco driving event) Braking (source: accelerometer)over threshold (eco driving event) Cornering (source: accelerometer) over threshold (eco driving event) Acceleration (source: GNSS) over threshold (eco driving event) Braking (source: GNSS)over threshold (eco driving event) Cornering (source: accelerometer) over threshold (eco driving event)

  • Page 45: Jamming / Interference Monitor Reported States

    Locking doors Immobilizer OFF (inactive) Immobilizer ON (active) GSM module reset (starting from firmware 1.02.48) GNSS module reset (starting from firmware 1.02.48) Default configuration restored Bootloader update Simulated ignition ON (starting from firmware 1.02.48) Successful GNSS module update (BG96 in GLP 2.0) (starting from firmware 1.02.48) Periodic configuration save to memory Output (any on GLP) deactivated (OFF)

  • Page 46: Indicators From Canbus

    2. As a backup OUTPUT 1 in GLP 2.0 is used too. When .immoon / .immooff command is used you will receive both confirmation the command was received (reason #64 and #68). Configuration is perform using CARSH_CFG setting. You can find more details regarding care sharing functionality online https://docs.geotik.com/display/GLPDOC/Car+Sharing...
