WARRANTY Cautions: Do not spray flammable insecticides and other sprays near the gamepad. Do not put liquids on the gamepad such as water or juice! It may cause the keys to malfunction or be damaged. Do not plug or unplug the USB cable with wet hands. Do not use it in humid or hot places, such as bathrooms.
WHAT’S IN THE BOX 1xController 1xUser Guide 1xUSB charging data cable CARE & MAINTENANCE Please use soft duster or damp cloth to clean the gamepad. Do not use solvent, e.g.: gas, thinner, alcohol, kitchen detergent, chemical wipes...It may cause deformation and color fallout. Do not use wet rag wipe this gamepad which will cause internal damage.
Page 4

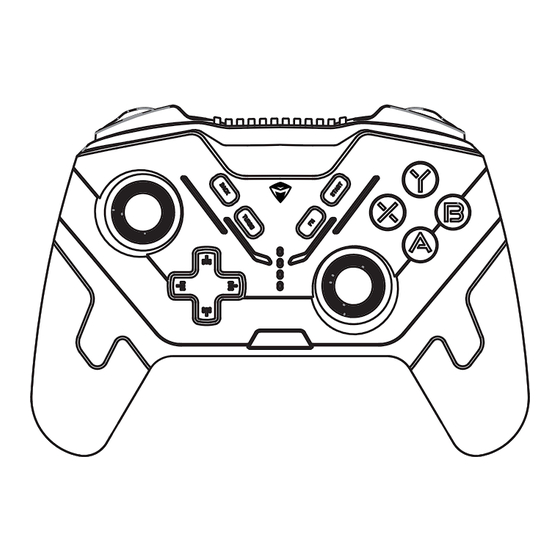

BUTTONS LAYOUT START button BACK button FN button TURBO button ABYX Left stick (L3) button Directional Right stick (R3) pad(D-pad) HOME button M1 programmable button M2 programmable button Linear Trigger LT(L2) Linear Trigger RT(R2) Left Bumper(L1) Right Bumper(R1)
Page 5
X: Wireless Xinput mode/PC mode-the name of the device: Xbox Wireless Controller. D: Wireless Dinput/Android mode-device name: MACHENIKE HG510W; S: Switch mode-the name of the device: Pro Controller; V: Apple IOS mode-device name: Xbox Wireless Controller;...
Page 6
COMPATIBILITY Xinput Mode-Windows 8/10/11 Windows operating system compatible with Xinput mode and S mode. Xinput mode is widely used in 3A games and latest games of Microsoft and Steam platform. S mode is Switch Pro, It can operate in Windows system, switch on gyroscope function through Steam.
Page 7
COMPATIBILITY Switch mode-NINTENDO SWITCH In s mode, press and hold FN+A buttons for three seconds to switch to the Switch controller layout. In S mode, this device support switch, and PC to connect. Support use HOME button to wake on controller and remote console wake on . The controller support Gyro motion control .
Page 8
2. Press and hold the Home button for 3 seconds, until the 4# indicator flashes, that means the device enter to pairing mode. 3.Turn on the phone settings - Bluetooth, search and connect "MACHENIKE HG510W". Note: This mode can only be used if the game supports gamepad operation.
Page 9
ABOUT KEYLINKER Introduction Machenike is committed to creating an awesome gaming experience for every gamer. Since there are many platforms support gamepads, and every gamer and even every different game may require different settings to match the game operation. Machenike Keylinker supports custom settings for gamepad buttons, trigger , macros and joystick etc.
FEATURES Multi-platform compatibility, PC, Switch, IOS, Android, HarmonyOS; Switch modes via ‘Game mode switch slider’; Adjustable brightness & zone light settings; Configure your controller via Keylinker APP ; EXTENDED FUNCTIONS Brightness Adjustment Press FN + D-pad ←/→ to reduce/enhance the overall light backlighting of the controller.
Page 11
EXTENDED FUNCTIONS Programmable Button Configures Macro Configures macro via controller 1. When the controller is connected, press the Fn + M1/M2 button at the same time. Lights start to flow from the V-shaped indicator strip, indicating that it has entered the macro recording state. If it does not flash, please repeat the operation.
TECH SPECS Executive Standarad Q/0212LSKJ0910-2019 Working Current 10-40mA Sleep Mode Current 10uA-50uA Vibration Current 80-130mA Input Power 5.0V 500mA Battery Capacity 3.7V/860mAh Charging Time About 2-4hours Using Distance Range CONTROL PART This is a raised plus sign-shaped toggle that resides Directional pad (D-pad)*1 Set between the left and right sticks.
