For larger frames, side rails can be joined above a foot with 1 x set of fixings into each length.
Extra legs can also be installed onto cross rails to increase load bearing capacity of the frame.
Midland Fixings Ltd
The Parrs, Lilac Grove, Beeston
Nottingham NG9 1PJ
© MIDLAND FIXINGS LTD.
Call 0115 922 1585
Email sales@midfix.co.uk
Visit www.midfix.co.uk
QWIKFRAME MODULAR
SUPPORT SYSTEM

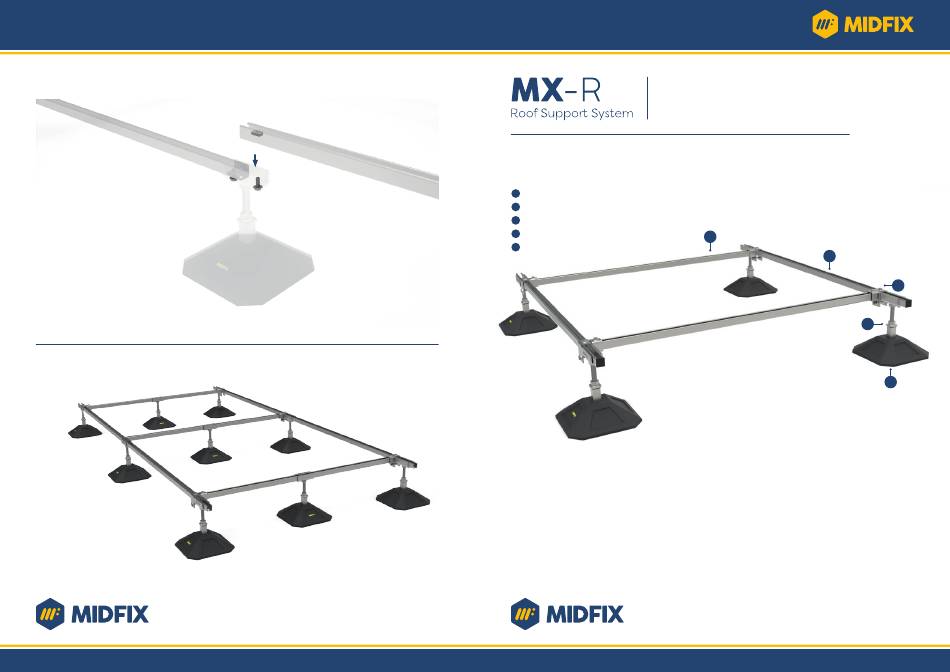

QFR41 QWIKFRAME ASSEMBLY INSTRUCTIONS
Cross Rail
1
Side Rail
2
Single Socket Bracket
3
Leg Assembly
4
Qwikfoot Square
5
MX-R Qwikframe is a modular frame system for supporting roof mounted HVAC equipment.
This versatile system is very simple and easy to install and can be easily manipulated to suit
different needs. Qwikframe utilises regular channel with no welded alterations, meaning beams
can be made to any length. The frame is mounted on height adjustable legs with Qwikfoot feet
made from anti-vibration rubber, designed to spread the load without damage to the roof membrane.
Specification:
Overall height: Adjustable from 324mm to 424mm
Finish: All metal components hot dip galvanised to BS EN 1461:2019
Torque: 55Nm unless stated otherwise
Midland Fixings Ltd
The Parrs, Lilac Grove, Beeston
Nottingham NG9 1PJ
1
2
4
5
Call 0115 922 1585
Email sales@midfix.co.uk
Visit www.midfix.co.uk
3
Advertisement
Table of Contents
Related Manuals for MIDFIX MX-R
Summary of Contents for MIDFIX MX-R
- Page 1 Extra legs can also be installed onto cross rails to increase load bearing capacity of the frame. MX-R Qwikframe is a modular frame system for supporting roof mounted HVAC equipment. This versatile system is very simple and easy to install and can be easily manipulated to suit different needs.
- Page 2 1. Insert the leg assemblies into the feet and set them approximately in position with the 4. Lower the cross rails onto the side rails and fix with M12 set screws and channel nuts. U brackets aligned. Socket brackets should be positioned as close to the leg assembly as possible.
