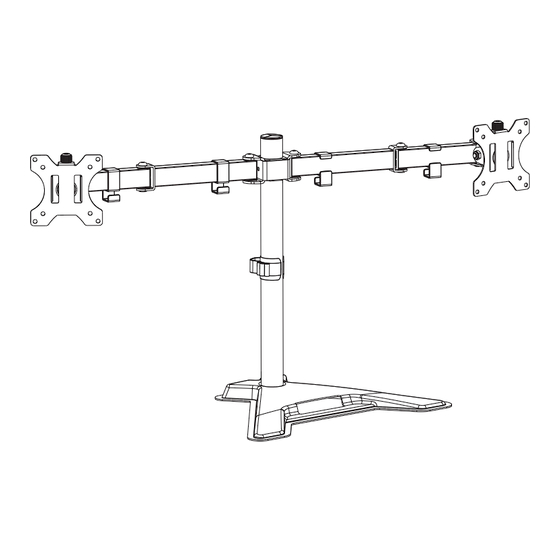

- Page 1 Free Standing Dual Monitor Stand Instruction Manual PR1009 27" 75x75 100x100 (8kg/17.6lbs)x2 If you have any questions , please contact us via: help@ohopeglobal.com V1.0...
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via help@ohopeglobal.com. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. -
Page 3: Step 1: Pole Installation
ASSEMBLY STEPS STEP 1: Pole Installation Use the 4mm Allen Key (J) to tighten the screws (F) into the pole (D) from the bottom of the base (C). -
Page 4: Step 2: Arm Installation
STEP 2: Arm Installation Install wire clip (E) and swivel arm (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (K). Attached the wire clips (G) to the swivel arm (B). Install the two long screws(J) into the swivel arm as shown on the above diagram. - Page 5 STEP 3: Attach Monitor OPTION A: Flat Back Monitor For flat back monitor, secure VESA plate (A) to monitor using screws (M-A or M-C) and washers (M-E). CAUTION:To select the correct bolts(M-A or M-C) for your monitor, you can try to screw it on your monitor by hand.
- Page 6 STEP 4: Hang Monitor Slide the monitor onto the head of swivel arm (B). Install the plastic cover (H) and security bolt (I). Tighten the bolt with the supplied 4mm Allen key (J). Make sure the security bolt (I) is installed before you rotate the monitor.
-
Page 7: Step 5: Tilt Adjustment
STEP 5: Tilt Adjustment Tighten the bolt with the supplied 6mm Allen key (K) to x the tilt angle. Refer to below illustrations to adjust tilting angle of your monitor. Tilts down Note: 1. Loosen the tilting bolt. 2. Adjust monitor to your desired tilting angle. -
Page 8: Step 6: Cable Management
STEP 6: Cable Management Manage cables and store Allen keys (J,K) in wire clip (E) for future use. - Page 9 Adjust as Desired Adjust monitor position and rotation. For minor height adjustment, turn the plastic cover (H) with the supplied 6mm Allen Key (K) to raise or lower the monitor. Ignore this step if the two monitors are level. +90° 360°...
-
Page 10: Product Dimensions
Product Dimensions ±90° -45° ±90° ±90° 2.9” 3.9“ 4.48“ ±180°... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
