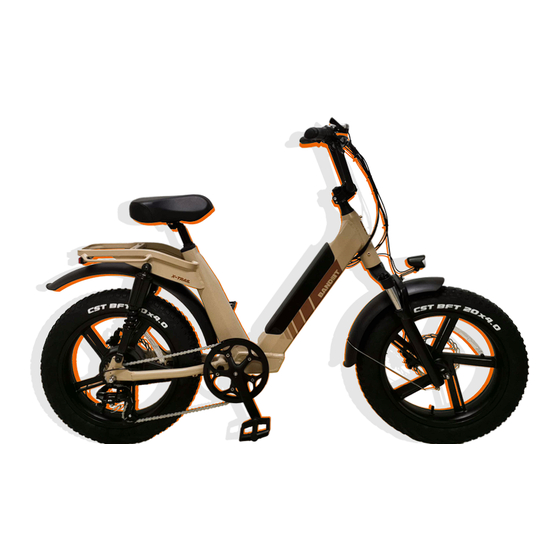

Bandit X-TRAIL LITE Owner's Manual
  1. Manuals
  2. Brands
  3. Bandit Manuals
  4. Bicycle
  5. X-TRAIL LITE
  6. Owner's manual

Bandit X-TRAIL LITE Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

S c a n m e
V i d e o t u t o r i a l
O w n e r
s m a n u a l
'

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-TRAIL LITE and is the answer not in the manual?

Questions and answers

Summary of Contents for Bandit X-TRAIL LITE

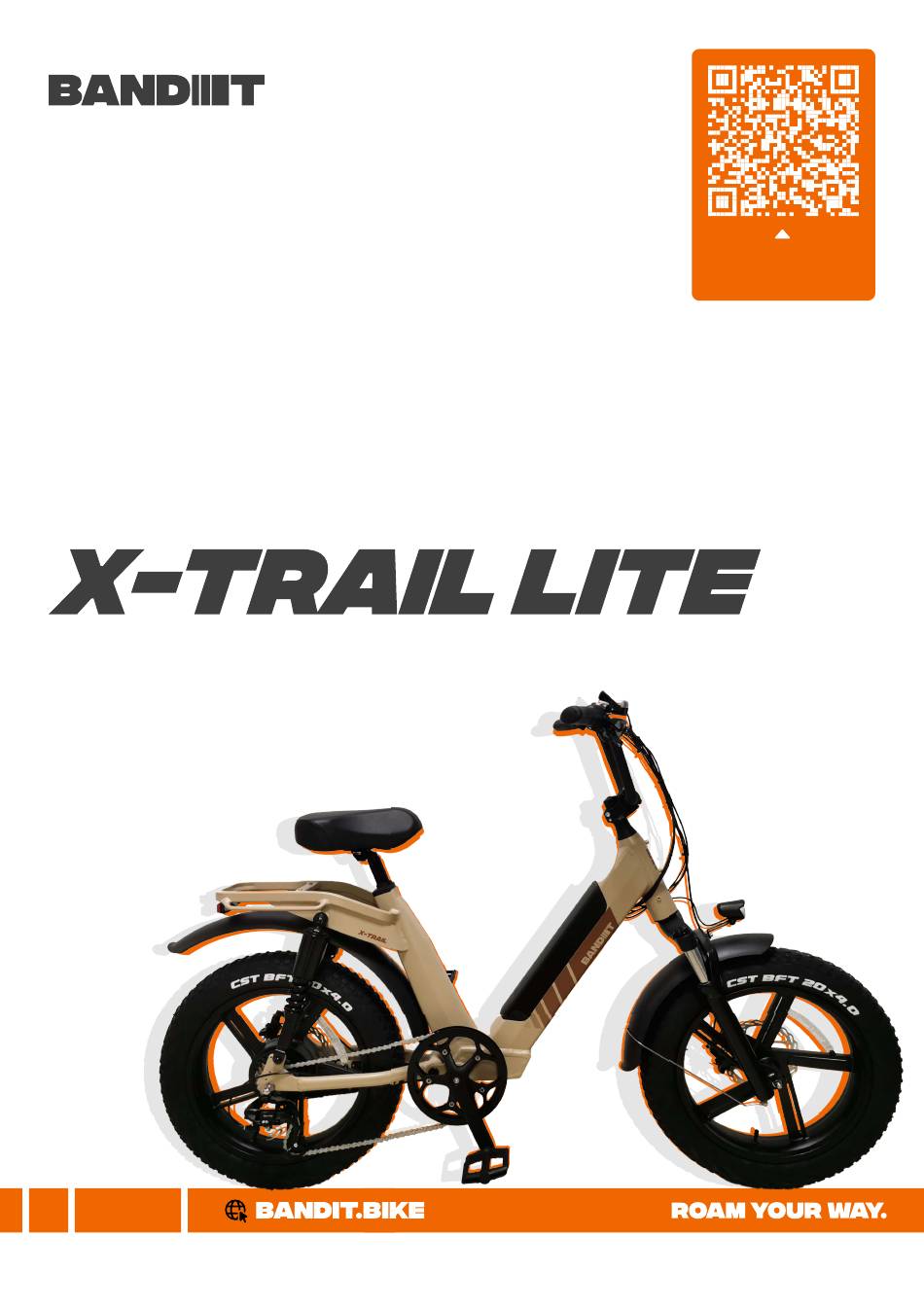

  • Page 1 S c a n m e V i d e o t u t o r i a l O w n e r s m a n u a l ’...

  • Page 2: Table Of Contents

    2d Assemble Fender and Headlight 2e Mounting Pedals 3 Battery & Monitor Instructions 3a Charging Your Battery 3b Using Your Bandit E-Bike Monitor 3c Bandit Smart Color LCD Display 3d Menu Screen Elements 4 Safety Instructions 4a Riding Your E-Bike Safely and Responsibly...

  • Page 3: Product Overview

    2. Battery and Charging Cable 3. Assembly Tools 1b Product Overview Display: Each Bandit E-Bike comes equipped with our re-designed smart color LCD displays for easier viewing during your ride. Please familiarise yourself with it before beginning to ride your Bandit E-Bike.

  • Page 4: Assemble & Setup

    © Bandit Technologies Inc. Seat: Before beginning to ride your Bandit E-Bike, be sure to adjust your seat so that the height and direction are optimal. LED Headlight: The LED Headlight is best used for nighttime riding. The light can be switched on and off via the monitor by holding the “+” button.

  • Page 5: Assemble Fender And Headlight

    © Bandit Technologies Inc. 4. Ensure the seat is securely held in place to complete seat installation. 2d Assemble Fender and Headlight 1. Remove the front and rear fenders. 2. Loosen the screw located at the top by twisting it counterclockwise.

  • Page 6: Using Your Bandit E-Bike Monitor

    © Bandit Technologies Inc. 3b Using Your Bandit E-Bike Monitor 1. Power on/off: Hold the power button for 2 seconds to power up the bike. Hold it for 3 seconds to power off. Tap the power button to switch drive modes between “Front”, “Rear”, “Auto”, and “Max”. (This feature is only available on Dual Wheel Drive models) 2.

  • Page 7: Bandit Smart Color Lcd Display

    © Bandit Technologies Inc. 3C Bandit Smart color LCD Display 1. Total remaining mileage: Estimated remaining mileage based on current battery life. The same unit of measure that the user selects will be used. 2. Battery display: Accurately displays percentage remaining battery.

  • Page 8: Menu Screen Elements

    © Bandit Technologies Inc. 3d Menu Screen Elements Clear Data: Clear riding data for your last trip here. Units: You can adjust the unit of measure for speed here. The default measure is in mph. Page | 6...
  • Page 9 © Bandit Technologies Inc. Riding Mode: You can switch to your preferred Riding Mode here (Torque, Speed). The default Riding Mode is ‘Torque’. Brightness: Adjust your display’s brightness level here. Brightness levels range from 1-5. Page | 7...
  • Page 10 © Bandit Technologies Inc. Passcode: Set your passcode here. By default, the passcode is 0000. You can also bind your NFC card with a passcode. Connect: You can connect your monitor to an NFC card or to a mobile device via bluetooth here.
  • Page 11 © Bandit Technologies Inc. Connect With Bluetooth: Connect your Bandit E-Bike with your smartphone to optimise your ride experience using the Bandit App. Using your monitor, search for your smartphone. Once it appears, select it to begin the pairing process.
  • Page 12 Bandit App to customise your E-Bike further. Connect with NFC Card: Connect your Bandit E-Bike with an NFC card to unlock your E-Bike more easily. You can have up to 5 NFC cards. Press ‘Bind’...
  • Page 13 © Bandit Technologies Inc. Place your NFC Card on the monitor to begin the pairing process. A confirmation message will appear when the pairing process has successfully completed. Page | 11...

  • Page 14: Safety Instructions

    4 Safety Instructions 4a Riding Your E-Bike Safel y and responsibl y 1. Do not violate traffic laws or ride your Bandit E-Bike carelessly. Proceed with caution, maintain a safe speed and distance from other vehicles, people, and objects, and avoid riding on slippery or bumpy surfaces.

  • Page 15: Charging Your Battery In A Safe Way

    E-Bike in a dry, cool, and confined environment. 5 Precautions We know you are excited to start riding your Bandit E-Bike but please: 1. Charge and Re-insert the battery before riding. 2. Make sure the pedals are screwed on tightly.

  • Page 16: After Sales Policy 6A Warranty

    © Bandit Technologies Inc. 6 After Sales Policy 6a Warranty 1. Users should operate their E-Bike in accordance with the product manual. In case of product faults, the company must carry out repairs and maintenance. 2. The company is responsible for the after-sales faults and will perform the needed repairs and maintenance for a fee.
  • Page 17 B a n d i t t e c h n o l o g i e s i n c C O N T I N E N T A L D R I V E S U I T E 2 0 0 4 0 1 ，...
