In-Dash 6.5"Multimedia & Navigation System

ZX-N3000H User Manual

Table of Contents

Need help?

Do you have a question about the ZX-N3000H and is the answer not in the manual?

Questions and answers

Summary of Contents for OZNAV ZX-N3000H

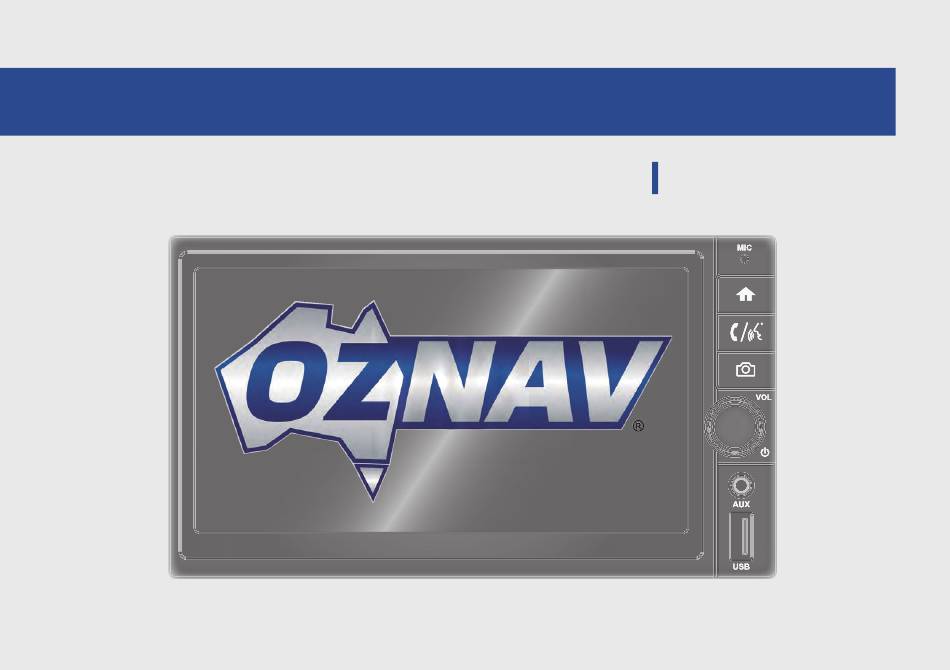

Page 1 In-Dash 6.5"Multimedia & Navigation System ZX-N3000H User Manual...
Page 3 Thank you for purchasing this Audio/Video and Navigation System. This user's manual explains how to use the OzNav Audio/ Video and Navigation System. Before using the product, read the contents of this user's manual carefully and use this product safely.
Page 4 Precautions for safe usage WARNING Driving while distracted can result in a loss of vehicle control • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and that may lead to an accident, severe personal injury, and death.
Page 5 • Information and tips that make using the product more For additional information and to obtain related materials including without limitation, the previous referred to licenses convenient. and software, please contact us at http://www.oznav.com.au Note • Information on specific features that facilitate proper product use and understanding of functions.
Page 6: Table Of Contents
Table of Contents 1. Safety information ▪ Using DAB screen ........ 11 ▪ Setting the Bluetooth ......21 ▪ Using DAB Category/Station list A/V IN ..........21 Warning ..........2 screen ..........11 ▪ Connecting the External A/V devices ..21 ▪...
Page 7 ▪ Can not hear the voice guide ....28 ▪ Accessing Apple CarPlay ..... 36 System Settings........ 46 ▪ Can not see the map ......28 ▪ Returning to the Apple CarPlay home ▪ Checking the System information and Update/Initialize ........46 ▪...
Page 8: Safety Information
Safety information Warning • Even when receiving route guidance from the Navigation • Do not stop or park in parking-restricted areas to operate the System, please abide by traffic and road regulations in force. product. Such actions could lead to traffic accidents. •...
Page 9: Caution
Caution • When cleaning the device, turn off the device and use a dry, Pay attention to traffic conditions while driving. • In some instances, navigation may provide guidance through smooth cloth. Never use tough materials, chemical cloths or solvents restricted areas.
Page 10: Getting Started
Getting started Overview Key Product Features ■ Control unit buttons and functions This device is a Multimedia System equipped with a multi-functional player that supports RADIO (FM1/2, AM), DAB+, USB, iPod, AUX, ➊ A/V IN, and Bluetooth Audio features. The WIDE VGA LCD MODE ➋...
Page 11: Steering Wheel Remote Control
■ Steering wheel remote control ■ IR remote control (if equipped) Starting the System for the First Time This system can be operated by the signal This system can be operated by the signal input of the SWC key installed in the input of the IR remote control installed in the ■...
Page 12: Adjust The Volume
■ Muting the sound quickly To return using the system's functions, press (Power) button on the system. Press (Power) button on the system or the MUTE button on the steering wheel to Note activate the mute function. • This system also turns on automatically when a device is connected to the USB or AUX port.
Page 13: Using The Multi View Camera
■ Using the Multi View Camera ■ Using the Rear View Camera Caution When the vehicle speed is less than 30 km/ When power is turned on and the Reverse • The Rear View Camera's purpose is to gear is selected, the Rear View Camera or h, press (Camera) button on the system prevent accidents or injuries.
Page 14: On-Screen Touch Controls
On-Screen Touch Controls Drag or touch the slider along the play bar Note in the music screens to jump to the point • Moving the list when there are many items Learn how to touch the screen to operate that you want to play from. However, the the system.
Page 15: Using The Home Screen
Using the Home screen ■ Controls Menu configuration for the Home screen To open Home screen, tap (Home) button on the system. The following screen will be displayed. Select the desired menu from this screen. ➊ ➊ Title bar: Shows current menu title Menu: Opens each Function mode screen ➋...
Page 16: Radio/Dab
Radio/DAB Radio ■ Using Radio screen ■ Using DAB screen You can access the radio player by You can access the DAB (Digital Audio DAB+ Radio on the Home Broadcasting) player by selecting selecting the on the Home screen. screen. •...
Page 17: Using Dab Screen
■ Using DAB Category/Station list • : indicates currently playing station. screen ➌ List control : • Update List: Updates list (tap). Tap DAB List button on DAB playing screen. Shows DAB Category/Station list • Upper List: Moves upper list screen (tap). (back) : Returns to previous screen (tap).
Page 18: Media Player
Media player stored on the USB. Any differences in the USB Media when other cables are used. • The device will not support files locked by time required are not indicative of ■ Before Playing a USB Media DRM (Digital Rights Management). malfunction.
Page 19: Using Media Screen
■ Using Media screen USB music music player feature opens. Plays music ■ Supported Music Files from an iPod connected to this system. You can access the Media play menu by • AUX: Plays an external device's Specifications Media on the Home screen. selecting output Audio signal on this system.
Page 20: Using Usb Music Player Screen
guaranteed. When using files without fixed : Repeats the current file ➌ List control : bit rates, some features (Fast-Forward/ • Current List: Returns to current playlist. : Repeats all files in the current folder Rewind features) may not properly operate. •...
Page 21: Usb Video
USB Video : Repeats the current file downwards). : Repeats all files in the current folder • : Indicates currently playing file. ■ Using USB Video player screen • ➌ : Activates/deactivates subtitles (tap). List control s Connect the USB device to the USB port. •...
Page 22: Usb Image
■ Using USB Image list screen USB Image direction (tap). • form USB Image player screen, and : Sets the zoom ratio (tap). ■ Using USB Image player screen • : Opens Image File List screen (tap)• select the desired option as follows; Connect the USB device to the USB port.
Page 23: Ipod
iPod applications specifically designed for Apple this system is limited if an iPod/iPhone is products. If the Apple device does not have connected to the system via cable and ■ Using iPod device Bluetooth simultaneously. To listen to iPod Podcast and Audiobook lists, the playlist audio, either use the iPod menu if connected may not be displayed and played in this •...
Page 24 • Disconnect the AUX cable from the iPod/ Bluetooth function if the device is connected is complete. To learn more, refer to your iPhone first, then connect to this system via through both the USB port and via Bluetooth. iPod manual. Disconnect the USB connection then use USB.
Page 25: Using Ipod Player Screen
■ Using iPod player screen • : Changes Shuffle mode (tap) as ➌ List control : • Up Folder: Moves to parent folder (tap). below; Connect the iPod to the USB port. iPod : Plays all files in random order •...
Page 26: Aux
Bluetooth Audio ►/II : Pauses/resumes playback (tap to ➊ ■ Connecting External devices toggle) This section explains how to use the Bluetooth I ◄ ◄ / ► ► I: Skips to previous/next file (tap) ; ➋ audio player. Connect an external Audio device cable to rewinds/fast-forwards a track (tap and This unit supports the A2DP (Advanced Audio the AUX input to automatically switch to...
Page 27: Setting The Bluetooth
■ Setting the Bluetooth A/V IN In Bluetooth Audio player screen, select ■ Connecting External A/V devices Bluetooth Setup. Connect an external A/V device cable to the AUX input to automatically switch to A/V IN mode. Unplug the cable to automatically switch back to the previous mode.
Page 28: Phone Connectivity
Phone Connectivity Before Using Bluetooth Hands- may lead to negligent driving practices Turn the Bluetooth function within the and may cause accidents. Do not operate free mobile phone OFF/ON and try again. the device excessively while driving. Turn the mobile phone power OFF > ■...
Page 29: Bluetooth Connection
Bluetooth Connection To discover and connect to a Bluetooth To add and connect to a Bluetooth device: device: ■ Pairing a New Device Tap Discoverable. Select Home > Settings > Connectivity > Bluetooth Connection Before you can use the Bluetooth feature, Add Device.
Page 30: Connecting Bluetooth Devices
■ Connecting Bluetooth Devices ■ Deleting Bluetooth Devices Bluetooth Phone Delete Bluetooth devices that you have Connect the Bluetooth devices that you add. ■ Make a call by using dialling Connecting Devices by Selecting added. Note that deleting a Bluetooth Phone/Call device will delete all Call History and Press /...
Page 31: Accepting/Rejecting A Incoming Call
■ Using menus on the call • Note : Signal strength • : Remaining battery power When making a call, you can use the • If the caller's number is listed in Contacts, : Tire Pressure Monitoring System following menu items. the caller's name will be displayed.
Page 32: Using The Contacts
■ Using the Contacts • Search: Opens Search screen (tap) > the Bluetooth device, the download will fail. • Some devices require device authentication searches contacts by entering keyword. Select Contacts from the Phone screen. for downloading call history. If download ➌...
Page 33 Note • Up to 5,000 phone numbers can be downloaded from a single, paired Bluetooth device. • You cannot edit and delete downloaded phone numbers from your car. • Contacts can be viewed only when the Bluetooth device is connected. •...
Page 34: Navigation
Navigation ■ Acquiring satellite signals ■ Can not hear the voice guide Getting started with Navigation Before this system can find your current The volume is not set correctly, or it is ■ What is GPS? location and navigate a route, you must do turned off.
Page 35: Map Matching
Using the navigation fast. •When driving through the mountain or To enter the Navigation mode, press where the road is too curvy. Home button, then tap Navigation. •When the starting, passing and arriving locations are too close within 1 km. •When you have set the starting, passing or arriving location more than 1 km away from the road.
Page 36: Tire Pressure Monitoring System
Tire Pressure Monitoring System Using the TPMS Setting the TPMS X: Close screen (tap) • ◄/►: Move to previous/next page. Tap TPMS Settings on the TPMS screen. This section explains how to use the Tire • Pressure: Shows each tire's pressure Pressure Monitoring System for safety.
Page 37: Tmps Settings > Add New Sensor
■ TPMS Settings > Unit settings : Returns to previous screen (tap). ➋ ➋ ■ TPMS Settings > Add New Sensor Push Button on Relay for add/replace new sensor, and you can add new sensor to selected Relay. ➊ ➋ ➊...
Page 38: Phone Projection
Phone Projection What is Phone Projection? USB cable on the device in a short period of screen due to app errors when navigating time, your phone may malfunction. This can between screens in Apple CarPlay. You can securely access your smartphone - Audio volume may not be adjusted also cause a device failure.
Page 39: Controlling The Phone Projection Using By
■ Controlling the Phone Projection Note com/androidauto • The screens and features displayed on this using by buttons on this system • Before connecting your mobile phone, check system are the same as what Google whether Phone projection is set to ON n the When pressed and held (Voice) button originally provide.
Page 40: Phone Projection Settings
Phone Projection settings It is recommended you use a device Note installed with the latest OS version. Some • The user agreement screens may differ Settings menu screen, select On the multimedia system features may not be Connectivity. depending on Android phones. available while Phone projection is active.
Page 41: Phone
Refer to the Android Auto website for a list of Missed : Sees your missed calls and ➍ compatible apps. make a call (tap) ➏ ■ Music ■ Phone Playing music Making a call using Google voice recognition From the Android Auto screen, tap From the Android Auto screen, tap (Music).
Page 42: Navigation
■ Navigation Apple CarPlay for a desired location. ■ About Apple CarPlay Viewing your current location From the Android Auto screen, tap Apple CarPlay integrates your iPhone’s apps (Navigation). with your car’s media system, allowing you to Your current location will be indicated on the access the applications and your device more map.
Page 43: Returning To The Apple Carplay Home
■ Apple CarPlay home screen Apple CarPlay may change in the future. • Apple CarPlay is optimized for iOS 8.4. The following are the main applications Application features may vary depending on available on the Apple CarPlay home your iOS version. screen.
Page 44: Phone
■ Phone Making a call using Siri From the Apple CarPlay home screen, tap Phone. • You can also press (Phone/Voice) button on this system to open the Phone application. Say the name of your desired contact. Tap Accept to accept the call or tap Select the desired calling option.
Page 45: Now Playing
■ Now Playing ■ Maps to search for the desired destination or tap to search for a favorite location. Viewing your current location From the Apple CarPlay home screen, tap Now Playing. From the Apple CarPlay home screen, tap Maps. This feature plays music from third-party Your current location will be indicated on the applications or music files stored in your...
Page 46: Podcasts
■ Podcasts Hearing a text message From the Apple CarPlay home screen, tap Playing a podcast Messages > Show Messages. From the Apple CarPlay home screen, tap Podcasts. Tap My Podcasts and select a desired podcast to play. ➊ ➋ Select a message.
Page 47: Settings
Settings Sound settings Settings menu screen ➋ Adjusts the sound effects for the whole ➊ This section explains how to customize the system. settings for this system. Sound on the Settings menu Settings on the Home menu screen. screen. ➌ ➊...
Page 48: Setting The Equalizer
• The adjustment value is shown for about 2 : Returns to previous screen (tap). ➋ ➋ seconds at that position. Display Settings : Returns to previous screen (tap). ➋ This section explains how to customize the ■ Setting the Equalizer display settings.
Page 49: Setting The Brightness
■ Setting the Brightness Connectivity Settings Power off Display controls: Sets type of ➊ the screen (tab) when power is off state. Tap Brightness menu tab on the Display This section explains how to customize the • If you select Blank, the screen will turn Bluetooth settings.
Page 50: Setting The Bluetooth Connection
■ Setting the Bluetooth Yes in order . Bluetooth device" on page 23. Connection • Add Device: opens Search on Device ■ Setting the Bluetooth screen (tap) to register a new Bluetooth Tap Bluetooth Connection on the device. Refer to "To add and connect to Tap Bluetooth Settings menu tab on the Connectivity settings menu screen.
Page 51: Setting The Android Auto
connected. • If you fail to connect the selected device, the previously connected device is automatically connected. If this also fails, it tries to connect all paired devices Delete Phonebook >: Delete the ➎ sequentially. Phonebook of the connected phone (tap > •...
Page 52: System Settings
System Settings settings menu screen. ➍ This chapter explains how to customize this system settings and keep this system up to date. ➊ System on the Settings menu • If any device is connected to the USB screen. port, you cannot set Apple CarPlay ➌...
Page 53: Setting The Current Time
■ Setting the Current Date ■ Setting the Language settings (tap > select Yes or No). You can configure the displayed system Configure the settings for date. Date settings do not automatically change language. when crossing into different time zones. The Tap Language menu tab on the System time must be changed manually on this settings menu screen.
Page 54: Setting Others
■ Setting Others Tap Other Settings menu tab on the System settings menu screen. Tap desired each submenu to open the control screen. ➎ ➊ ➋ • Do not remove the USB device or turn off ➌ the ignition until the update is complete ➍...
Page 55: Product Specifications
Appendix Product Specifications Bit-rate and OGG Q1 ~ Q10, up to 48 kHz sampling frequency ■ General FLAC 8/16/24-bit, up to 48 kHz WMA Standard (0x161): up to L3 Profile, up to Power Source Standard: 12 V or 24 V (Negative Grounding) 385 kbps, up to 48 kHz Operation: 10.5 ~ 32 V (Negative Grounding) Professional (0x162): up to M0b, up to 192...
Page 56: Bluetooth Wireless Technology
• If your car’s ignition does not have an ACC position, connect the conformity is available on OzNav web site as follows; http://www. ignition wires to a power source that can be turned on and off with the oznav.com.au...
Page 57: Supplied Accessories For Installation
■ Installation procedure ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be To prevent a short circuit, remove the key from the ignition and drained.
Page 58: Connecting Wires To Terminals
Screw ■ Connecting wires to terminals Antenna crew Camera 24 pin ⓬ ❶ ⓭ DAB ANT GPS ANT Camera 24 FM ANT DAB ANT GPS ANT White: D-ACC <+ Supply wire Front Camera / Max. 100 mA> ❶ Camera 24 FM ANT D-ACC Yellow RCA Jack Female: D-Video (CVBS) IN <Front Camera>...
Page 59 ISO 42 pin ❾ ❶ ⓬ ❶ ❿ ⓲ ⓭ ISO 42 ISO 42 Section A Section B TPMS +5V ❶ ⓲ AUTO ANT ON TPMS GND ❷ ⓱ - ILL SWR DATA A ❹ AMP CONTROL ⓰ SWR DATA B ❺...
Page 60 ISO 42 pin Section A ISO 42 pin Section B Orange: Auto ANT ON <Max. 300 mA> Pink: TPMS +5 V ⓲ ❶ Light-Green: - Illumination Sky-Blue: TPMS GND ⓱ ❷ Blue: AMP Control <Max. 300 mA> ⓰ ❸ Not Connect Yellow RCA Jack Female: Rear Seat Video Out / with GND shield Violet: Steering Wheel Rrmote Data A ⓯/⓮...
Page 61: Common Issues
• If there is no disc or the corresponding If the problems persist, contact your OzNav dealer. device is not connected, the mode operated prior to the most recent mode will operate • If the previous mode still cannot be properly...
Page 62: Troubleshooting
Troubleshooting Problem Possible Cause Solution • A separately purchased • Directly connect the USB does not Problem Possible Cause Solution work USB HUB is being used USB memory with the The fuse is disconnected • Replace with a suitable The power does multimedia terminal on not turn on fuse...
Page 63 Problem Possible Cause Solution • Your iPhone does not • Check the supported iOS Apple CarPlay does not start. support Apple CarPlay. version. (See page 24) • There is a connection • Disconnect the iPhone, This system turn it off, and then turn it freezes while problem between the using Apple...
Page 64: Limited Warranty
Limited Warranty ORIGINAL AUDIO/VIDEO NAVIGATION INFOTAINMENT SYSTEM SUPPLIED BY VEHICLE DEALER Product : Product No. : ■ WHAT THIS WARRANTY ■ WHAT THIS WARRANTY DOES ■ HOW TO MAKE A WARRANTY COVERS NOT COVER CLAIM Vehicle Dealer Shop ("Dealer") warrants The Limited Warranty does not apply to In order to make a claim of a Defect, you must contact DEALER.
Page 65 ■ DEALER LIMITED WARRANTY ■ LIMITATION OF LIABILITY and related content through the YOUR LEGAL RIGHTS Hardware or otherwise arising out of the Neither DEALER nor its suppliers shall use of the Hardware. Also, there is no be liable to you or to any third party for Some countries may not allow the warranty or condition of quiet enjoyment, exclusion or limitation of damages.
Page 66 Memo...
Page 68 MANUAL/ZX-N3000H/AVN/100GB For replacements parts & compatible add-on accessories like TPMS, 3264-00195 please visit www.oznav.com.au.3264-00195 3264-00195...
