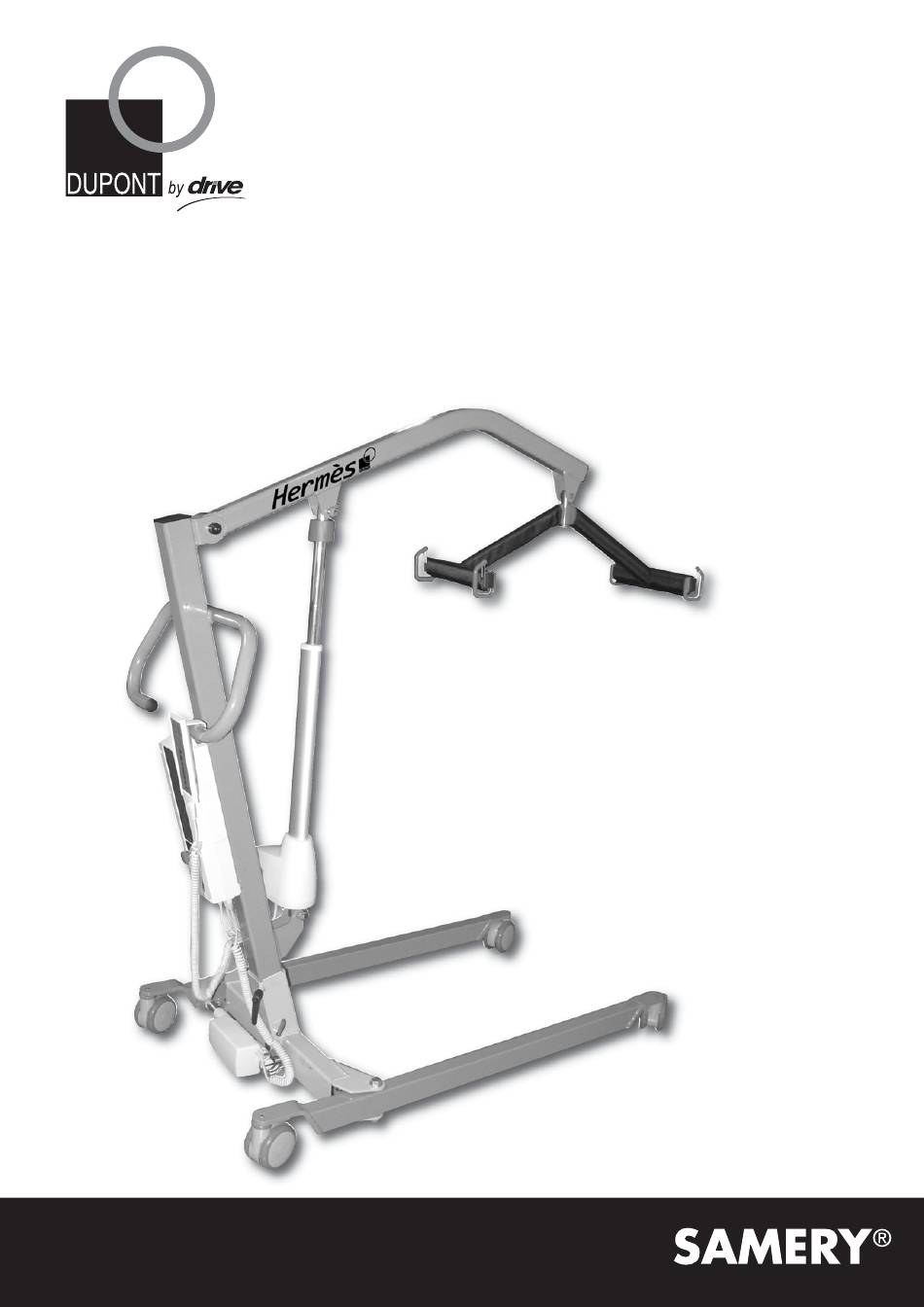

- Page 1 Hermès USER’S MANUAL Patient lift www.dupont-medical.com A DUPONT MEDICAL Trademark...
-
Page 2: Table Of Contents
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT Patient lift HERMES I - WARNINGS Distributor’s responsibility CONTENTS - The distributor must inform and show the user how to handle the patient lift stating the precautions, the use limitations, and I - WARNINGS.................2 the risks related to inappropriate use. -
Page 3: Intended Use
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT Operating conditions Serial number - Never use a defective patient lift. Label of identification: - Before any use, check the battery is charged and the security elements are in place and locked (axles and pins). - The patient lift should be used on a flat, stable floor and in a sufficiently clear place so that the manoeuvres are not disturbed. -
Page 4: Using Hermes Pl
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT IV - Using HERMES PL b) Lifting cylinder WARNING: HERMES PL should be exclusively used indoors on a flat and adhered floor; it should be handled by a competent caregiver Manual lowering ring trained for this kind of devices. -
Page 5: Optional Class 3 Medical Weighing System
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT Once these checks are performed, you can transfer the patient: For a 2-minute operation, a 18-minute resting period should be observed. Do not exceed 2 minutes operating in continuous. Any CAUTION: You should move the patient lift base duty cycle exceeding the above cycle can damage the lifting apart to the maximum before lifting or moving the assembly (cylinder/boxes). -
Page 6: Transferring A Patient Lying On The Floor
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT Particular points: 6.1) Checking the straps - When positioning the strap, check there is no fold at the leg (Before any use, and to be performed by a competent staff) level in order not to hurt the patient. Before any use, check the condition of the straps: no undone sewing, the upholstery and the straps should not be fringed, no CAUTION! WHEN LIFTING OR LOWERING A... -
Page 7: Preventive Maintenance
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT cord, remote control and cylinders; if a cable shows a slight The mechanical parts that have cracks, wear signs or geometrical burn, wear, or impact sign, or if the wires are visible, immediately defects should be replaced with original components provided stop using the patient lift, and have the cables replaced by the by Dupont Medical. -
Page 8: Warranty Conditions And Responsibilities
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT This symbol means the system on which it IX - Before contacting DUPONT MEDICAL affixed submitted directive Customer Service: 2002/96/EC relative to waste electric and electronic equipment (DEEE) and it was Calling the Customer Service can often be avoided! marketed after 13 August 2005. -
Page 9: X- Pl Specifications
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT X- PL specifications 10.1) Dimensions SPACED SIDE RAILS CLOSED SIDE RAILS KEY PATIENT LIFT DIMENSIONS (according to NF EN ISO 105351): c: span from the base, the legs are spaced by 700 mm. p: maximum inside width q: inside width with maximum span r: minimum inside width... -
Page 10: Detailed Specifications
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT 10.2)Detailed specifications XI - General terminology: - Lifting capacity: 250 kg HERMES PL identification - PL weight in working order 57 kg - Lifting time: + or - 45 s. (empty) 68 s. with full load 1 Boom - Patient lift weight: 56 kg... -
Page 11: Service Book
USER AND MAINTENANCE MANUAL FOR HERMES PATIENT LIFT XII - SERVICE BOOK HERMES Serial number: This document should be photocopied and delivered to the technician every time the patient lift is maintained. ……..……….. SERVICE In case of incident, the liability can only be determined if Facility: all the sheets of this book are completed. - Page 12 Hermès Distributor: DeVilbiss Healthcare Manufacturer: DUPONT MEDICAL GmbH • Kamenzer Straße 3 Chaussée du Ban la Dame - Parc d’activités Eiffel D-68309 Mannheim • Germany EnergieZAC du Ban la Dame - BP 19 - 54390 kontakt@devilbisshc.com FROUARD - FranceTél. +33 (0)3 83 495 495 www.drivedevilbiss-int.com Fax +33 (0)3 83 495 496 Tel: +49 (0) 621 17898-0...
