EFX FLAME 1X User Manual

FLAME 1X USER INSTRUCTIONS
Please check the fixtures appearance and report any damages to your retailer
immediately.
Set up instructions
1. The Flame 1X is a fire ball spray machine, place the fixture on flat ground
ensuring there is 8-meter distance between the machine and any objects,
height clearance should be at least 3 meters, the whole space around the
fixture should be have not any combustible objects.
2. After placing the machine on the ground, attach the power lead and DMX
cable to the machine ensuring the spurt mouth is facing upwards.
3. Use a compatible flame liquid with the fixture. Install the liquid cannister into
the machine using the door to access the flame liquid cannister holder.
Please speak with your retailer for suggested flame liquids compatible with
this fixture.
4. To operate the machine in DMX mode, press the power button up to DMX. If
you want to operate the fixture manually then press the power button down,
WARNING: activating the machine in manual mode can cause injury. It is
advisable to use DMX control.
DMX 512 mode

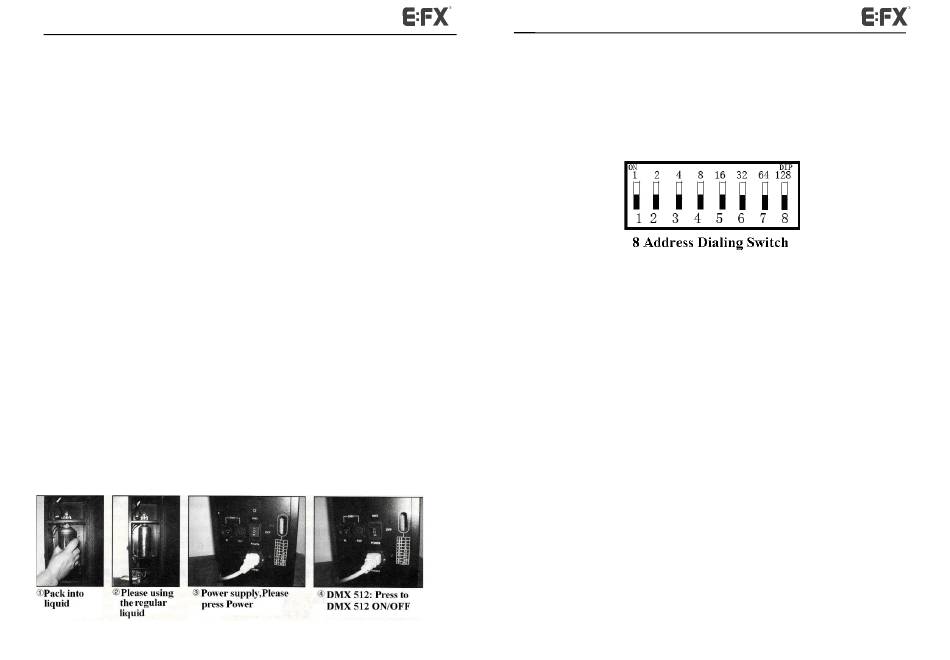

The address dialing switch is located on the rear of the fixture. Numbers 1
2 3 4 5 6 7 8 in the address dialing switch corresponding with 1 2 4 16
b32 64 128 in DMX 512 controller, use picture below for guidance:
To set the DMX address, toggle the switch up according to the DMX
address you wish to set on the fixture.
For example, to set the machine on DMX address 1 push switch No.1 up.
To set the machine to DMX address 7 push switch No.1, 2, 3 to up to
"ON", this will set the DMX address to "7".
After connecting the DMX 512 controller, push up channel 1 to activate a fire
ball action, push up channel 1 and 2 at the same time to create a flame rod
action. This product has automatic power-down function after 3 seconds of
fire time.
Manual mode
Press down the power button to 'manual', this will activate the flame, this
operation is dangerous and can cause injury. This type of spray fire, it can
not pass 5sec.)
