TEC1ACL Series Quick Start Keypad Programming and Installation Guide
Rev 01/21
This Quick Start Guide Applies to:
TEC1ACL 2L/4L Series
This example shows how to set a directory record (Code, Name, Phone #
and PIN for entrance 1 with 24/7 access) using the keypad. To set a PIN, the
ENABLE PINS parameter must be set to 1 (see step 2 below). For other
settings please refer to "TEC1ACL Series Menus"
1) ENTER PROGRAMMING MODE to access the CODES & NAMES menu:
• Press *0 together to display "Password".
• Enter 6‐digit password followed by * (factory default is 777777*)
This displays "MAIN MENU / SELECT 1‐8".
• Press 1 to display "CODES & NAMES, SELECT 1‐9"
2) Skip this step if you know PINs are enabled. Press 8 to display "ENABLE
PINS = X". If X is 1 press *; if X is 0 then press 1*.
3) Program a directory record to include a PIN:
• From Codes and Names, press 1 to select "Add New" to display "CODE ="
• Enter a code followed by * e.g. "100*". Display will now show "NAME ="
• Enter a name. For NAMES only, after each character, press # to move
cursor e.g. J O H N will spell "JOHN". To complete the name, press *.
# # # #
Display will now show "PHONE # ="
• Enter phone number e.g. 3055551212, then * to display "PIN ="
• Enter 4‐digit PIN e.g. 1234 then * to display "ENTRANCE = 0"
• To set entrance 1 Press 1* to display "TG GROUP = 0"
• To set Time Group 0 Press 0* (TG 0 is 24/7) to show "CODE =" for next
entry. If no other entries are needed, exit programming mode.
4) EXIT PROGRAMMING MODE:
Press *0 together ===> TEC1ACL welcome message will be displayed.
Additional Information:
When Programming with Selcom Software, choose firmware/model
selection as TEC1ACL 2.5 and up.
Rev A

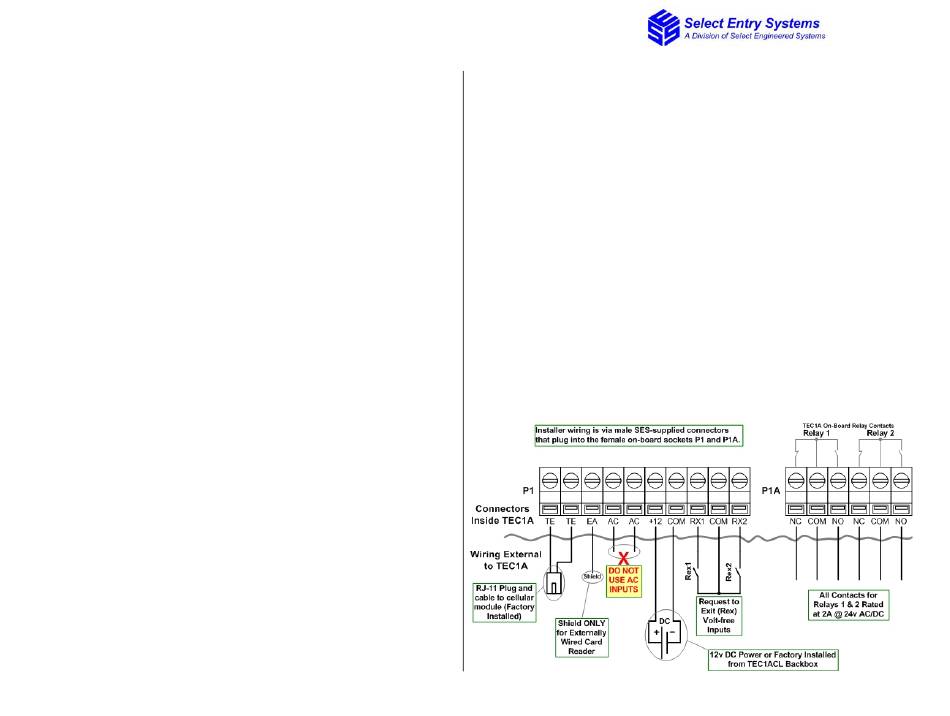

Quick Start Installation Guide (See TEC1ACL Installer Guide for Safety
Warnings)
● Power: DO NOT USE AC TRANSFORMER. A 12 VDC/2A power supply is
supplied and should be wired to DC input marked on the back box terminal
block. Internal power connection from the terminal block to P1 connector on
PCB is factory installed. If installer chooses, at his own risk, not to use the
power supply provided, warranty is voided.
● Ground: The TEC1ACL Ground Stud MUST be connected using a minimum
#16 ga. stranded wire connected to a good earth ground using e.g. a ground
rod or cold water pipe. The maximum ground wire length is 50 feet. If an
adequate earth ground is not provided, surge damage protection built into
TEC1ACL series units diminishes and voids the warranty.
● Telephone: RJ‐11 plug and cable for dial‐out phone from Cellular Interface
Module (Factory installed).Connect to TE‐TE on P1.
● Relays: Two (2) relays with both (N/O) and (N/C). Maximum rating each
contact 24 volts AC/DC at 2A. Connect using NC/COM/NO NC/COM/NO on P1A
● Rex (Request to Exit) Inputs: The RX1 and RX2 are VOLT‐FREE (dry) contacts.
Connect using RX1‐COM‐RX2 on P1.
