Delivery / dispense controller with pump start and valve control

Advertisement

Quick Links

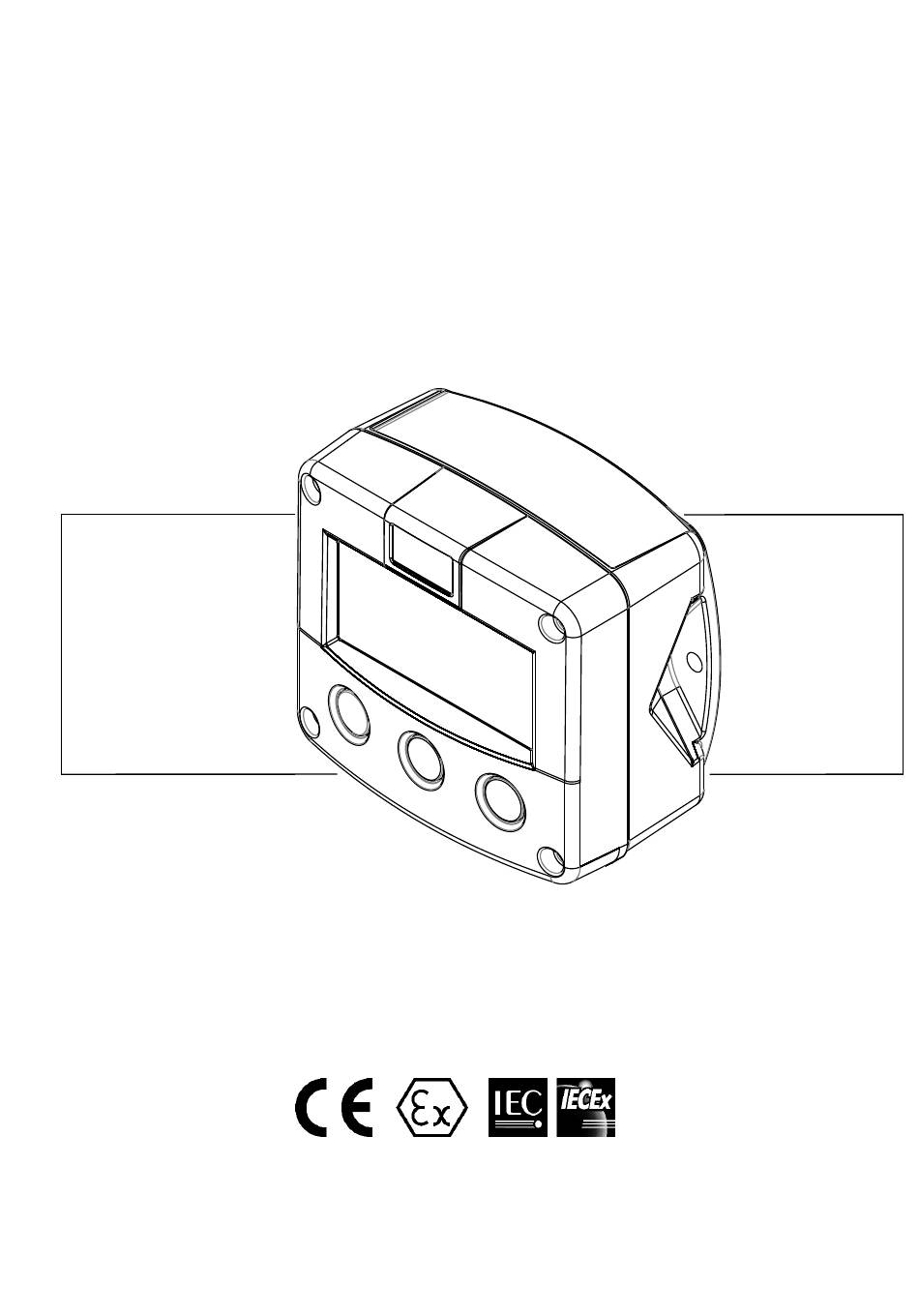

F133-P
DELIVERY / DISPENSE CONTROLLER
with pump start and valve control
Signal input flowmeter: pulse, Namur and coil.
Status inputs: start and stop.
Control outputs: two pump / valve control outputs.
Options: Intrinsically Safe, Modbus communication and backlight.
F-Series - Field mounted indicators for safe and hazardous areas.
More info: www.fluidwell.com/fseries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FLORABEST F Series

  • Page 1 F133-P DELIVERY / DISPENSE CONTROLLER with pump start and valve control Signal input flowmeter: pulse, Namur and coil. Status inputs: start and stop. Control outputs: two pump / valve control outputs. Options: Intrinsically Safe, Modbus communication and backlight. F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
  • Page 2 Page 2 FW_F133-P_M_v0601_01_EN...
  • Page 3: Safety Instructions

    Page 3 SAFETY INSTRUCTIONS  Any responsibility is lapsed if the instructions and procedures as described in this manual are not followed.  LIFE SUPPORT APPLICATIONS: The F133-P is not designed for use in life support appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury.
  • Page 4: About The Operation Manual

    Page 4 ABOUT THE OPERATION MANUAL This operation manual is divided into two main sections:  The daily use of the unit is described in chapter 2 "Operation". These instructions are meant for users.  The following chapters and appendices are exclusively meant for electricians/technicians. These provide a detailed description of all software settings and hardware installation guidance.
  • Page 5: Table Of Contents

    Page 5 CONTENTS MANUAL Safety instructions ..........................3 Disposal Safety rules and precautionary measures..................... 3 About the operation manual ........................4 Contents manual ........................... 5 Introduction ........................6 Operational ........................7 Configuration........................11 Installation ........................19 Intrinsically safe applications ..................31 Maintenance ........................
  • Page 6: Introduction

    Page 6 INTRODUCTION 1.1. SYSTEM DESCRIPTION OF THE F133-P Functions and features The delivery controller / dispenser model F133-P is a microprocessor driven instrument designed for the delivery of unknown quantities as well as displaying the flowrate, delivered total and delivered accumulated total.
  • Page 7: Operational

    Page 7 Configuration of the unit The F133-P was designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F133-P according to your specific requirements. SETUP includes several important features, such as K-factors, measurement units, signal selection etc.
  • Page 8 Page 8 2.3. OPERATOR INFORMATION AND FUNCTIONS In general, the F133-P will always function at Operator level. The information displayed is dependent upon the SETUP-settings. All pulses generated by the connected flowmeter are measured by the F133-P in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.
  • Page 9 Page 9  Display Total and accumulated Total Press STOP to display the Total and Accumulated Total. These totalizers do count the flowmeters signal continuously, even when no process is running. The value for Total can be initialized. To do so, be sure Total is displayed. First press PROG followed by STOP.
  • Page 10 Page 10 2.4. DISPENSER FUNCTIONAL DIAGRAM The function of the F133-P depends on the different settings in the setup menu. The example is given for a typical configuration. START THE DELIVERY PAUSE / STOP THE DELIVERY (pause is enabled) STOP THE DELIVERY (overrun timer is set) LEGEND Idle, waits for new delivery.
  • Page 11: Configuration

    Page 11 CONFIGURATION 3.1. INTRODUCTION This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility.
  • Page 12 Page 12 the SETUP-level Selection of function-group and function enter Press the PROG/ENTER Select the function group Select the function with the key for 7 seconds. with the STOP/ key. START/ key. To change or select a value  Momentarily, press the PROG/ENTER key. The program indicator starts to flash.
  • Page 13 Page 13 3.2.3. OVERVIEW FUNCTIONS SETUP LEVEL SETUP FUNCTIONS AND VARIABLES TOTAL UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit DECIMALS 0000000; 111111.1; 22222.22; 3333.333 K-FACTOR: 0.000010 - 9999999 DECIMALS K-FACTOR 0 - 6 BATCH MAX 0 - 9999999...
  • Page 14 Page 14 3.2.4. EXPLANATION OF SETUP-FUNCTIONS 1 - TOTAL UNIT This setting gives the measurement unit for the indication of the batch total and the accumulated batch total. The following units can be selected: L - m3 - kg - lb. - GAL - USGAL - bbl – no unit. When you change the measurement unit, you must recalculate and enter the K-factor for the (accumulated) total.
  • Page 15 Page 15 2 - FLOWRATE The settings for preset and flowrate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flowrate. The display update time for flowrate is one second or more. UNIT SETUP - 21 determines the measurement unit for flowrate.
  • Page 16 Page 16 3 - DISPLAY LIGHT The brightness of the backlight can be set in following range: 0% (OFF) – 20% - 40% - 60% - 80% - 100% (FULL BRIGHTNESS). This function determines the behavior of the backlight (BL) during an alarm. BL ALARM The following can be selected: OFF:...
  • Page 17 Page 17 820 Ohm External power NAMUR Namur input 4 kHz. pull-down required 20mV Sensitive for COIL HI High sensitive coil input p.t.p. disturbance! 90mV COIL LO Low sensitive coil input Normal sensitivity p.t.p. Active pulse input External power ACT_8.2 10KHz.
  • Page 18 Page 18 must be interrupted for at least 100msec. in-between deliveries STATUS INPUT 2 Following functions can be selected: OFF: status input is disabled. PAUSE-function: do generate a short pulse to pause the delivery. STOP-function: do generate a short pulse to stop the delivery. BOTH-function: do generate a short pulse to pause the delivery.
  • Page 19: Installation

    Page 19 INSTALLATION 4.1. GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ...
  • Page 20 Page 20 4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") 12mm 12mm 30mm 30mm 24mm 24mm M20 x 1,5 6 x M12 36mm 36mm 25mm 25mm 1/2"NPT 1/2"NPT 1/2"NPT 30mm 30mm 0.12" 0.12" M16 x 1,5 M16 x 1,5 3x 1/2"NPT M20 x 1,5...
  • Page 21 Page 21 GRP enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
  • Page 22 Page 22 4.4. INSTALLING THE HARDWARE 4.4.1. INTRODUCTION  Electro static discharge does inflict irreparable damage to electronics! Before installing or opening the unit, the installer has to discharge himself by touching a well-grounded object.  This unit must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility).
  • Page 23 Page 23 4.4.2. VOLTAGE SELECTION SENSOR SUPPLY For Intrinsically Safe applications: read chapter 5. Type PB / PC / PX (AP) - battery powered and output loop-powered applications: Terminal 11 provides a limited supply voltage of 3 V DC (coil signals 1.2V) for the signal output of the flowmeter.
  • Page 24 Page 24 4.4.3. TERMINAL CONNECTORS For Intrinsically Safe applications: read chapter 5. The following terminal connectors are available: VALVE PUMP POWER SUPPLY: OUTPUT R 2 OUTPUT R 1 SENSOR SIGNAL STATUS STATUS TYPE TYPE TYPE POWER SUPPLY PULSE INPUT INPUT INPUT PD / PF / PM OA / OR / OT...
  • Page 25 Page 25 Terminal 03-04; valve control output R2: This output is available to control the dispensing valve. This output is switched according to the settings 51-56. Terminal 05-06; pump control output R1: This output is available to control the dispensing pump. This output is switched during the whole process.
  • Page 26 Page 26 Type OT: A passive transistor output is available with this option. Max. driving capacity 300mA@50V DC. Terminal 07-08; basic POWER SUPPLY - type PX - output loop powered Connect an external power supply of 8-30VDC to these terminals; the "-" to terminal 7 and the "+" to terminal 8.
  • Page 27 Page 27 Pulse-signal NPN / NPN-LP: The F133-P is suitable for use with flowmeters which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency - read par. 3.2.3. Pulse-signal PNP / PNP-LP: The F133-P is suitable for use with flowmeters which have a PNP output signal.
  • Page 28 Page 28 Active signals 8.2V - 12V and 24V: If a sensor gives an active signal, please read par. 3.2.3. The detection levels are 50% of the selected supply voltage; approximately 4V (ACT_8.2) or 4V (ACT_12) or 12V (ACT_24). Active signal selection may well be desired in the case of power supply type PD, PF, PM being supplied for sensor supply.
  • Page 29 Page 29 Terminal 12-13; status input 1: With this function, the batch controller can be started and/or stopped. The function of the input is described in paragraph 3.2.3.7. "STATUS". The input must be switched with a potential free contact to the GND-terminal number 9 for at least 0.3 seconds. Terminal 15-16;...
  • Page 30 Page 30 Terminal GND - 01: type ZB backlight (option): If the unit is supplied with a power supply type PD, PF or PM, the backlight supply is integrated, in that case the following text is not applicable.. To supply the F133-P with power (>24V DC) for the backlight, use the terminal connectors below: BACKLIGHT TYPE PX Fig.
  • Page 31: Intrinsically Safe Applications

    Page 31 INTRINSICALLY SAFE APPLICATIONS 5.1. GENERAL INFORMATION AND INSTRUCTIONS Cautions  Mounting, electrical installation, start-up and maintenance of this device may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.
  • Page 32 Page 32 Label information (inside and outside the enclosure) Indicated labels on the back cover (below) and on the inside cover (right) show the type labels for intrinsically safe certified units. For details on usage see the separate “Fluidwell F1..-..-IX Documentation for Intrinsic Safety”.
  • Page 33 Page 33 Explanation Intrinsically Safe options: Type PD - Intrinsically Safe power supply and sensor supply - Terminal GND- 01 and 11. erminal SENSOR SUPPLY output voltage is according Input voltage: 3 - 8,2V the input voltage; internally 16-30V DC linked with terminal 01.
  • Page 34 Page 34 5.3. CONFIGURATION EXAMPLES INTRINSICALLY SAFE APPLICATIONS Configuration example IIB /IIIC F133-P-CT-OT-(PD)-PX-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL I.S. Certified  Isolator TTL to: = max. 30 V e.g. PC RS232 = max. 250 mA RS422 = max.
  • Page 35 Page 35 Configuration example IIB/IIIC and IIC - F133-P-(CT)-OT-PD-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL Please note: communciation type CT is allowed in IIC applications. I.S. Certified  Isolator TTL to: = max. 30 V e.g.
  • Page 36 Page 36 BATTERY REPLACEMENT INSTRUCTIONS Safety Instructions  Fire, explosion or severe burns may result if mistreated. Do not recharge, crush, disassemble, incinerate, heat above 100°C (212°F) or expose contents to water.  Mounting, electrical installation, start-up and maintenance of this device may only be carried out by trained personnel authorized by the plant operator.
  • Page 37: Maintenance

    Page 37 MAINTENANCE 6.1. GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ...
  • Page 38: Appendix A: Technical Specification

    Page 38 APPENDIX A: TECHNICAL SPECIFICATION GENERAL Display Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB LCD with green LED backlight.
  • Page 39 Page 39 Sensor excitation Type PB / PC / PX 3V DC for pulse signals and 1.2V DC for coil pick-up. Note: This is not a real sensor supply. Only suitable for pulse sensors with a very low power consumption like coils (sine wave) and reed-switches. Type PD 1.2 / 3 / 8.2 / 12 and 24V DC - max.
  • Page 40 Page 40 OPERATIONAL Operator functions Functions  start / interrupt and stop the delivery,  total can be reset to zero. Displayed information  delivered total  flowrate  accumulated delivered total (7 digits)  number of delivies executed  total and accumulated total.
  • Page 41: Appendix B: Problem Solving

    Page 41 APPENDIX B: PROBLEM SOLVING In this appendix, several problems are included that can occur when the F133-P is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check:  Signal selection SETUP - 51, ...
  • Page 42: Appendix C: Communication Variables

    Page 42 APPENDIX C: COMMUNICATION VARIABLES GENERAL The F133-P is fitted with the Modbus communication protocol and can be equipped with various physical interfaces like RS485 and RS232 (please see device datasheet for available options). The tables below show the various variables that can be accessed through the communication. Currently, the function codes supported are: ...
  • Page 43 Page 43 SETUP VARIABLES OF THE F133-P REGISTER TYPE VALUE / REMARKS VARIABLE ADDRESS TOTAL REGISTERS 40033 unit uint16 0=none 0x020 3=kg 4=lb 5=gal 6 =usgal 7=bbl 40034 decimals uint16 0…3 0x021 40035 K-factor uint32 1...9999999 0x022 Representation: 0.000010…9999999 depending on variable: decimals K-factor. 40038 decimals K-factor uint16 0…6...
  • Page 44 Page 44 REGISTER TYPE VALUE / REMARKS VARIABLE ADDRESS CONTROL REGISTERS 158d 40159 delay time uint16 0.1 … 999.9 0x09E steps of 0.1 second 195d 40196 begin time uint16 0.1 … 999.9 0x0C3 steps of 0.1 second 197d 40198 start-up time Uint16 0.1 …...
  • Page 45 Page 45 REGISTER TYPE VALUE / REMARKS VARIABLE ADDRESS COMMUNICATION - BATCH REGISTERS 221d 40224 batch mode uint16 0=invalid 5=startup 128= time out 0x0DD 1=idle 6=dispense 129=alarm lo 2=test 7=pause 130=alarm hi 3=delay 8=stop 131=dispense 4=begin 9=finish 1=3=max error 132=error 157d 40158 batch action...
  • Page 46: Appendix D: Declaration Of Conformity

    Page 46 APPENDIX D: DECLARATION OF CONFORMITY FW_F133-P_M_v0601_01_EN...
  • Page 47: Index Of This Manual

    Page 47 INDEX OF THIS MANUAL accumulated Total flowrate alarm active output Installation actual settings Intrinsic safety alarm delay time Intrinsically Safe options analog IP classification output loop powered. keys backlight flowrate alarm density main-function Backlight maintenance batch counter 8, 14 model batch total 8, 14...
  • Page 48 Page 48 LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE : DATE : 1 - TOTAL Enter your settings here 11 unit 12 decimals 0000000 13 K-factor 0000001 14 decimals K-factor 15 batch max 16 batch total 17 batch count 2 - FLOWRATE 21 unit 22 time /min...
