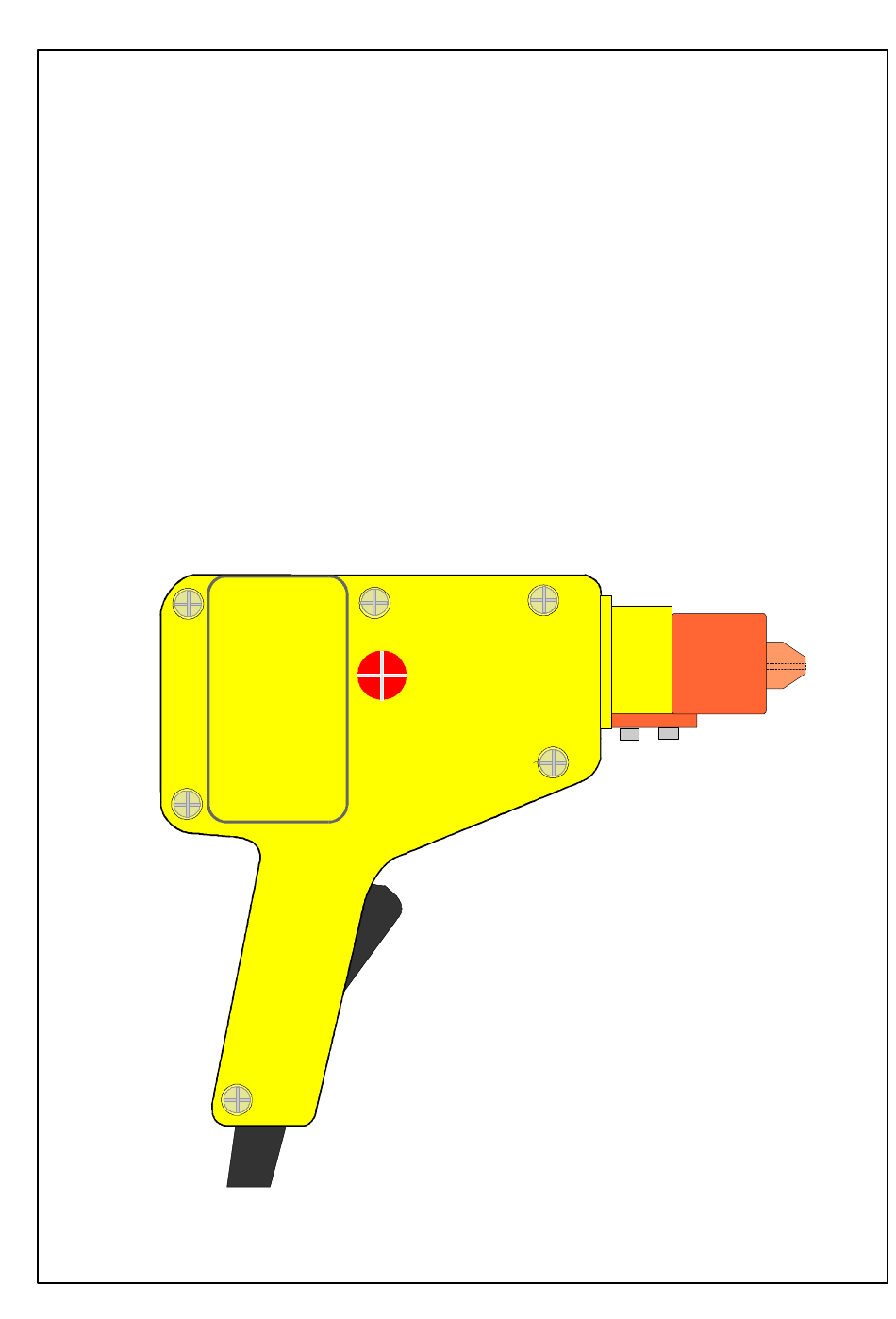

- Page 1 Operation Manual BEULENFIX...
- Page 2 Introduction: Dear customer, This product complies with all the provisions of the directives and standard documentation corresponding to safety laws. For safe operation and in order to avoid damage or injury, we recommend you read this manual with the utmost care and keep it available for important information. Warranty does not extend to accidents or damage or misuse, due to non-observance of this manual.
-
Page 3: Operation
Operation: The Beulenfix welding gun can be connected to any safety plug or corresponding safety machine, provided it is protected by a 16 A slow fuse. We recommend that a separate socket be installed by a specialist, in case the fuse cuts out in the future. -
Page 4: Maintenance
Application: 1. Remove primer and finishing coats of paint from the damaged area and clean the sheet metal until bright, 2. Insert welding studs 2,0 mm into the electrode tip 3. Put the outer and the inner electrode with stud onto the prepared spot 4. - Page 5 Spare parts: Welding gun: ORIGINAL _Puller: Seite 5...
- Page 6 Technical Data: Welding gun Type BEULENFIX “B” Mains frequency V 50-60 Hz Power supply Secondary Volt Operation time Welding capacity 5 x 0,5 s/minute Fuse 16 A/ t (slow blow) Isolation class Type “B“ Protection class Safety transformer Seite 6...
-
Page 7: Eg Declaration Of Conformity
Industriegebiet Ost 78609 Tuningen Description Resistance welding transformer Typical description BEULENFIX B This product complies with the regulations according to : 73/23/EWG with alterations ”Richtline des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaaten betreffend elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannunsgrenzen”.
