Summary of Contents for Elechelf GD9215AD20

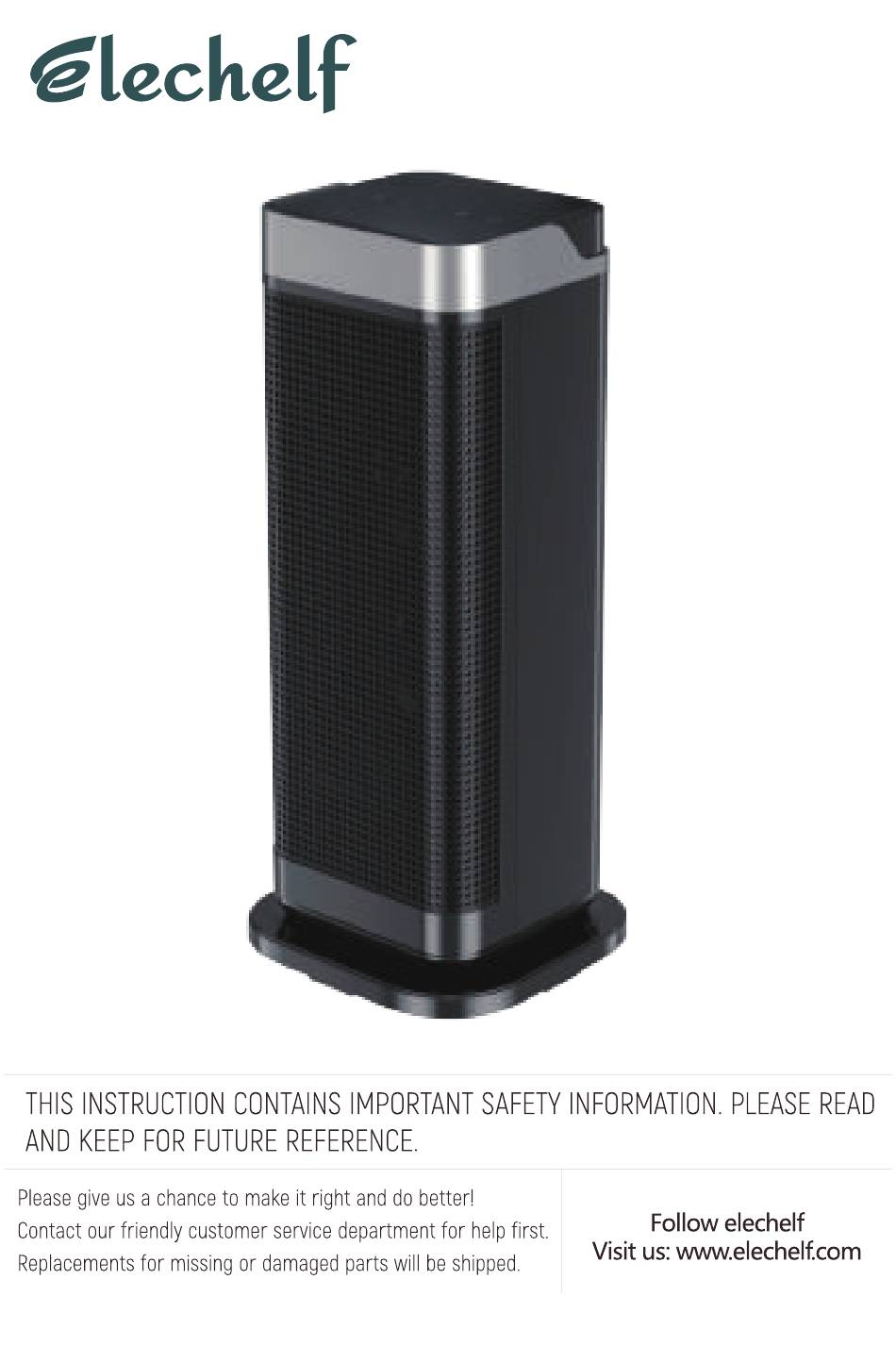

- Page 1 USER MANUAL PTC SPACE HEATER MODEL:GD9215AD20...
- Page 3 Please do not disassemble the heater. Do not operate the heater with a damaged cord or plug, nor after the heater malfunctions, has been dropped, or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
- Page 4 1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. Recommend to use protective gloves when moving this heater. 2. Keep combustible materials such as cloth and papers at least 3 feet away from the mess of the heater and keep them away from the sides and rear.
- Page 7 Heat Switch of Fan Only/LO (900W) HI Start or Stop Heater’s (1500W)/ECO Mode 90° Oscillation Press °F + to Increase Temperature Up to 99°F ON/OFF Set Timer From 1 Hour to 12 Hours Press °F- to Decrease Temperature Down to 41°F...
- Page 8 To turn the Touch Screen On or Off, on behalf of power Turn the Heater "ON" to Display the Room Temperature Switch to Fan mode...
- Page 9 Switch to LO mode to get low heat of 900W Switch to HI mode to get high heat of 1500W Switch to ECO mode to adjust the temperature...
- Page 10 Set Timer From 1 Hour to 12 Hours Start or Stop Heater's 90° Oscillation Switch to ECO mode to adjust Thermostat from 41°F to 99°F (in 1°F Increments) Note: Space Heater in ECO mode will always adjust its output based in the temperature of the ambient it is in.
- Page 11 Heat Switch of Fan Only/ LO (900W) HI (1500W)/ ON/OFF ECO Mode POWER MODE Start or Stop Heater’s Set Timer From 90° Oscillation 1 Hour to 12 Hours TIMER Press °F- to Decrease Press °F + to Increase Temperature Down Temperature Up to 99°F to 41°F DOWN...
-
Page 12: Tip-Over Protection
Tip-over Protection When the heater is tipped forward or backward, or knocked down by accident,the tip-over switch in the bottom will activate and shut off the heater automatical- ly.So please put it on a flat surface to use the heater. Tips:after tipping over, if you want to continue using it, place it horizontally, then turn on the power switch and reset the mode you want. - Page 14 1. Be sure the heater is plugged in the electrical outlet well, and the outlet is working. 2. Check for any obstruction. If you find any obstruction, turn off and unplug the heater and wait at least ten minutes for it to cool. Carefully remove the obstruction.
- Page 15 1. Turn the heater off and unplug it. Allow it to cool. 2. Use a dry cloth to clean the external surfaces of the heater. NOTE: DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION. 3. Pack the heater in its original container and store it in a cool, dry place. 4.
- Page 17 GD9215AD20 Model No. Voltage 110V-120V Frequency 60Hz Height( inch) 7.2X6.9X16.5 Weight(lb) Oscillation 90° Noise Ultra quiet Tip-over Protection/ Over- Safety Protection heat Protection Mode Options Mode,LO(900W);HI(1500W); Indoor use/bedroom/ Usage scene office/living room Temperature Range 41 F ~99 F (ECO MODE)
- Page 18 It will be much appre- ciated if you contact us for a solution first. This is a big help to improve our products and after-sale service. Email: service@elechelf.com Even after the warranty period, we will continue...
- Page 19 E-mail: service@elechelf.com Manufacturer: Ningbo Hailian Electric Appliance Technology Co.,Ltd. Address: Xinpu industrial east zone, Xinpu Town, Cixi City, Zhejiang, China MADE IN CHINA...
- Page 20 ww w. e le c h el f . co m...
Need help?
Do you have a question about the GD9215AD20 and is the answer not in the manual?
Questions and answers
How do you get to read tep in F and not C
To read temperature in Fahrenheit on the Elechelf GD9215AD20, use the ECO mode, which allows adjustment and display of the thermostat from 41°F to 99°F in 1°F increments.
This answer is automatically generated
My unit did not come with a remote.
Yes, the Elechelf GD9215AD20 unit comes with a remote.
This answer is automatically generated
Just opened and this unit doesn't work. Stays on 62 remote doesn't work like it should! Please call me or give me a number to troubleshoot or I’ll return!!
@Theresa Graham
