Summary of Contents for AHWOO Laser Warrior

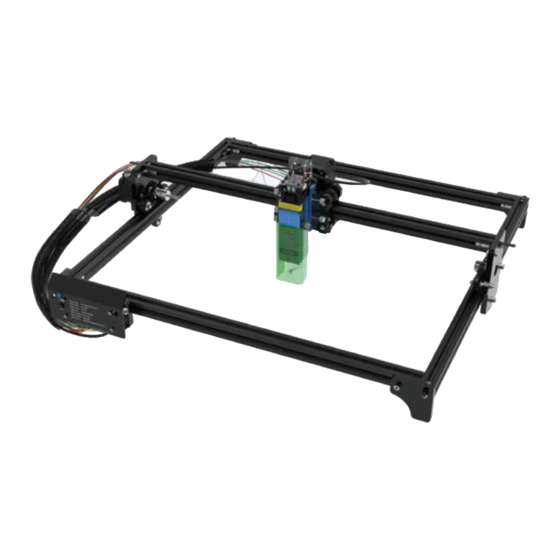

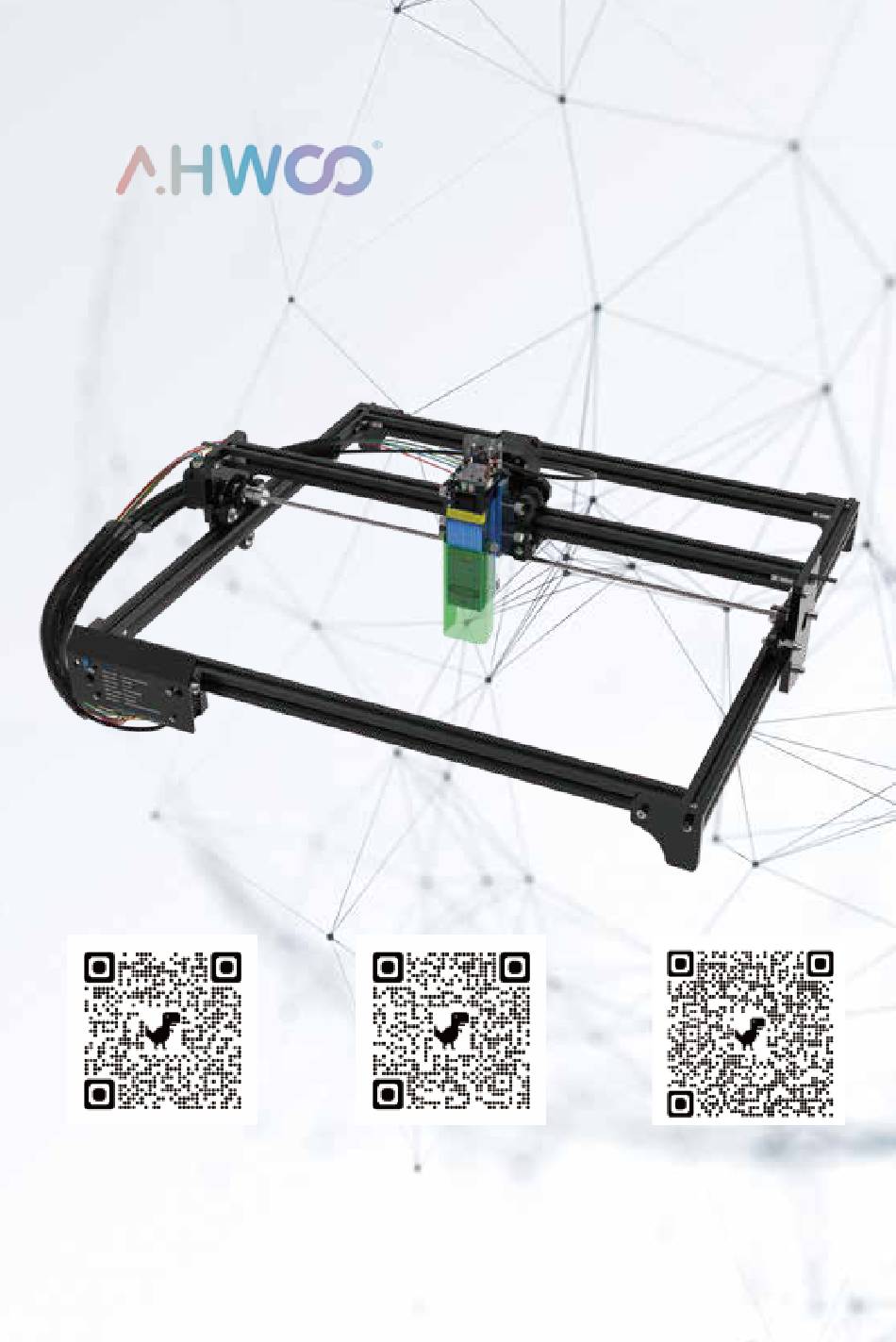

- Page 1 Laser Warrior User Manual Model NO: LE4540 https://ahwoo.store/blogs/download/documentation https://youtu.be/Fxwq6sHp2VI https://www.facebook.com/groups/658864005122600 Laser Warrior Facebook Group YouTube Video Documentation Installation Steps...
-
Page 2: Parts List
PARTS LIST Aluminum Profile (A) Aluminum Profile (B) 517mm, X-Axis Assembly*1 Y-Limit Switch Assembly*1 517mm, Both Ends Tapping *2 Both Ends Are Not Tapped *2 Hexagon Socket Hexagon Socket Foots*3 Control Panel*1 Screws M5-20 *4 Screws M5-12 *6 M5-6 Machine M5 T Type Nuts*10 Synchronous Belts*2 Angle Slot M4-20E*4... - Page 3 ① Aluminum profile (B) 517mm Aluminum profile (A) 517mm Aluminum profile Angle slot M4-20E*1 (A) 517mm Aluminum profile (A) 517mm Aluminum profile (B) 517mm Aluminum profile (B) 517mm 1. First assemble the frame. As shown in the figure, the left and right 2.
- Page 4 3: One end of the synchronous belt is fixed as shown in the figure. 4: As shown in the figure, the timing belt is fixed and the remaining timing belts are fixed in the same way. ④ Foot*1 Hexagon socket screw M5-20*1 M5 T type nut*1 Hexagon socket...
-
Page 5: Dear Valued Customer
(Y-axis travel resolution in steps per millimeter.) Dear Valued Customer Thanks you for purchasing AHWOO Product, We hope you have a good experience. If you are satisfied with our products, could you please do us a favor to write a good rexiew and share your experience. -
Page 6: Safety Guide
2. When the laser engraver is in use, wearing laser safety glasses is mandatory for the operator as well as any person in the proximity of the machine. Our Ahwoo Laser Warrior ships with a pair of goggles but additional laser safety glasses can be purchased commercially.
