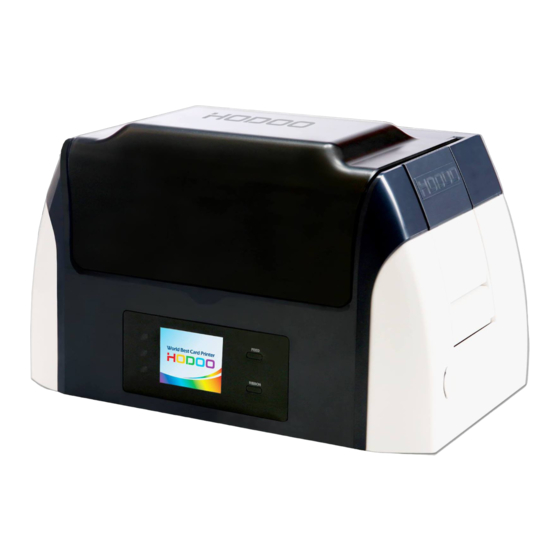

siss Technology HODOO SIP-30 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HODOO SIP-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for siss Technology HODOO SIP-30

  • Page 2 SISS Technology Inc. SISS Technology Inc. has no responsibility or liability for any transcriptional errors or technical inaccuracies that may appear in this manual including the product and are can be changed at any time without prior notice.

  • Page 3: Table Of Contents

    Contents Greetings..........................Contents..........................Precaution for Safety ......................Preparation before operation....................1. Preparation 1.1 Intorduction of product ....................1 1.2 Name and function of each part (Front) ................2 1.3 Name and function of each part (Rear) ................3 1.4 Name and function of each part (LCD)................4 2.

  • Page 4: Precaution For Safety

    Precaution for Safety Precautions for safety Users must operate the product after they read precautions very carefully and know thoroughly. The symbols of precautions contain important contents and are specified to Warning and Caution. There is no responsibility of our company for any accidents and/or damages of products owing to the ignorance of precautions in using.
  • Page 5 A breach of this instruction may cause serious or slight wound, and may bring on damages of product and property. In relation to Power Do not use damaged power cord, Plugs, and loose outlets. Do not pull out the cord or touch the plugs with wet hands. Do not bend the power cord excessively or make it damaged by pressing with heavy stuff.
  • Page 6 Precaution for Safety A breach of cautions may cause serious or slight wound, and may bring on damages of product and property. In relation to installation Do not install at unstable place. Keep the product out of the direct rays of the sun. It may cause defect of the product. In relation to maintenance Do not separate the cover or protection devices.

  • Page 7: Preparation Before Operation

    Preparation before operation Be sure to check whether following components are included in the product before installation. SIP-30 Card Printer SIP-30F Card Printer Hopper Guide Ribbon Cartridge Power Adapter (Option) (24V, 2.5Am) Power Cable CD-ROM USB Cable (for USB 2.0) for installation Please install the Printer by insuring sufficient space and keep it out from unstable, humid, direct rays of the sun, and the place closed to air conditioner or heater.

  • Page 8: Preparation

    Preparation Preparation Introduction of product General introductions and explanation of special features of the product are needed. FRONT Cover TPH Head Smart Card Contact (Option) Guide Ribbon spindle MS Head (Option) Hopper Color Sensor Stacker Button REAR Serial Port Power Switch Ethernet port Multi USB port USB port...

  • Page 9: Name And Function Of Each Part (Front)

    If users learn the name and function of each part before installing Name by function of Printer (Front) a printer, users can use it more easily. HODOO SIP-30/30F have color LCD, so users can know the condition of printer easily.

  • Page 10: Name And Function Of Each Part (Rear)

    Preparation Features by function of Printer (Rear) Name Description of function Power Switch Turn on or off the Power. Power adapter DC 24V (2.5A) is used. Using substandard Adapter may cause the breakdown Jack of the device. USB port USB port. This product support both USB 1.1 and 2.0. Multi USB port It is extension USB Port.

  • Page 11: Name And Function Of Each Part (Lcd)

    Features by functions of Printer (LCD) Button LCD View 2.0 inch Color LCD. Condition Function Green Printer Power ON Printer Power OFF Orange Twinkle Data Sending/Receiving Normal condition Twinkle Error occurs - Cut of ribbon (in case of checking End Mark) - Other errors occur Button Button...

  • Page 12: Installing Ribbon Cartridge

    Installing Ribbon Cartridge Installing Ribbon Cartridge Replacement method of color ribbon Open the cover and after pulling out of the TPH fixing pin Take the TPH Head up. and remove expired ribbon cartridge as below. TPH Head Cover TPH fixing pin Ribbon cartridge Fix a new cartridge at ribbon When the installation of new color cartridge is...

  • Page 13: Replacement Method Of Black & White Ribbonn

    Replacement method of black & white ribbonn Open the cover and after pulling out of the TPH fixing pin Take the TPH Head up. and remove expired ribbon cartridge as below. TPH Head Cover TPH fixing pin Ribbon cartridge When the installation of new Black-and-white cartridge is completed, take TPH Head down insert the fixing pin accurately after pulling TPH fixing pin forward.

  • Page 14: Installing Hopper Guide & Flip-Over

    Installing Hopper Guide & Flip-Over Installing Hopper Guide & Flip-Over Installing Hopper Guide Install the Hopper Guide after putting the After finish installing of Hopper Guide, lift Hopper downward like following figure. the lid up. Hopper Guide Insert Cards to Hopper Guide. Put the lid back down.

  • Page 15: Installng Flip-Over (Sip-30F)

    Installing Flip-Over (SIP-30F) Flip-Over module is for dual-sided printing.

  • Page 16: Installing The Program

    Installing the Program Installing the Program Connecting to the computer Power Switch USB Port Ethernet Port Power Adaptor Jack Multi USB Port Serial Port Connect the product to the computer by using USB cable provided in purchasing. This product is enabled to connect to the computer via a USB cable only. Connect the power.
  • Page 17 After clarifying the port shape of USB cable, connect the cable. Connect another side of USB cable to one of USB port of computer. Clarify the shape and direction of port and then connect it. The location of USB port at computer may vary from each computer. Precautions before connection with the computer : Leave the printer turned off before connection and then connect together.

  • Page 18: Installing Window Program

    Installing the Program Installing window program After connecting power, USB cable, and installation, you must install programs on the computer. You must install programs from the CD-ROM included in the printer. System requirements Check mi n i m um requi r ements for i n stal l a ti o n. O/S requirement: Wi n dow 2000 / Wi n dow XP / Wi n dow VISTA / Wi n dow 7 Processor: Penti u m III 1GHz or hi g her (Penti u m IV 1.5GH z or hi g her i s recommended) Memory : 128MB or hi g her (512MB or hi g her i s recommended)
  • Page 19 After start installing program of printer driver, select the language. If you click “OK” button, the chosen language is installed. Click “Browser” button and set destination folder. If you click “Install” button, the program is installed.
  • Page 20 Installing the Program Select “Typical installation for a local printer(USB)”. Click “Next” button and install it. Click “Next” button.

  • Page 21: Setting Printing Preference In Windows

    Setting printing preference in Windows Card tap Card Setting Copies(C) : Select printing quantity. Maximum 999 sheets are available. Orientation : Select direction of printing. Output Card : Select Card output location after completion of printing. Auto Loading(A) : Setting for continuous loading of card stacked on hopper. In case of printing large quantity of cards continuously, select this option.
  • Page 22 Installing the Program Image tap Image Correction Brightness : Express dark images brighter. Contrast : Express dark side darker, bright side brighter. Red : Set Red parts of images. Green : Set Green parts of images. Blue : Set Blue parts of images. Image Effect Composite : In case that the printing energy concentration is concentrated, it disperse energy concentration.
  • Page 23 Output Tap Printing It sets printing direction, quality and location value. Rewrite Card It’s for rewrite card. In case of rewrite card, remove the installed ribbon and use it. In case using rewrite card, please make sure to set the kind of ribbon as “No Ribbon”. Vamish It sets lamination to protect the printed surface of a card.
  • Page 24 Installing the Program Tools tap Track Type It’s related to MS. It appoints data and track for encoding. Choose LOCO or HICO. Macro Processing Macro Encoding : For MS encoding in application program. PreFix, SurFix : It sets lamination to protect printed surface. Default : It makes all value default.
  • Page 25 About tap If you click the image (Item ), you can access to the website of SISS Technology Inc. Item displays version of each Printer driver.

  • Page 26: Other Information

    Other Information Other Information Cleaning Printer Maintaining the printer in good operating condition is essential to having a reliable well running machine. You have to clean the printer regularly so as to maintain the high printing quality and use longer if you use at dusty place. Cleaning outside of Printer For best result, wipe out slowly to one direction with soft, clean cloth after spraying water 4~6 times on it in the state of power Off.
  • Page 27 Cleaning inside of Printer Particles or dust can pile up inside of Printer during printing. It may cause spots or bad quality of printing. Also particles may cause the damage of Printer Head during printing. Self Cleaning-Clean Card Self Test Mode is executed if you insert Clean Card to Hopper and press "Power On + Feed button"...

  • Page 28: Replacement Of Supplies And Purchasing Guide

    Other Information Cleaning some parts. If you would like to clean certain inside parts, clean dirty parts with cotton buds with alcohol. Replacement of Supplies and purchasing guide Some parts of the product have a certain replacement period as consumptive parts. If you change it within warranty period, you can lengthen the life of printer to semi-permanent.

  • Page 29: Troubleshooting

    Troubleshooting In case bad operating condition has occurred. Possible cause(s) Problem Corrective action(s) The printer doesn't Power was Off. Check condition of power. work. Check condition of USB cable connection. USB cable was not connected. Put cards in again and retry. No card in Hopper.

  • Page 30: In Case Bad Operating Condition Of Ms Has Occurred

    Troubleshooting In case bad operating condition of MS has occurred. Possible cause(s) Problem Corrective action(s) Errors in MS Wrong setting of Check whether LOCO/HICO command is in order before Read/Write occur LOCO/HICO. doing MS Write. Also write on HICO card with LOCO. frequently.

  • Page 31: Error Codes And Corrective Action

    Error codes and corrective action Code list: hexa-decimal (decimal) Problems Corrective action(s) Error Code Normal 0x00(0) Normal Card jams in transferring.. By pressing Feed button Remove card inside of the Printer.. 0x15(21) No card in the Printer. Remove card inside of the Printer.. 0x16(22) Error in EEPROM write Error remark 1)
  • Page 32 Troubleshooting Code list: hexa-decimal (decimal) Problems Corrective action(s) Error Code Normal Normal 0x80(128) Ineffective handle 0x81(129) Check power, USB cable.. Devices not found Check power, USB cable.. 0x82(130) Devices can not open 0x83(131) Check power, USB cable. File Seek error Cannot find files in using contemporary file.

  • Page 33: Specification Of Product

    Specification of product Printer Printing method Thermo electronic Printing speed Black : 1,300 card/Hour, Color : 150 card/Hour Resolution 300dpi Input Hopper 100 card/Folding type hopper Output Hopper 50 card Printed sides SIP-30(Single-sided printing) / SIP-30F(Dual-sided printing) Specification of Card ISO CR-80 Standard Thickness of Card 0.25mm ~ 1.6mm...

  • Page 34: Card Dimension

    Card Dimension ISO Standard Card Dimension ISO Standard Magnetic Stripe Card Dimension ISO Standard Smart Card Dimension...

  • Page 35: Certificate Of Warranty

    Certificate of Warranty For getting service Please contact SISS Technology Inc. for service. TEL : +82-2-3661-2446 FAX : +82-2-3661-2447 About warranty The warranty is valid for ( ) year( ) from the date of purchase for any defects in production or disorder of the product under normal use.
