Raywav Pro Manual

Raywav Pro manual

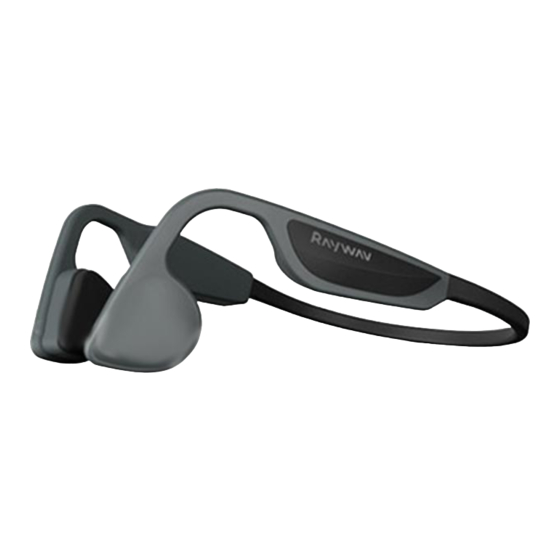

Thanks for purchasing "Raywav Pro" Stereo bone conduction headphones!
For more information, please visit our website: http://www.raywav.com

Product Overview

⑤
④ ③ ② ①
⑥
⑦
① Power On/Off ② Mode Key ③ Volume + ④ Volume -
⑤ LED Indicator ⑥ Micro-USB Charging Port ⑦ Microphone

How to wear the headphones?

As shown in below picture, put the
headphones around your head with the speakers
rubbing against your temporal bones rather than
lay it on top of your ears. If your ears can' t keep
the headphone, you can find two clasps in the
package, which will help you to fix the headphone.
The way to ear the headphone with the clasps are
shown as below picture (the dotted line is the goggles belt) :
Please follow the steps to wear the headphone as:
1. Before wearing, please install the clasps to each arms of the
headphone ( There are L and R marks in the bottom of each clasp )
2. Then, wear a swimming cap and swim glasses.
3. Finally, put on the headphone around your ears and push the swim
glasses' belt into the groove of the clasps.
How to set up Raywav Pro?
1. Power On/Off
Press key ① and keep it pressed for 5 seconds, the headphone will
be On or Off. After power on, the headphone will enter the Bluetooth
mode by default.
2. Pairing & Connection
When the headphone enters the Bluetooth mode for the first time or
the Bluetooth disconnected, the headphone will be waiting for pair,
the indicator light flashes red and blue alternately.
Then the user shall pick up the mobile phone, go to "setting" to pair
up the mobile phone with the headphone by choosing "Raywav Pro"
in the Bluetooth connection.

3. Switch between Bluetooth mode and Mp3

After power on, every time you press and hold the ② key (mode key)
for 3 seconds, the headphone will change to another mode, the
key definition of each mode is as below:
Double Double Single Long Short Long
Single Press ①
Press ① Press ② Press ② Press ③ Press ③ Press ④
Answer / End a call
Bluetooth Dial the
Call Siri
Next Song Volume + Prev Song Volume -
Mode (or Play / Pause) last call
Change
MP3 Mode Play / Pause Loop Next Song Volume + Prev Song
mode*
* Loop mode: Repeat All -> Repeat One -> Shuffle Play ->Repeat All

Charging

To charge the headphone, connect it to a PC/charger with the
Micro-USB cable.
The LED light turns from red to blue when charging is completed.
Note:
1. Please charge the headphones with DC5V charger or computers.
Do not use chargers of DC9V, DC12V, DC24V to charge the headphones.
2. It is recommended to charge it fully for first use even though
battery level may not be 0 when you unpack the headphones.
3. Do not remove or replace the battery as the replacement will
damage the headphones and render the warranty invalid.

Model of LED Light

Color
The red indicator flashes 1 time
The red indicator flashes 3 times
Red (solid)
Blue (solid)
The blue indicator is "breathing"
The blue indicator flashes fast
The blue indicator flashes once every 3 sec
Flash quickly in red and blue alternately

Packing List

Short
Press ④
Headphones 1 piece
Micro USB cable 1 piece
Volume -
User Manual 1 piece
Specifications
Play Time
Charging Time
Standby duration
Connection range
Bluetooth version
Speaker type
Speaker sensitivity
Microphone Sensitivity
Weight

Maintenance

Keep the headphones in a cool and dry place.
Status
●
Its working temperature shall be -20 ~ 55 ℃ (68 ~ 131℉).
Power on
Working in outside of this temperance may shorten its service life.
Power off / Battery Low
Charge the headphones before use if it has been kept idle for long.
Charging
●
It is forbidden to tear, pick or beat the earphone rubber parts with
Charging Complete
●
force, the damage or waterproof failure caused by this is not
In Working/Repeat All
covered by the warranty.
Repeat One Song
High volume may cause sound distortion and damage your hearing.
●
Shuffle Play
Keep the headphones away from hard and sharp objects to prevent
●
Pairing mode
damage.
Do not charge the headphones immediately after swimming as the
●
residual sweat in the charging port may damage the headphone
circuit. To reduce the risk of damage, please keep the charging port
dry before charging the headphones.

Warranty

We provide one-year warranty, from the purchase date.
6 hours
2 hours
7 days
10 m
V 5.0
Bone conduction
100 ± 3db
-40 ± 3db
45g / 1.6 ounces
