Shield Haig SH0501 Series Quick Start Manual

Time and Date Setting:

1) Unscrew the crown by rotating it counterclockwise until it is free from the case threads.
2) Pull the crown out two clicks.
3) Set the current time by rotating the crown clockwise.
4) Push the crown in one click.
5) Set the current date by rotating the crown clockwise until the correct value is displayed.
6) Push the crown in one click to commence timekeeping.
7) Secure the crown by pressing in on it to overcome the spring resistance, then rotate clockwise to
start the threads, and continue screwing the crown down until it is secured to the case.

Tachymeter Buttons:

The tachymeter buttons feature threaded collars that lock the buttons in place to prevent incidental activation and to
provide additional resistance to water penetration. To use the buttons they must be unlocked first. (see image below)
1) To unlock the tachymeter buttons, unscrew the collar by rotating it counterclockwise until it is flush with the
underside of the button.
2) To lock the tachymeter buttons, screw the collar down by rotating it clockwise until it secured to the case.

Tachymeter Functions:

Start / Stop / Reset
1) Press Button A to start the timer, press again to stop.
2) Press Button B to reset the timer / hands.
Lap Tracking
1) Press Button A to start the timer.
2) Press Button B to pause the hands of the timers
(timer will continue running).
3) Press Button B to resume (timer hands will advance to
current time).
4) To stop the timer press Button A (timer hands will stop),
press again to resume.
5) To reset the timer press Button A to stop, then press
Button B to reset the hands.

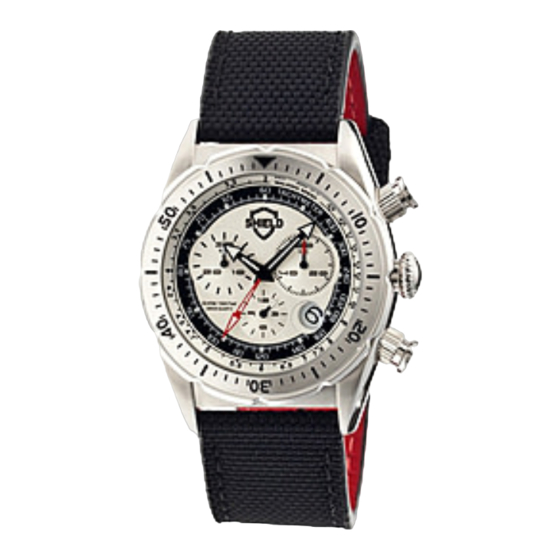

The Shield Haig Timepiece
(SH0501-SH0508 series watches)
