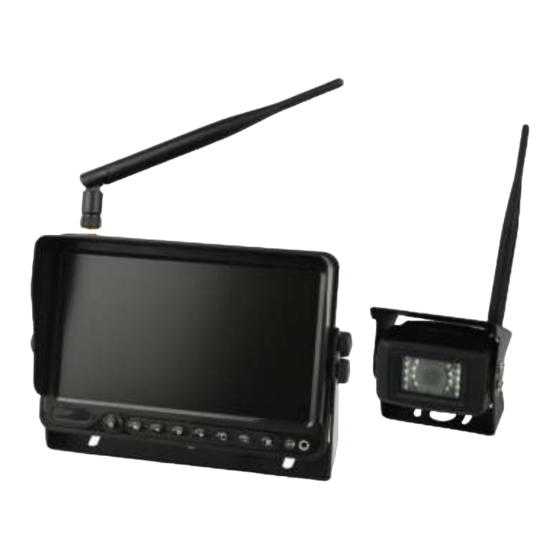

Summary of Contents for ECCO SAFETY GROUP Gemineye EC2028-WC
- Page 2 CAMERA EC2028-WC MONITOR EC7000B-WM Image 1/3 CCD Screen Size 7” (4:3) and (16:9) Controller 4 Camera Voltage Requirement 12-32V Voltage 12-32 VDC Effective Pixels 628(H) x 582(V) Power Approximate: 7W Power Consumption Mirror Imaging Yes (via Camera and Monitor Switch) Lens Size 1/4”...
- Page 3 Installation, Wiring and Function Installation: Camera Model EC2028-WC Important! Mount the camera at a location that provides the best view of the area immediately behind the vehicle. Generally, mounting locations toward the top of the vehicle provide the best field of view. Lower mounting locations reduce the field of view and increase the likelihood of damage from road spray.
- Page 4 Monitor: Model EC7000B-WM WARNING! To prevent accidental shock, DO NOT OPEN THE MONITOR CASE. Opening the monitor case will expose the inside of the monitor to conditions that could adversely affect performance. Any evidence of tampering with sealed components will void the warranty. Important! Do not expose the monitor to water, it is not waterproof.
- Page 5 Remote: Analogue Increase Analog Increase Mute Power on/off Mute Power on/off Horizontal Mirror/Normal Image Vertical Mirror/Normal Image Horizontal Mirror/Normal Image Vertical Mirror/Normal Image Volume Down Volume Up Volume Down Volume Up MENU Analog Decrease Analog Decrease Menu Menu Standard, Vivid, Soft, Standard, Vivid, Soft, Sleep Timer (0-240 mins) Sleep Timer(0-240 mins)
